Product information

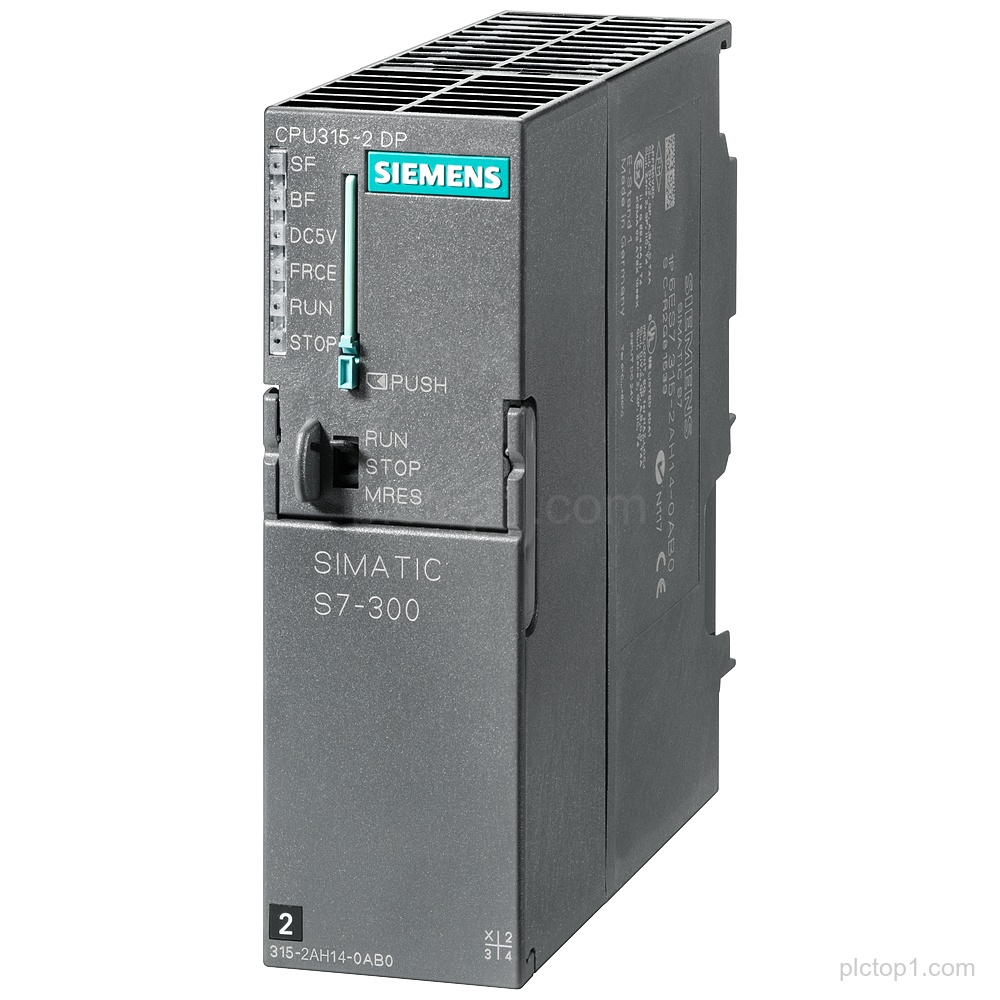

SIMATIC S7-300 CPU 315-2DP central processing unit (Part Number: 6ES7315-2AH14-0AB0) is intended for use with MPI and an integrated power supply 24 V DC.
Detailed Parameters
Product type:central processing unit
System family:SIMATIC S7-300
CPU designation:CPU 315-2DP
MPI:MPI integrated
Integrated power supply:24 V DC
Work memory:256 KB
2nd interface:DP master/device
Micro Memory Card:required
Spare part:spare part
Engineering Context
The SIMATIC S7-300 CPU 315-2DP provides a central processing unit function with MPI integrated.
The integrated power supply 24 V DC supports operation of the CPU 315-2DP in SIMATIC S7-300 system configurations.
DP operation is supported via the 2nd interface DP master/device, with Micro Memory Card required.
FAQ
1. What product family and CPU designation does 6ES7315-2AH14-0AB0 belong to?
6ES7315-2AH14-0AB0 belongs to SIMATIC S7-300 and is specified as CPU 315-2DP.
2. Which interfaces and roles are provided by CPU 315-2DP?
CPU 315-2DP has MPI integrated and a 2nd interface specified as DP master/device.
3. What power supply and work memory are specified for CPU 315-2DP?
CPU 315-2DP includes an integrated power supply 24 V DC and has work memory 256 KB.
4. Is a Micro Memory Card required for 6ES7315-2AH14-0AB0?
Yes. Micro Memory Card required.
5. Is 6ES7315-2AH14-0AB0 identified as a spare part?
Yes. It is specified as a spare part.
