Product information

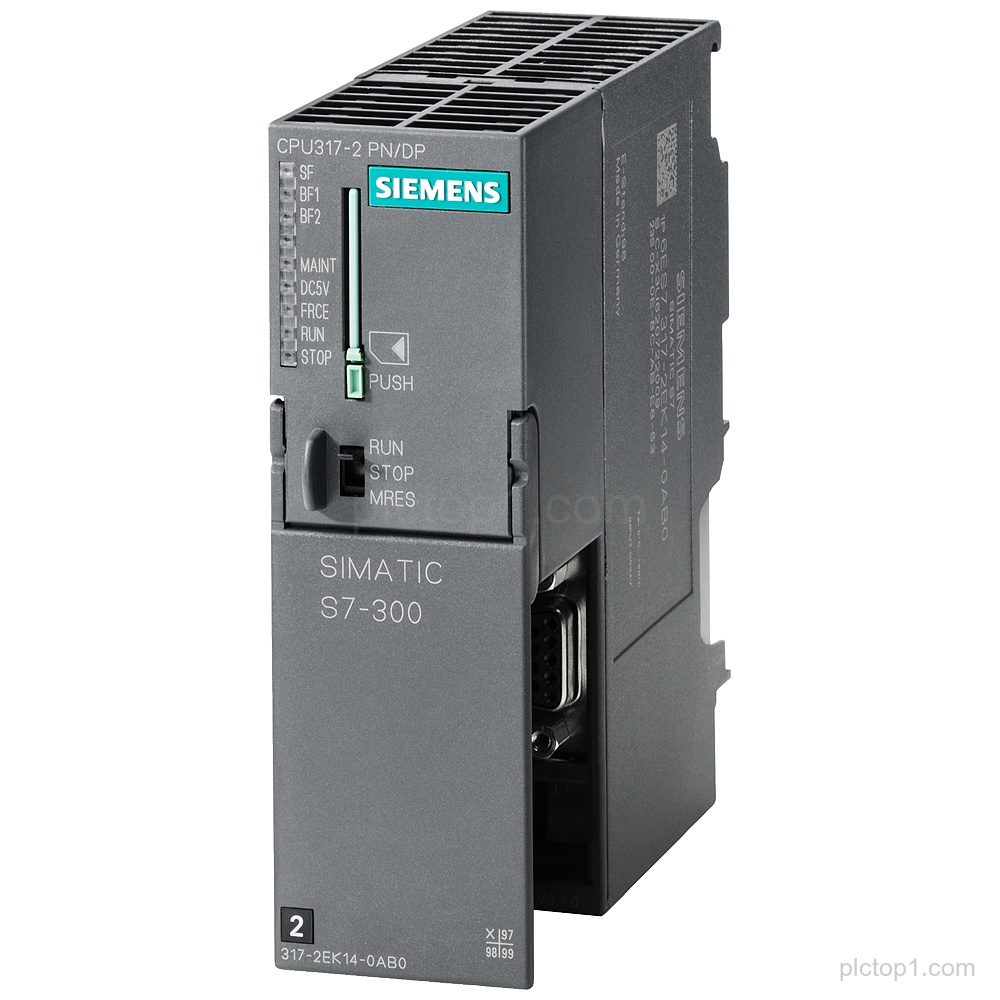

SIMATIC S7-300 CPU 317-2 PN/DP with part number 6ES7317-2EK14-0AB0 provides central processing unit functionality with 1 MB work memory and includes an MPI/DP interface and Ethernet PROFINET with a 2-port switch; a Micro Memory Card is required.
Detailed Parameters
Work memory:1 MB
CPU designation:CPU 317-2 PN/DP
1st interface:MPI/DP
1st interface data rate:12 Mbit/s
2nd interface:Ethernet PROFINET
Ethernet PROFINET feature:with 2-port switch
Memory card:Micro Memory Card required
Engineering Context
CPU 317-2 PN/DP is a SIMATIC S7-300 central processing unit with specified work memory and defined MPI/DP and Ethernet PROFINET interfaces.
The MPI/DP interface is specified with 12 Mbit/s for the 1st interface.
A Micro Memory Card is required for operation as indicated for this CPU configuration.
FAQ
1. What product family and CPU designation are associated with part number 6ES7317-2EK14-0AB0?
It is SIMATIC S7-300 CPU 317-2 PN/DP.
2. What work memory size is specified for this CPU?
1 MB work memory.
3. What interfaces are provided and what is the specified data rate for the first interface?
The 1st interface is MPI/DP with 12 Mbit/s, and the 2nd interface is Ethernet PROFINET.
4. Does the Ethernet PROFINET interface include a switch?
Yes, it is specified as Ethernet PROFINET with 2-port switch.
5. Is a Micro Memory Card required?
Yes, Micro Memory Card required.
