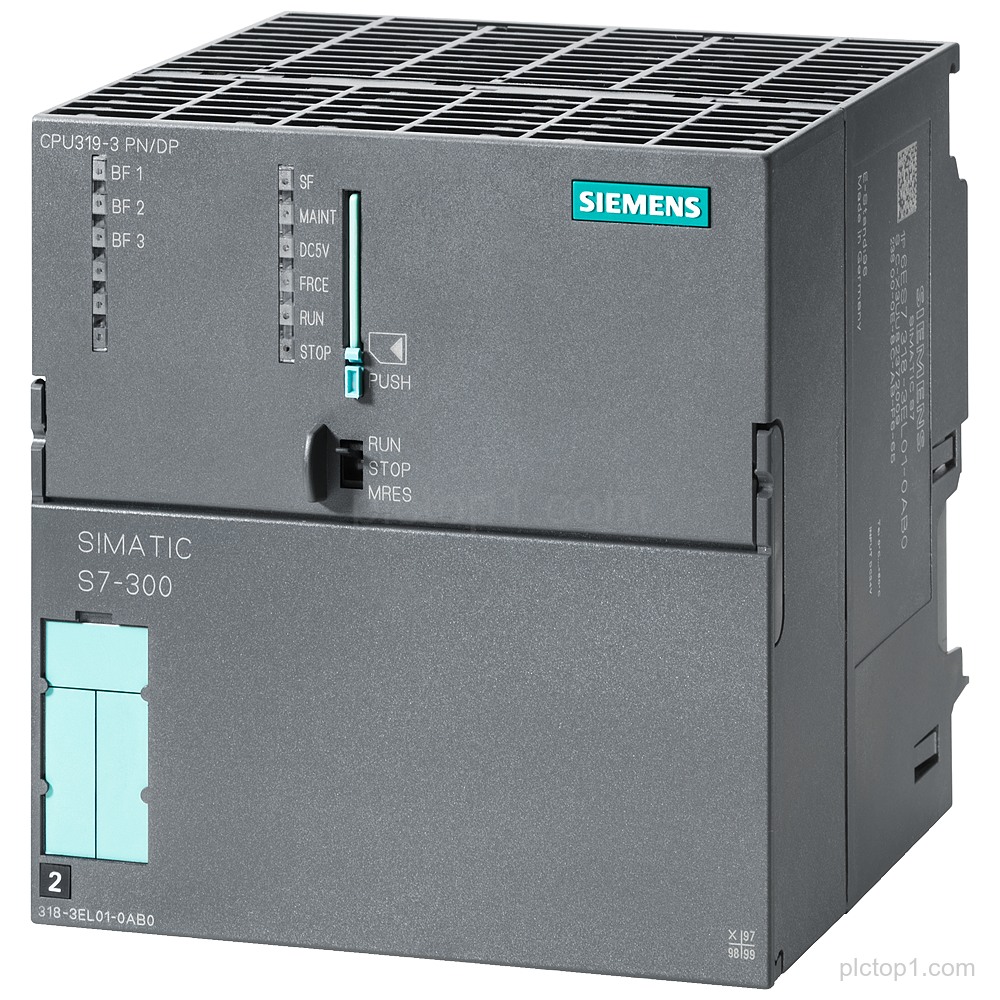

SIMATIC S7-300 CPU 319-3 PN/DP, part number 6ES7318-3EL01-0AB0, is a central processing unit with 2 MB work memory and multi-interface connectivity including Ethernet PROFINET with a 2-port switch; a Micro Memory Card is required.
Detailed Parameters
Product type:SIMATIC S7-300 CPU 319-3 PN/DP central processing unit
Work memory:2 MB
1st interface:MPI/DP
1st interface data rate:12 Mbps
2nd interface:DP master/slave
3rd interface:Ethernet PROFINET
Ethernet PROFINET switch:2-port switch
Memory card requirement:Micro Memory Card required
Engineering Context
The SIMATIC S7-300 CPU 319-3 PN/DP provides central processing unit functions with 2 MB work memory for system configuration dependent on the application.
Connectivity includes MPI/DP at 12 Mbps via the 1st interface and DP master/slave via the 2nd interface.
Ethernet PROFINET is available via the 3rd interface using a 2-port switch.
FAQ
1. What is the product family and function of 6ES7318-3EL01-0AB0?
It is a SIMATIC S7-300 CPU 319-3 PN/DP central processing unit.
2. How much work memory does the CPU 319-3 PN/DP provide?
It provides 2 MB work memory.
3. What interfaces does the CPU include?
It includes MPI/DP (12 Mbps), DP master/slave, and Ethernet PROFINET with a 2-port switch.
4. Is a Micro Memory Card required for this CPU?
Yes, a Micro Memory Card is required.
