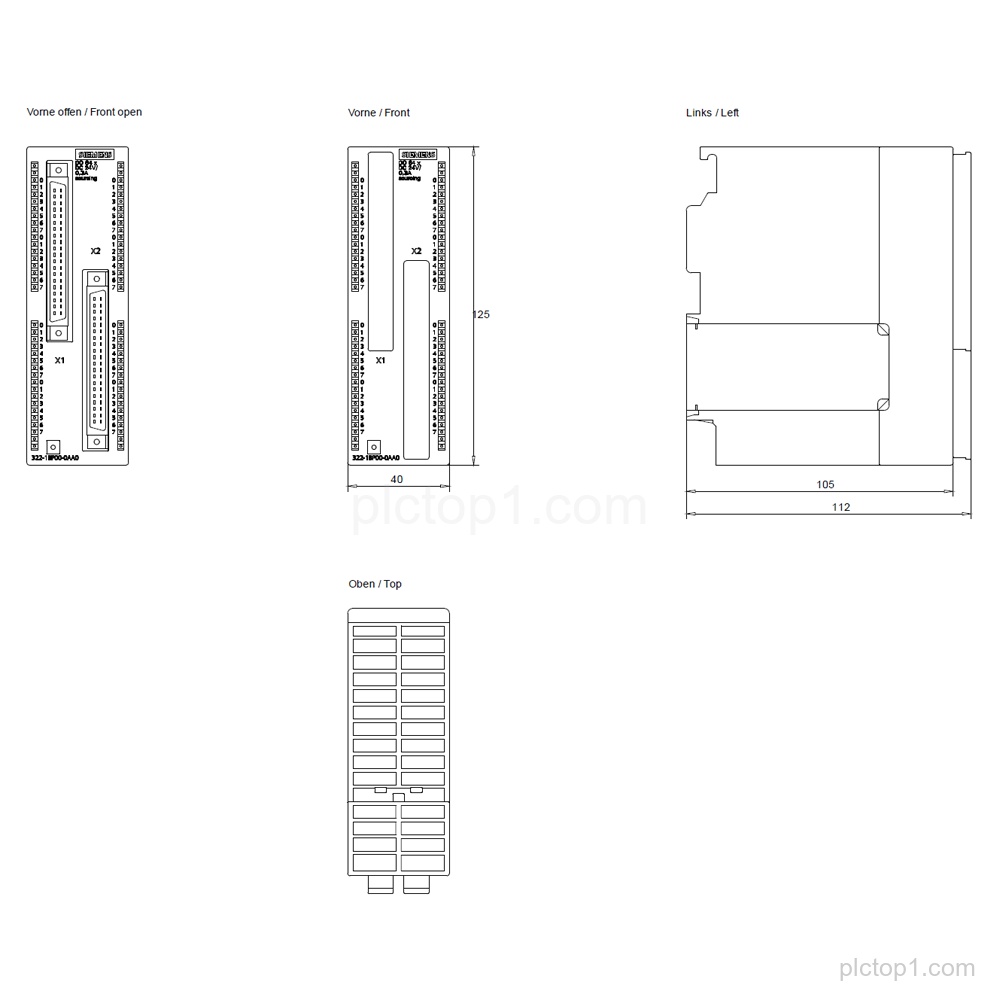

SIMATIC S7-300 SM 322 digital output module (part number 6ES7322-1BP00-0AA0) provides isolated groups of 16 with 64 DO and sinking outputs for 24 V DC.
Detailed Parameters
Module:SIMATIC S7-300 digital output SM 322
Isolation:isolated in groups of 16
Output count:64 DO
Output type:sinking output
Output voltage:24 V DC
Output current per point:0.3 A
Output total current per group:2 A/group
Module terminal blocks:8 A/module terminal blocks 6ES7392-1.N00-0AA0
Cabling requirement:cable 6ES7392-4…0-0AA0 required
Engineering Context
The SM 322 is a SIMATIC S7-300 digital output module designed for sinking outputs with isolated groups of 16.
The module provides 64 DO with 24 V DC and supports a total current of 2 A per group.
Terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 are required for the module configuration.
FAQ
1. What product family and module type does 6ES7322-1BP00-0AA0 belong to?
6ES7322-1BP00-0AA0 is a spare part from SIMATIC S7-300 and is a digital output SM 322.
2. How many digital outputs and how are they isolated?
It provides 64 DO and is isolated in groups of 16.
3. What output voltage and sinking characteristics are specified?
It is specified as 24 V DC sinking output with 0.3 A.
4. What is the total sinking output current per group?
The sinking output total current is 2 A/group.
5. Which terminal blocks and cable are required?
8 A/module terminal blocks 6ES7392-1.N00-0AA0 and cable 6ES7392-4…0-0AA0 are required.
