SIMATIC S7-300 SM 334 analog module isolated, Part number 6ES7334-0KE00-0AB0, provides 4 AI/2 AO and 12 bit conversion for 0 to 10 V applications for Pt100 and 10 kOhm measuring range.
Detailed Parameters
Product family:SIMATIC S7-300
Module:SM 334
Module type:analog module
Isolation:isolated
Number of channels:4 AI/2 AO
Resolution:12 bit
Signal range:0-10 V
For:Pt100
Measuring range:10 kOhm
Climatic range:-120-155 degrees
Connection:1x 20-pole
Order information:spare part
Part number:6ES7334-0KE00-0AB0
Engineering Context

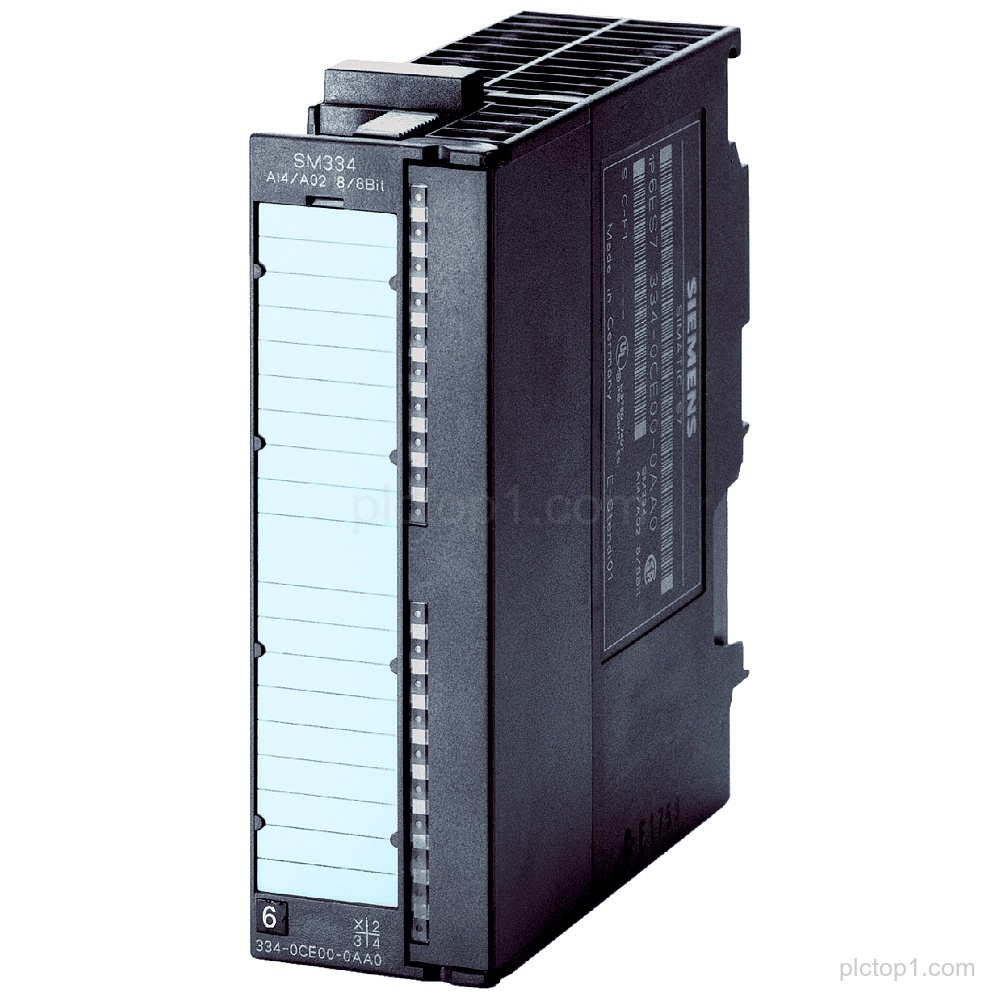

SM 334 is an analog module for SIMATIC S7-300 featuring isolated analog inputs/outputs.
The module provides 4 AI/2 AO with 12 bit resolution for 0-10 V signal range applications including Pt100.
The measuring range is specified as 10 kOhm with a climatic range of -120-155 degrees.
FAQ
1. What SIMATIC product family is 6ES7334-0KE00-0AB0 for?
It is for SIMATIC S7-300.
2. What is the function/designation of 6ES7334-0KE00-0AB0?
It is SIMATIC S7-300 analog module SM 334 isolated.
3. How many analog input and analog output channels does SM 334 provide?
It provides 4 AI/2 AO.
4. What resolution is specified for the module?
It is specified as 12 bit.
5. What signal and sensor/measuring range values are specified?
It specifies 0-10 V, for Pt100, and a 10 kOhm measuring range.
6. What connection type is specified for the module?
It specifies 1x 20-pole.
