Product information

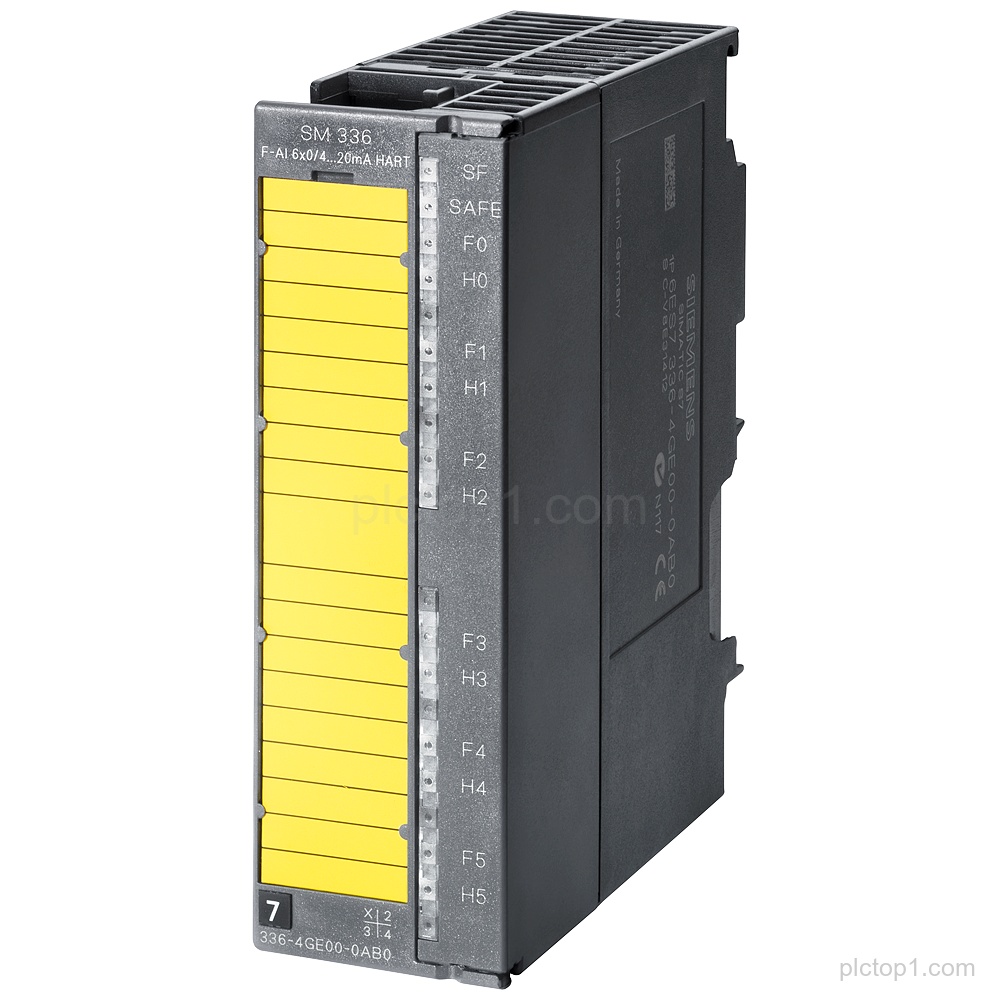

SIMATIC S7 analog input SM 336, part number 6ES7336-4GE00-0AB0, provides fail-safe analog inputs for SIMATIC Safety with HART support.
Detailed Parameters
Module:analog input SM 336
Channels:6 AI
Resolution:15 bit
Fail-safe:fail-safe analog inputs for SIMATIC Safety
HART support:Yes
Safety category:up to category 4 (EN 954-1)
SIL:SIL3 (IEC61508)
PL / PLe:PLE (ISO13849)
Connector:1x 20-pole
Spare part:spare part
Engineering Context
SIMATIC S7 SM 336 is an analog input module with 6 AI and 15 bit resolution.
The module provides fail-safe analog inputs for SIMATIC Safety and supports HART.
Safety performance is specified as up to category 4 (EN 954-1), SIL3 (IEC61508), and PLE (ISO13849).
FAQ
1. What module type is 6ES7336-4GE00-0AB0?
6ES7336-4GE00-0AB0 is a spare part SIMATIC S7 analog input SM 336.
2. How many analog input channels and what resolution are provided?
It provides 6 AI with 15 bit.
3. Does the module support HART?
Yes, it includes HART support.
4. Is it intended for safety applications?
Yes, it is specified as fail-safe analog inputs for SIMATIC Safety.
5. What safety levels are specified?
It is specified up to category 4 (EN 954-1)/ SIL3 (IEC61508)/ PLE (ISO13849).
6. What connector type is specified?
It has 1x 20-pole.
