Product information

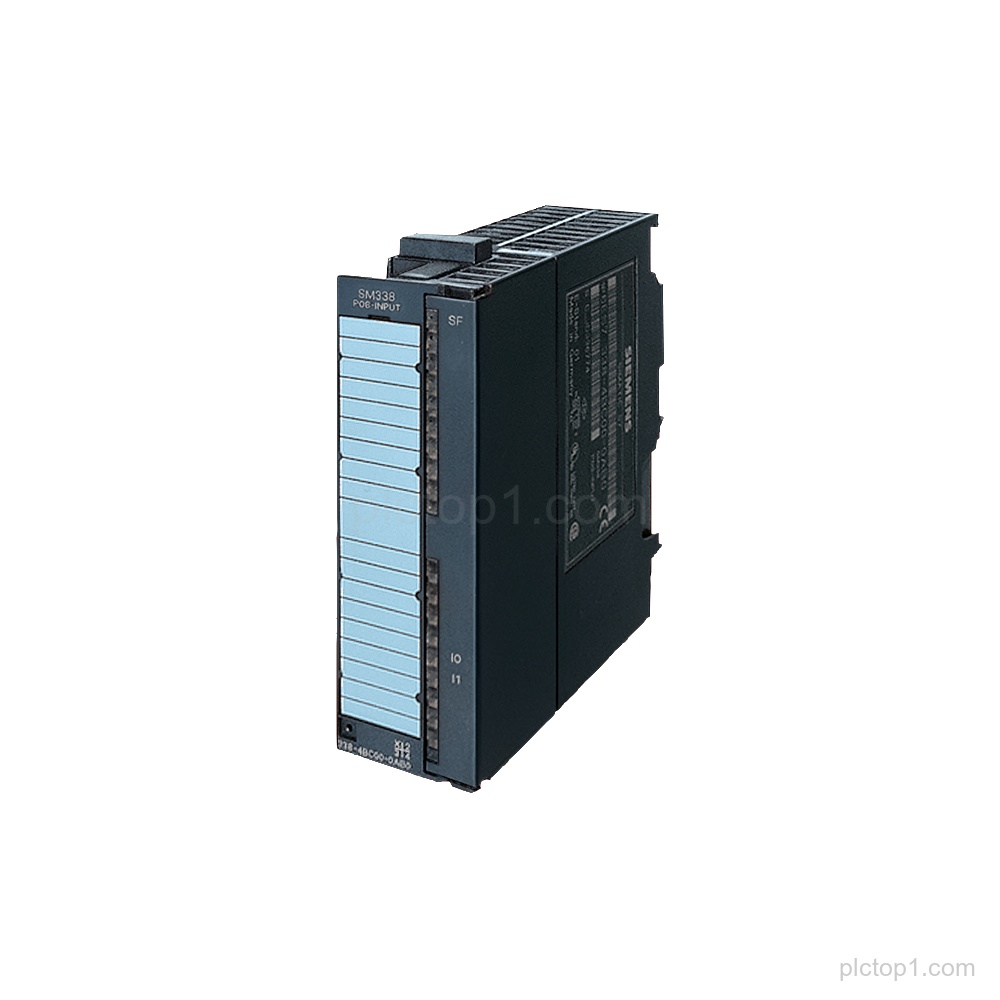

SIMATIC S7-300 signal module with spare part designation, part number 6ES7338-4BC01-0AB0, for reading the position value from 3 SSI encoders using 2 FREEZE inputs and 1x 20-pole with isochronous mode support.
Detailed Parameters
Product family:SIMATIC S7-300
Module type:signal module
Spare part:Yes
Encoder interface:3 SSI encoders
Measured data:reading in the position value
Freeze inputs:2 FREEZE inputs
Connector type:1x 20-pole
Operating mode support:isochronous mode
Engineering Context
Use this SIMATIC S7-300 signal module to read position value from 3 SSI encoders depending on the system configuration.
The module provides 2 FREEZE inputs for position value reading behavior as supported by the module.
The module supports isochronous mode via the 1x 20-pole interface.
FAQ
1. What does part number 6ES7338-4BC01-0AB0 provide?
A SIMATIC S7-300 signal module for reading in the position value from 3 SSI encoders.
2. How many SSI encoders can be connected?
3 SSI encoders.
3. How many FREEZE inputs are available?
2 FREEZE inputs.
4. Does the module support isochronous mode?
Yes, it supports isochronous mode.
5. What connector type is included?
1x 20-pole.
6. Is this item listed as a spare part?
Yes, it is indicated as a spare part.
