Product information

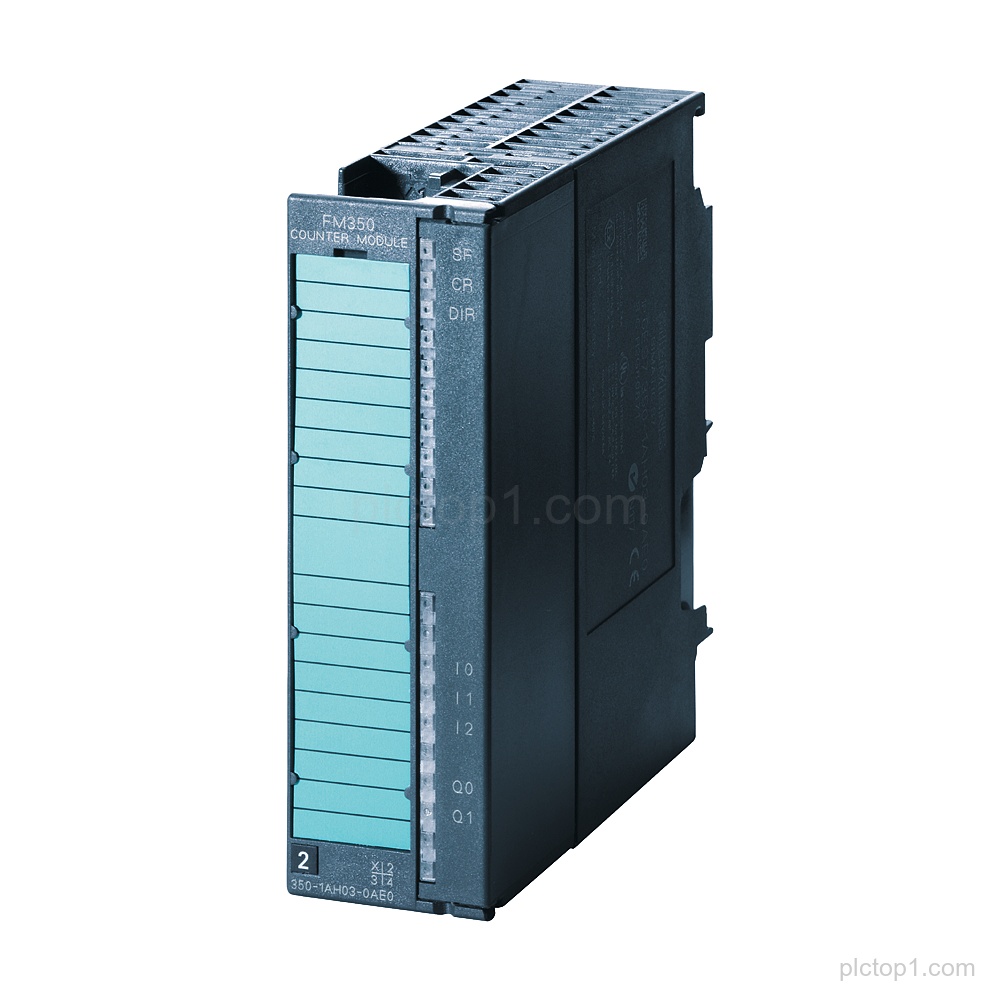

SIMATIC S7-300 counter module FM 350-1, part number 6ES7350-1AH03-0AE0, provides counter functions up to 500 kHz for connection of 5 V and 24 V incremental encoders in isochronous mode.
Detailed Parameters
Product family:SIMATIC S7-300
Module designation:FM 350-1
Module type:Counter module
Signal / encoder connection:Connection of 5 V and 24 V incremental encoders
Operating mode:Isochronous mode
Max. counter frequency:Up to 500 kHz
Channel count:1 channel
Measuring range type:incl. configuration package on CD
Engineering Context
The FM 350-1 counter module in the SIMATIC S7-300 system provides counter functions up to 500 kHz.
The module is designed for 1 channel connection of 5 V and 24 V incremental encoders operating in isochronous mode.
The measuring range types are provided including a configuration package on CD.
FAQ
1. What product family and module designation does 6ES7350-1AH03-0AE0 belong to?
6ES7350-1AH03-0AE0 is a SIMATIC S7-300 counter module designated as FM 350-1.
2. What is the maximum counter frequency for FM 350-1?
The counter functions are specified up to 500 kHz.
3. How many channels does the FM 350-1 counter module have?
The module provides 1 channel.
4. Which incremental encoder signal voltages are supported?
It is intended for connection of 5 V and 24 V incremental encoders.
5. Which encoder operating mode is supported?
The module supports isochronous mode.
6. What is included regarding measuring range types?
Measuring range types are specified as including a configuration package on CD.
