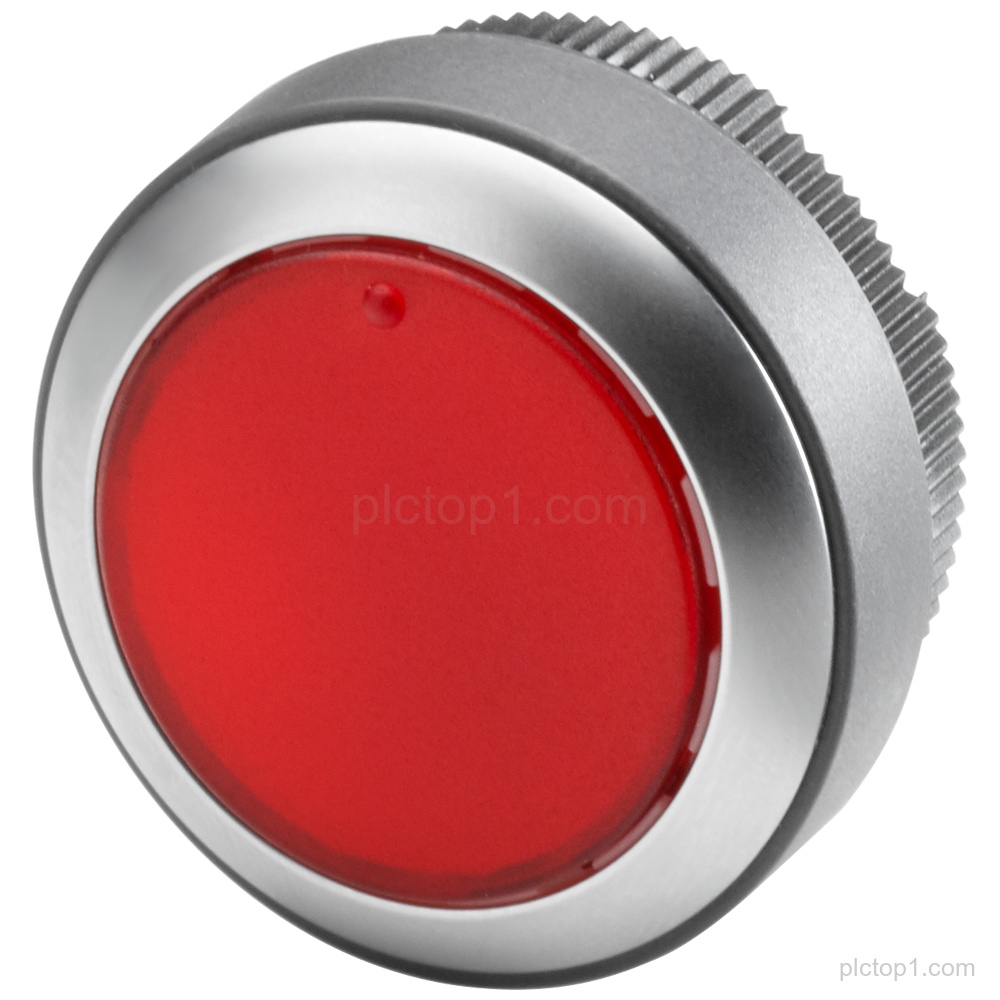

Illuminated pushbutton for Extension Units, Part number 6AV7674-1MB00-0AA0, with integrated white LED and momentary contact type, supplied with a printed circuit board and mounting accessories.
Detailed Parameters
Function:Illuminated pushbutton
Mounting type:for Extension Units
Actuator diameter:22 mm
Form factor:round
Material:plastic
Contact type:momentary contact type
LED:integrated white LED
Light attachments:6 (colorless, red, yellow, green, blue, black)
Contact(s):1 NO contact
Inscription:without inscription
Included printed circuit board:incl. printed circuit board with contact module
Scope of supply:1 illuminated pushbutton, 1 printed circuit board, 6 light attachments, including mounting accessories
Engineering Context
Designed as an illuminated pushbutton for Extension Units with an integrated white LED.
Provides a momentary contact type with 1 NO contact for signaling within the extension configuration.
Supplied including a printed circuit board with contact module and mounting accessories.
FAQ
1. What is the product type and designation for Part number 6AV7674-1MB00-0AA0?
An illuminated pushbutton for Extension Units.
2. What is the contact configuration of this illuminated pushbutton?
Momentary contact type with 1 NO contact.
3. What LED and light attachments are included?
Integrated white LED with 6 light attachments (colorless, red, yellow, green, blue, black).
4. Is there an inscription on the pushbutton?
No, it is without inscription.
5. What is included in the scope of supply?
1 illuminated pushbutton, 1 printed circuit board, 6 light attachments, including mounting accessories.
