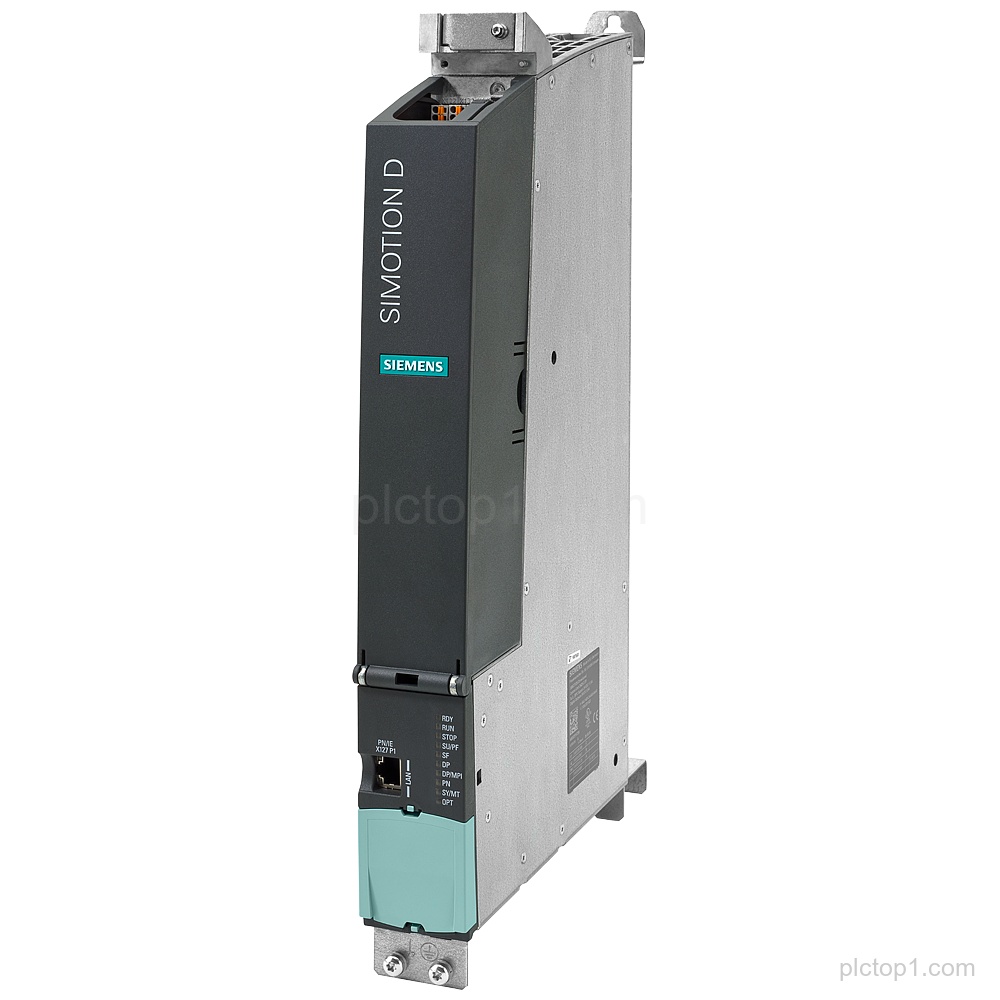

SIPLUS Drive-based Control Unit D435-2 DP/PN, part number 6AG1435-2AD00-4AA0, provides programmable motion control with DP/PN connectivity and standard performance.
Detailed Parameters
Based on:6AU1435-2AD00-0AA0
Product:SIPLUS D435-2 DP/PN
Design:SIPLUS Drive-based Control Unit D435-2 DP/PN
Programmable motion control system:Yes
Performance class:standard performance
Conformal coating:Yes
Operating temperature:0…+55 °C
Digital inputs (DI):12
Digital inputs/outputs (DI/DQ):16
DRIVE-CLiQ 2:6
PROFIBUS ports:2
PROFINET ports:3
Ethernet ports:2
USB ports:2
Option slot:1
Included:double fan/battery module and battery
Engineering Context
SIPLUS D435-2 DP/PN is a SIPLUS Drive-based Control Unit D435-2 DP/PN for programmable motion control in standard performance.
The control unit provides interfaces including DRIVE-CLiQ 2 and multiple PROFIBUS/PROFINET and Ethernet ports.
Conformal coating is specified, and the operating temperature range is given as 0…+55 °C.
FAQ
1. What is the product family and designation for part number 6AG1435-2AD00-4AA0?
SIPLUS D435-2 DP/PN; SIPLUS Drive-based Control Unit D435-2 DP/PN.
2. Is the unit suitable for programmable motion control?
Yes, it is specified as a programmable motion control system.
3. What temperature range is specified for this control unit?
0…+55 °C.
4. What input/output and interface counts are specified?
12 DI, 16 DI/DQ, 6 DRIVE-CLiQ 2, 2 PROFIBUS, 3 PROFINET ports, 2 Ethernet, 2 USB, and 1 option slot.
5. What is the thermal protection or enclosure coating specification?
Conformal coating is specified.
6. What components are included with the unit?
Including double fan/battery module and battery.
