Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

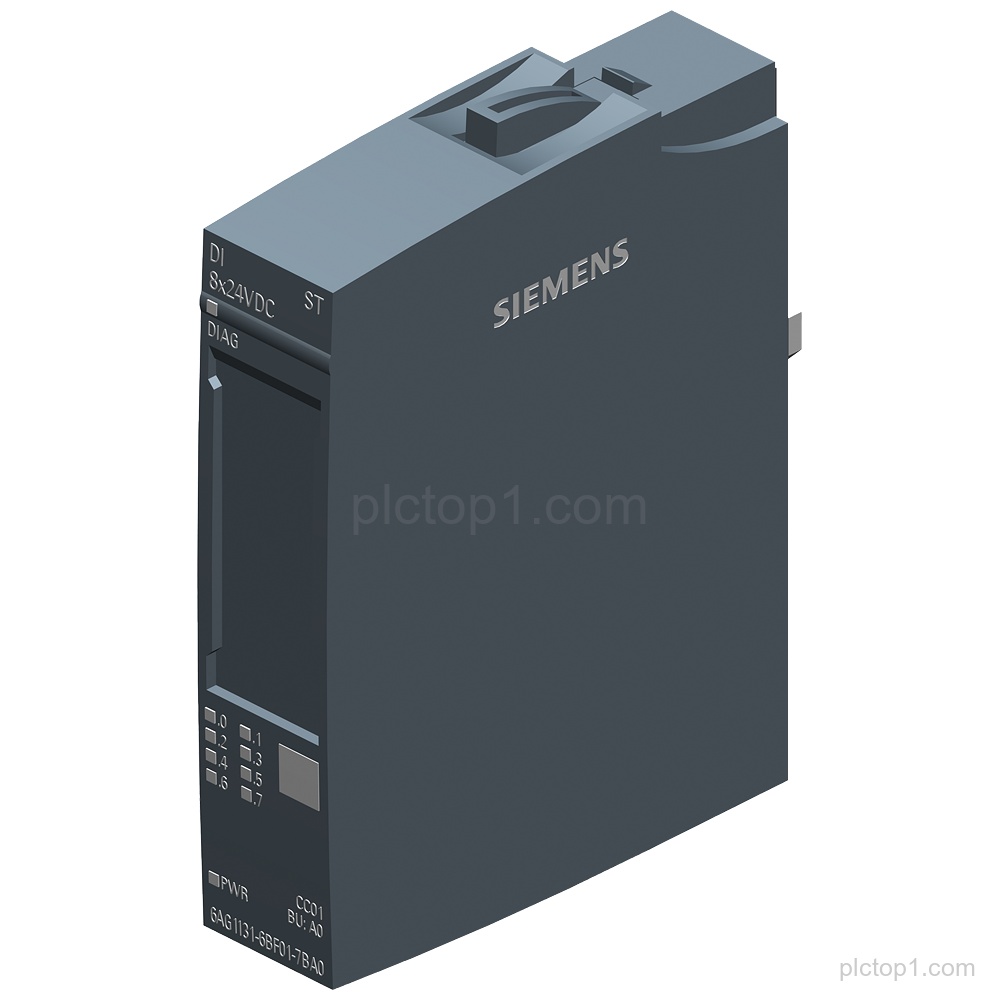

SIPLUS ET 200SP DI 8×24 V DC digital input module for part number 6AG1131-6BF01-7BA0, based on 6ES7131-6BF01-0BA0 with conformal coating.
Detailed Parameters
Product family / designation:SIPLUS ET 200SP DI 8×24 V DC
Based on:6ES7131-6BF01-0BA0
Conformal coating:Yes
Operating temperature:-40…+70 °C
Module type:Digital input module
Suitable for:BU type A0
Color code:CC01
Input type:3 (IEC 61131)
Input characteristic:Sink input (PNP, sinking input)
Input delay:0.05..20 ms
Input count:8
Module diagnostics:short-circuit encoder supply; wire break; supply voltage
Engineering Context
The module provides 8 digital inputs for 24 V DC sink input (PNP, sinking input) wiring.
Input type 3 (IEC 61131) and adjustable input delay 0.05..20 ms support signal timing at the module level.
Module diagnostics cover short-circuit encoder supply, wire break, and supply voltage conditions.
FAQ
1. What product family and function does 6AG1131-6BF01-7BA0 provide?
It is a SIPLUS ET 200SP DI 8×24 V DC digital input module.
2. Which base model is it based on?
It is based on 6ES7131-6BF01-0BA0.
3. What input type and input characteristic are supported?
It supports input type 3 (IEC 61131) and sink input (PNP, sinking input).
4. How many digital inputs does the module have?
The module provides 8 inputs.
5. What is the input delay range?
The input delay is 0.05..20 ms.
6. Which module diagnostics are available?
Module diagnostics include short-circuit encoder supply, wire break, and supply voltage.
7. What operating temperature range is specified?
The specified temperature range is -40…+70 °C.
