Product information

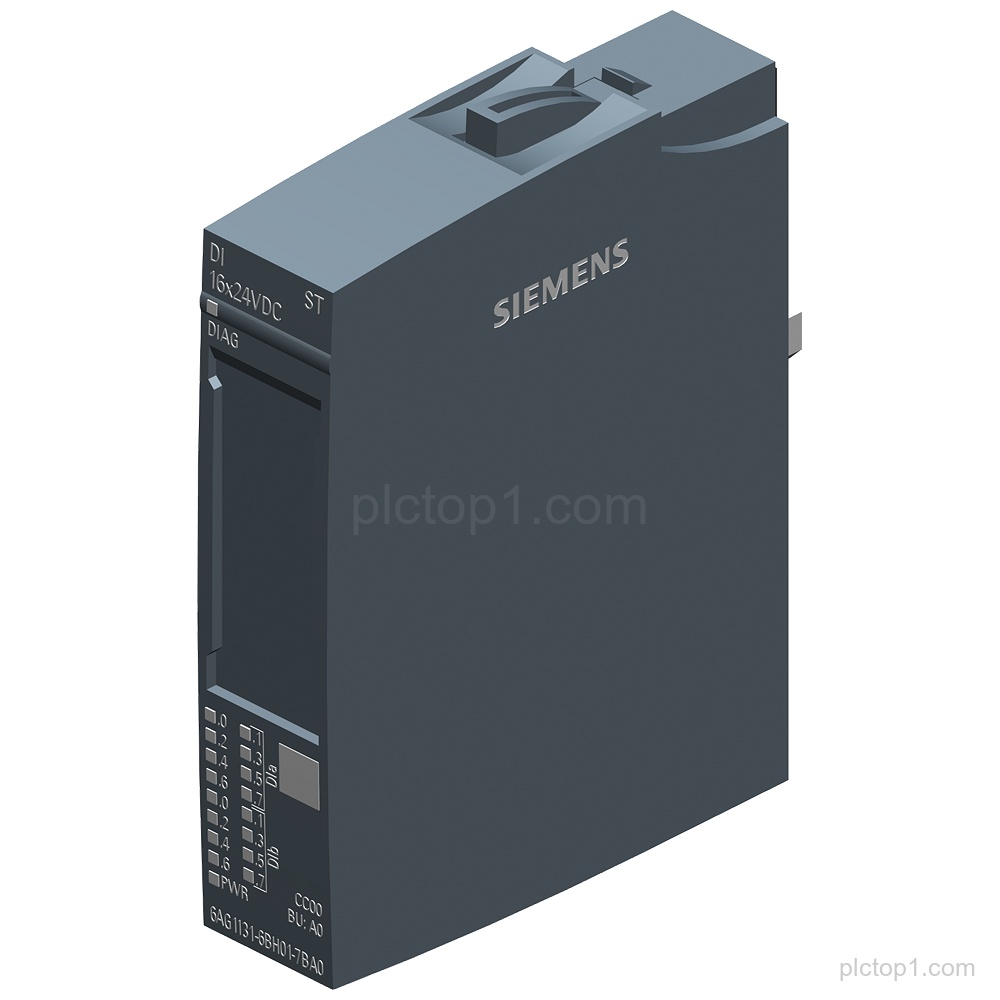

SIPLUS ET 200SP DI 16×24 V DC (part number 6AG1131-6BH01-7BA0) provides digital input functionality with conformal coating, suitable for BU type A0, and module diagnostics for wire break and supply voltage.
Detailed Parameters
Product family / designation:SIPLUS ET 200SP DI 16×24 V DC
Based on:6ES7131-6BH01-0BA0
Conformal coating:Yes
Operating temperature:-40…+70 °C
Module type:digital input module
BU type suitability:suitable for BU type A0
Color code:CC00
Input type / designation:type 3 (IEC 61131) sink input
Input configuration:(PNP, sinking input)
Input delay:0.05..20 ms
Module diagnostics:wire break, supply voltage
Engineering Context
The SIPLUS ET 200SP DI 16×24 V DC module (6AG1131-6BH01-7BA0) is intended for digital input signal acquisition as a sink input type 3 (IEC 61131) configuration.
The module supports a specified input delay range of 0.05..20 ms for the digital inputs.
Module diagnostics are provided for wire break and supply voltage.
FAQ
1. What is the module function of 6AG1131-6BH01-7BA0?
It is a SIPLUS ET 200SP digital input module for DI 16×24 V DC.
2. Which input type and configuration are specified for this module?
It is a type 3 (IEC 61131) sink input with (PNP, sinking input).
3. What input delay range does the module support?
The input delay is 0.05..20 ms.
4. For which BU type is the module suitable?
It is suitable for BU type A0.
5. What module diagnostics are stated?
Module diagnostics are provided for wire break and supply voltage.
6. What is the specified operating temperature range?
The operating temperature range is -40…+70 °C.
