Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

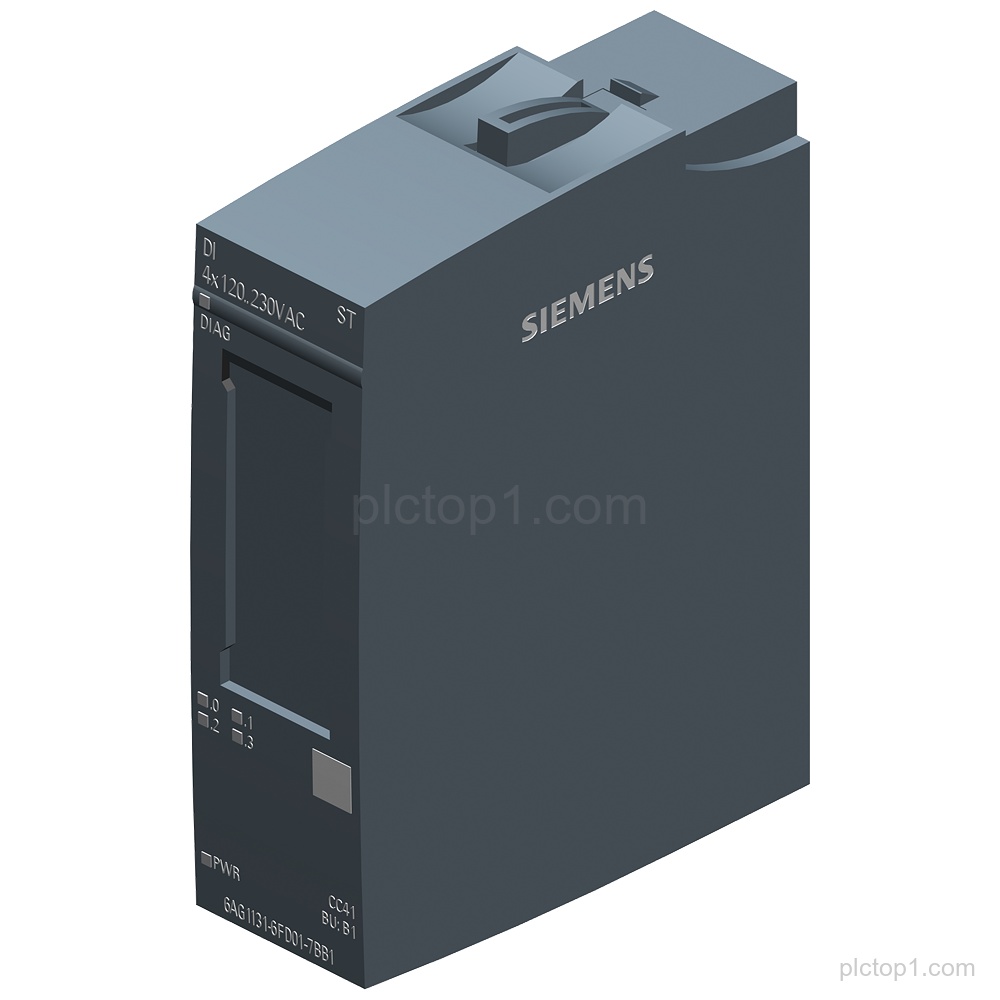

SIPLUS ET 200SP DI digital input module (Part number 6AG1131-6FD01-7BB1) based on 6ES7131-6FD01-0BB1 with conformal coating, color code CC41, module diagnostics, and an operating temperature range of -40…+70 °C.
Detailed Parameters
Product family:SIPLUS ET 200SP DI
Part number:6AG1131-6FD01-7BB1
Base part:6ES7131-6FD01-0BB1
Input type:digital input module
Number of inputs:4
Input signal range:120..230 V AC
based on:6ES7131-6FD01-0BB1
Conformal coating:yes
Operating temperature:-40…+70 °C
Suitable for:BU type B1
Color code:CC41
Module diagnostics:yes
Engineering Context
The product is a SIPLUS ET 200SP DI digital input module intended for 4 digital inputs in the 120..230 V AC range.
It is designed based on 6ES7131-6FD01-0BB1 with conformal coating.
The module supports module diagnostics and is suitable for BU type B1.
FAQ
1. What is the input type and number of channels for 6AG1131-6FD01-7BB1?
6AG1131-6FD01-7BB1 is a digital input module with 4 inputs.
2. What input signal range does SIPLUS ET 200SP DI 6AG1131-6FD01-7BB1 support?
It is specified for 120..230 V AC.
3. What is the operating temperature range for 6AG1131-6FD01-7BB1?
The operating temperature range is -40…+70 °C.
4. Is conformal coating provided and what base part is it based on?
Yes, conformal coating is included, and it is based on 6ES7131-6FD01-0BB1.
5. Which BU type is 6AG1131-6FD01-7BB1 suitable for?
It is suitable for BU type B1.
6. Does the module provide module diagnostics?
Yes, the module includes module diagnostics.
