Product information

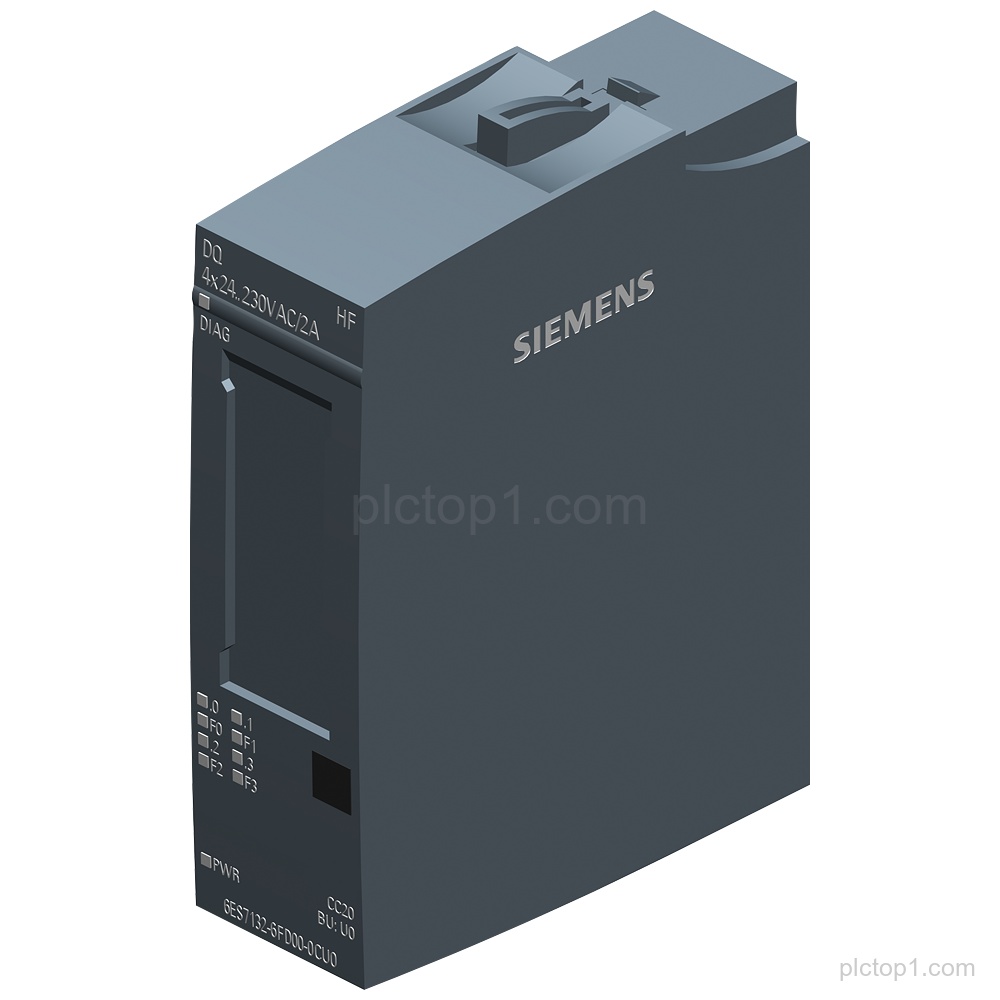

SIPLUS ET 200SP DQ 4×24..230VAC/2A HF based on 6ES7132-6FD00-0CU0 with conformal coating; Part number 6AG1132-6FD00-7CU0 is a digital output module designed for BU type U0.
Detailed Parameters
Product family/designation:SIPLUS ET 200SP DQ 4×24..230VAC/2A HF
Based on:6ES7132-6FD00-0CU0
Conformal coating:yes
Operating temperature:-40…+70 °C
Module type:digital output module
Output channels:4
Output voltage range:24..230VAC
Output current:2A
Suitable for BU type U0:yes
Color code:CC20
Channel diagnostics:two alternative operating modes: DQ and power control
Engineering Context
The module provides digital outputs with 4 channels in the range 24..230 VAC.
The product is based on 6ES7132-6FD00-0CU0 and includes conformal coating.
Channel diagnostics are associated with two alternative operating modes: DQ and power control.
FAQ
1. What is the module type for 6AG1132-6FD00-7CU0?
It is a digital output module.
2. How many output channels does the module have?
The module has 4 channels.
3. What output voltage range and current are specified?
It is specified for 24..230VAC and 2A.
4. Is conformal coating included?
Yes, conformal coating is specified.
5. What operating temperature range is specified?
-40…+70 °C is specified.
6. For which BU type is the module suitable?
It is suitable for BU type U0.
7. What is the specified basis and color code?
It is based on 6ES7132-6FD00-0CU0 and has color code CC20.
8. What channel diagnostics operating modes are provided?
Two alternative operating modes are specified: DQ and power control.
