Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

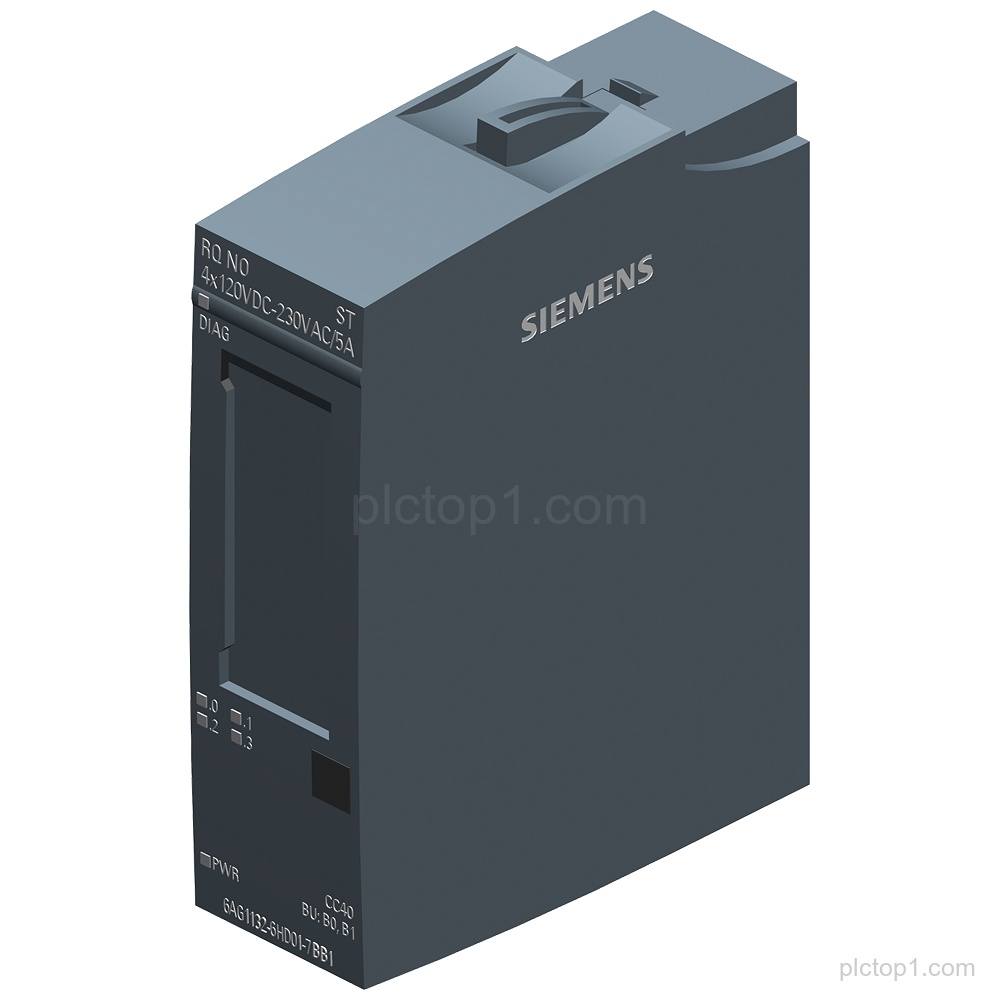

SIPLUS ET 200SP RQ based on 6ES7132-6HD01-0BB1; part number 6AG1132-6HD01-7BB1 supports relay operation normally open, includes conformal coating, and provides module diagnostics for the specified temperature range.
Detailed Parameters
Part number:6AG1132-6HD01-7BB1
Base type:based on 6ES7132-6HD01-0BB1
Product family:SIPLUS ET 200SP RQ
Supply / switching range:120V DC..230VAC/5A
Conformal coating:with conformal coating
Operating temperature:-40…+70 °C
Relay contact type:relay module normally open
Suitable for:suitable for BU type B0 or B1
Diagnostics:module diagnostics
Engineering Context
SIPLUS ET 200SP RQ 6AG1132-6HD01-7BB1 is based on 6ES7132-6HD01-0BB1 and is configured as a relay module with normally open contacts.
The module is suitable for BU type B0 or B1 and provides module diagnostics.
The conformal coating and specified operating range support use over -40…+70 °C.
FAQ
1. What is the product family and main function of 6AG1132-6HD01-7BB1?
6AG1132-6HD01-7BB1 is a SIPLUS ET 200SP RQ relay module.
2. What relay contact configuration is used?
The relay module is normally open.
3. What switching range is stated for this module?
The stated range is 120V DC..230VAC/5A.
4. Is conformal coating included?
Yes, it is with conformal coating.
5. What is the stated operating temperature range?
The operating range is -40…+70 °C.
6. What is the diagnostics capability mentioned for this module?
It provides module diagnostics.
7. Which BU types is the module suitable for?
It is suitable for BU type B0 or B1.
