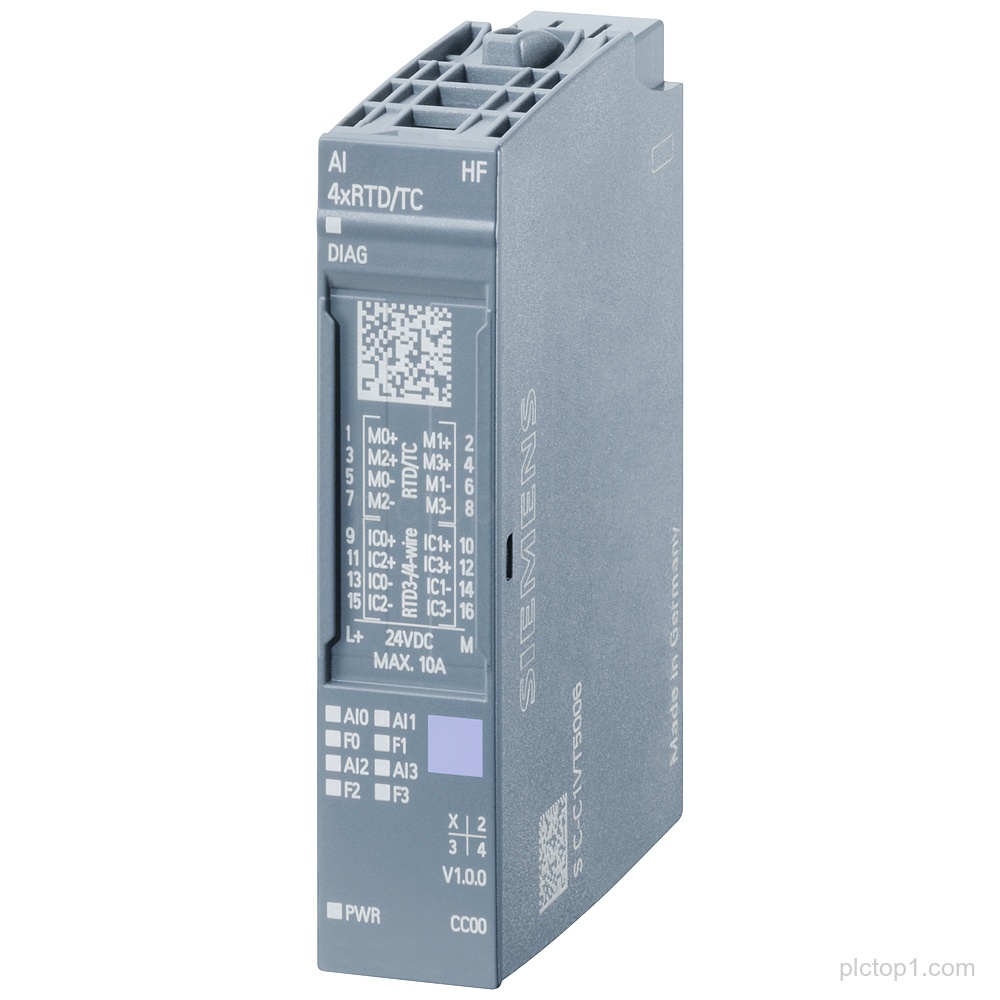

SIPLUS ET 200SP AI 4xRTD/TC (Part number 6AG1134-6JD00-2CA1) is an analog input module based on 6ES7134-6JD00-0CA1 with conformal coating for temperatures -40…+60 °C.
Detailed Parameters
Part number:6AG1134-6JD00-2CA1
Based on:6ES7134-6JD00-0CA1
Feature:high
Conformal coating:Yes
Temperature range:-40…+60 °C
Module type:analog input module
Signal type:RTD/TC
Number of channels:4
Suitability:suitable for BU type A0, A1
Color code:CC00
Channel diagnostics:Yes
Resolution:16-bit
Accuracy:+/-0.1%
Wiring:2/3/4-wire
Engineering Context
The SIPLUS ET 200SP AI 4xRTD/TC analog input module (Part number 6AG1134-6JD00-2CA1) provides 4 channels for RTD/TC signals with 16-bit resolution.
Channel diagnostics are supported for the RTD/TC analog inputs.
The module is designed for use with BU type A0 and A1 and is specified with color code CC00.
FAQ
1. What is the main function of 6AG1134-6JD00-2CA1?
It is an SIPLUS ET 200SP analog input module for AI 4xRTD/TC.
2. Which RTD/TC wiring types are supported?
2/3/4-wire.
3. How many channels and what resolution does the module provide?
4 channels and 16-bit resolution.
4. Does the module support channel diagnostics?
Yes.
5. What is the specified temperature range?
-40…+60 °C.
6. What is the basis of the SIPLUS ET 200SP high feature module?
It is based on 6ES7134-6JD00-0CA1.
7. Which BU types is the module suitable for?
BU type A0 and A1.
