Product information

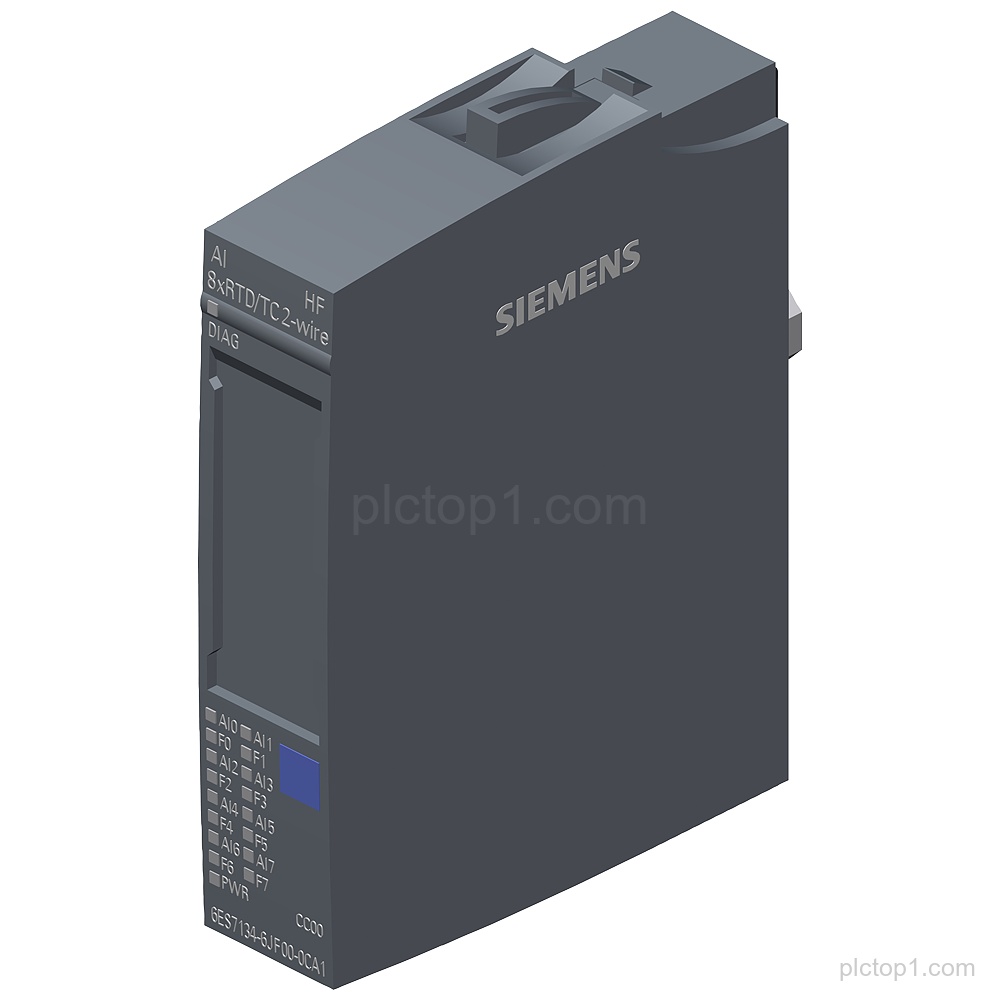

SIPLUS ET 200SP AI 8xRTD/TC 2-wire analog input module (Part number: 6AG1134-6JF00-2CA1) based on 6ES7134-6JF00-0CA1 with conformal coating for analog input acquisition using 2-wire RTD/TC signals.
Detailed Parameters
Part number:6AG1134-6JF00-2CA1
Product family:SIPLUS ET 200SP AI 8xRTD/TC 2-wire
Based on:6ES7134-6JF00-0CA1
Function:Analog input module
Conformal coating:Yes
Input type:RTD/TC 2-wire
Number of channels:8
Temperature range:-40…+60 °C
Suitable for:BU type A0, A1
Color code:CC00
Channel diagnostics:Yes
Resolution:16-bit
Accuracy:+/-0.1%
Engineering Context
SIPLUS ET 200SP AI 8xRTD/TC 2-wire provides analog input acquisition using RTD/TC in a 2-wire configuration.
The module is intended for SIPLUS ET 200SP BU type A0 and A1 and features conformal coating.
Channel diagnostics are supported with a 16-bit analog input value representation.
FAQ
1. What is the module type for part number 6AG1134-6JF00-2CA1?
It is an analog input module (SIPLUS ET 200SP AI 8xRTD/TC 2-wire).
2. How many channels does the module provide?
The module provides 8 channels.
3. What signal type does this module support?
It is based on RTD/TC 2-wire.
4. Is channel diagnostics available?
Yes, channel diagnostics are provided.
5. What is the resolution and stated accuracy?
The module has 16-bit resolution and +/-0.1% accuracy.
6. For which BU types is the module suitable?
It is suitable for BU type A0 and A1.
