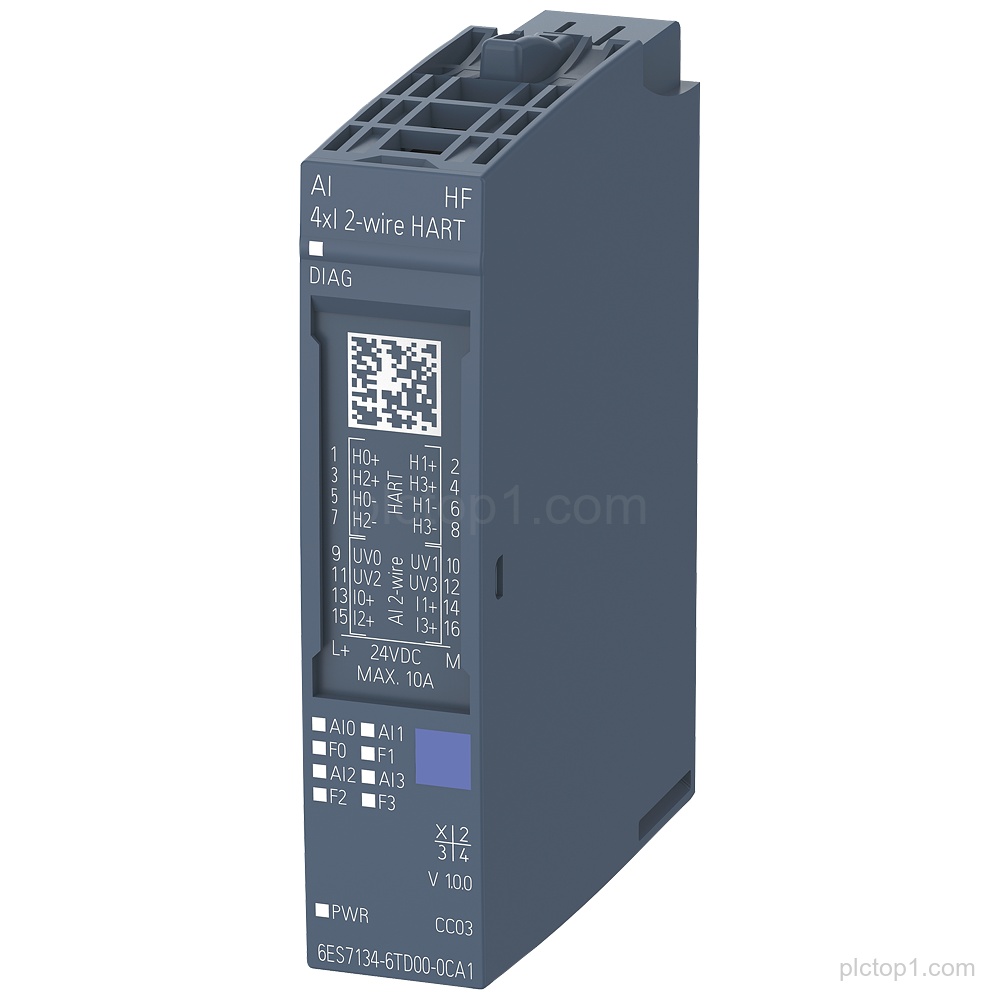

SIPLUS ET 200SP AI 4xI 2-wire 4-20mA HART based on 6AG1134-6TD00-0CA1 analog HART input module; part number 6AG1134-6TD00-2CA1.
Detailed Parameters
Product family:SIPLUS ET 200SP
Base design:based on 6ES7134-6TD00-0CA1
Construction:with conformal coating
Module type:analog HART input module
Input type:AI 4xI 2-wire 4-20mA HART
Suitable for:BU type A0, A1
Color code:CC03
Channel count:4
Channel diagnostics:available
Resolution:16-bit
Measurement accuracy:+/-0.3%
Ambient temperature range:-40…+60 °C
Start up temperature:-30 °C
Engineering Context
The module provides analog HART inputs for 2-wire 4-20mA signals in a SIPLUS ET 200SP configuration.
It is designed for BU type A0 and A1 and uses color code CC03.
The module supports channel diagnostics and is specified with 16-bit resolution and +/-0.3% measurement accuracy.
FAQ
1. What type of module is 6AG1134-6TD00-2CA1?
It is an analog HART input module for SIPLUS ET 200SP.
2. What input signals does 6AG1134-6TD00-2CA1 support?
It supports AI 4xI 2-wire 4-20mA HART.
3. How many channels does the module have?
It provides 4 channels.
4. Does the module support channel diagnostics?
Yes, channel diagnostics are available.
5. What is the resolution and measurement accuracy of the module?
It is specified as 16-bit with +/-0.3% accuracy.
6. What temperature ranges are specified?
Ambient temperature range is -40…+60 °C and start up temperature is -30 °C.
7. Is the module conformally coated?
Yes, it is with conformal coating.
