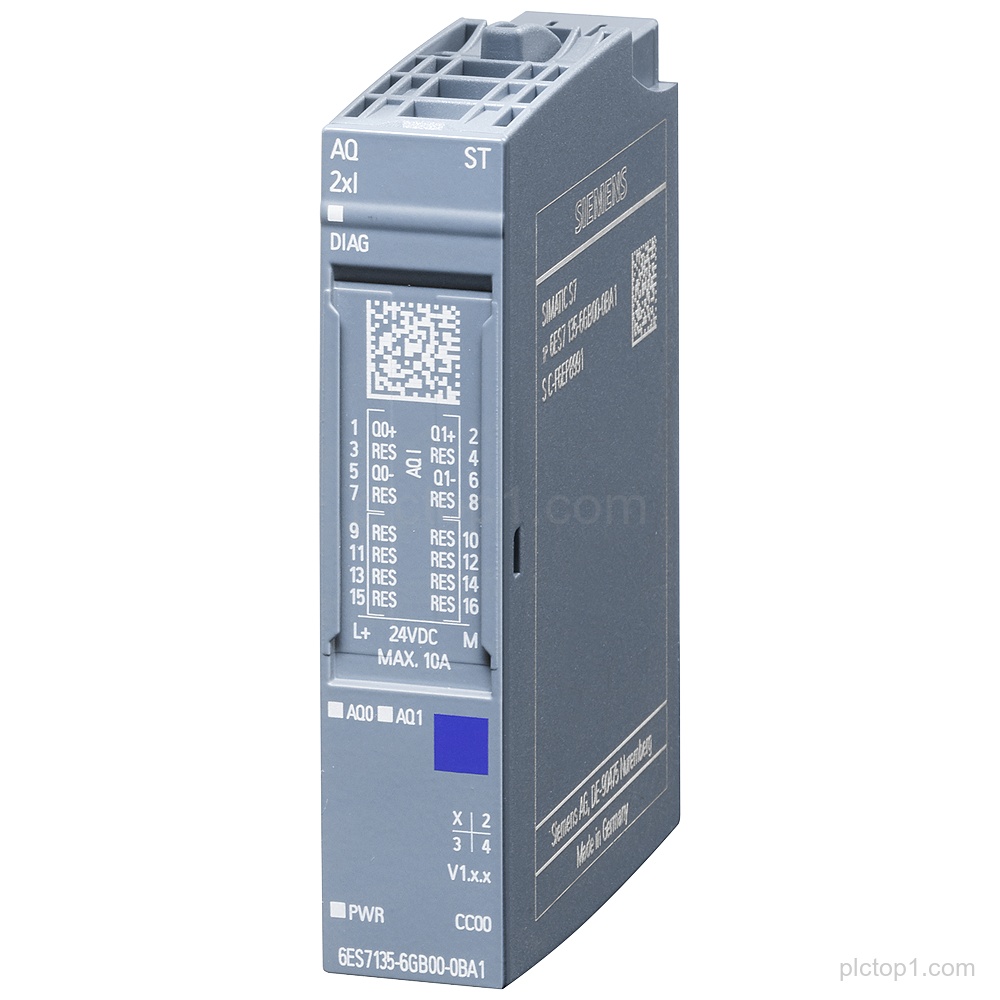

SIPLUS ET 200SP AQ 6AG1135-6GB00-7BA1 provides an analog output module with conformal coating and module diagnostics, suitable for BU type A0, A1.
Detailed Parameters
Based on:6ES7135-6GB00-0BA1
Product line / configuration:SIPLUS ET 200SP AQ 2xI standard
Coating:Conformal coating
Module type:Analog output module
Suitable for:BU type A0, A1
Color code:CC00
Module diagnostics:Supported
Resolution:16 bit
Ambient temperature range:-40…+70 °C
Engineering Context
The SIPLUS ET 200SP AQ analog output module 6AG1135-6GB00-7BA1 is based on 6ES7135-6GB00-0BA1 and includes conformal coating.
The module is intended for use with BU type A0, A1 and uses color code CC00.
The module provides module diagnostics and supports 16 bit analog output.
FAQ
1. What is the function of 6AG1135-6GB00-7BA1?
It is an analog output module.
2. Which reference module is 6AG1135-6GB00-7BA1 based on?
It is based on 6ES7135-6GB00-0BA1.
3. For which BU types is 6AG1135-6GB00-7BA1 suitable?
It is suitable for BU type A0, A1.
4. What is the color code of 6AG1135-6GB00-7BA1?
The color code is CC00.
5. Does 6AG1135-6GB00-7BA1 support module diagnostics?
Yes, module diagnostics are provided.
6. What is the analog output resolution of 6AG1135-6GB00-7BA1?
It is specified as 16 bit.
7. What ambient temperature range is specified for 6AG1135-6GB00-7BA1?
The specified range is -40…+70 °C.
