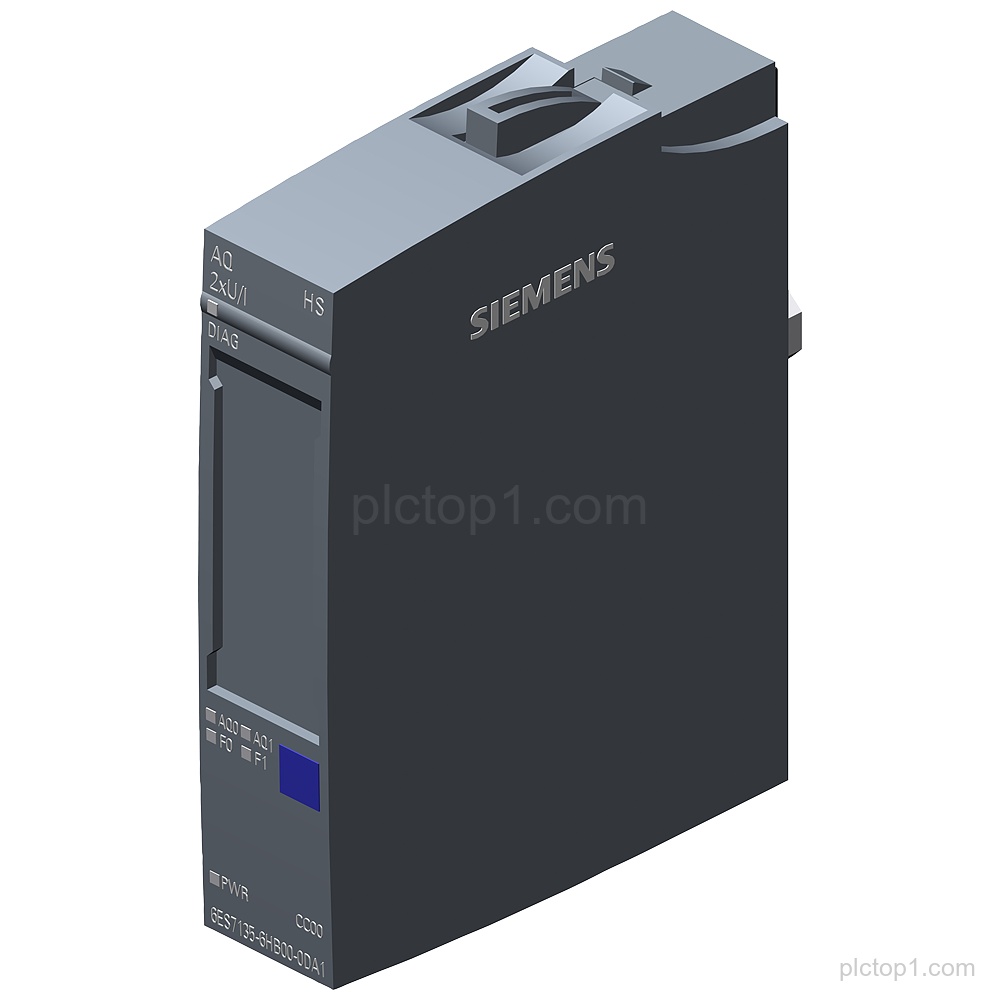

SIPLUS ET 200SP AQ analog output module 6AG1135-6HB00-2DA1 provides 2xU/I high speed output based on 6ES7135-6HB00-0DA1 with conformal coating and channel diagnostics.
Detailed Parameters
Based on:6ES7135-6HB00-0DA1
Coating:conformal coating
Operating temperature:-40…+60 °C
Module type:analog output module
Output function:2xU/I high speed
Suitability (BU type):suitable for BU type A0, A1
Color code:CC00
Channel diagnostics:supported
Resolution:16-bit
Accuracy:+/-0.3%
Engineering Context
The module 6AG1135-6HB00-2DA1 is an analog output module within SIPLUS ET 200SP AQ for 2xU/I high speed output based on 6ES7135-6HB00-0DA1.
The conformal coating and operating temperature range -40…+60 °C support installation under the stated temperature conditions.
Channel diagnostics are supported and the module provides 16-bit analog output with +/-0.3% accuracy.
FAQ
1. What Siemens product family and module type does 6AG1135-6HB00-2DA1 belong to?
6AG1135-6HB00-2DA1 belongs to SIPLUS ET 200SP AQ and is an analog output module.
2. What output function is provided by this SIPLUS ET 200SP AQ analog output module?
It provides 2xU/I high speed output.
3. What is the basis for 6AG1135-6HB00-2DA1?
It is based on 6ES7135-6HB00-0DA1.
4. Which temperature range is specified for 6AG1135-6HB00-2DA1?
The specified operating temperature range is -40…+60 °C.
5. Is channel diagnostics supported on 6AG1135-6HB00-2DA1?
Yes, channel diagnostics is supported.
6. What are the resolution and accuracy values stated for the analog output?
The module is specified with 16-bit resolution and +/-0.3% accuracy.
