Product information

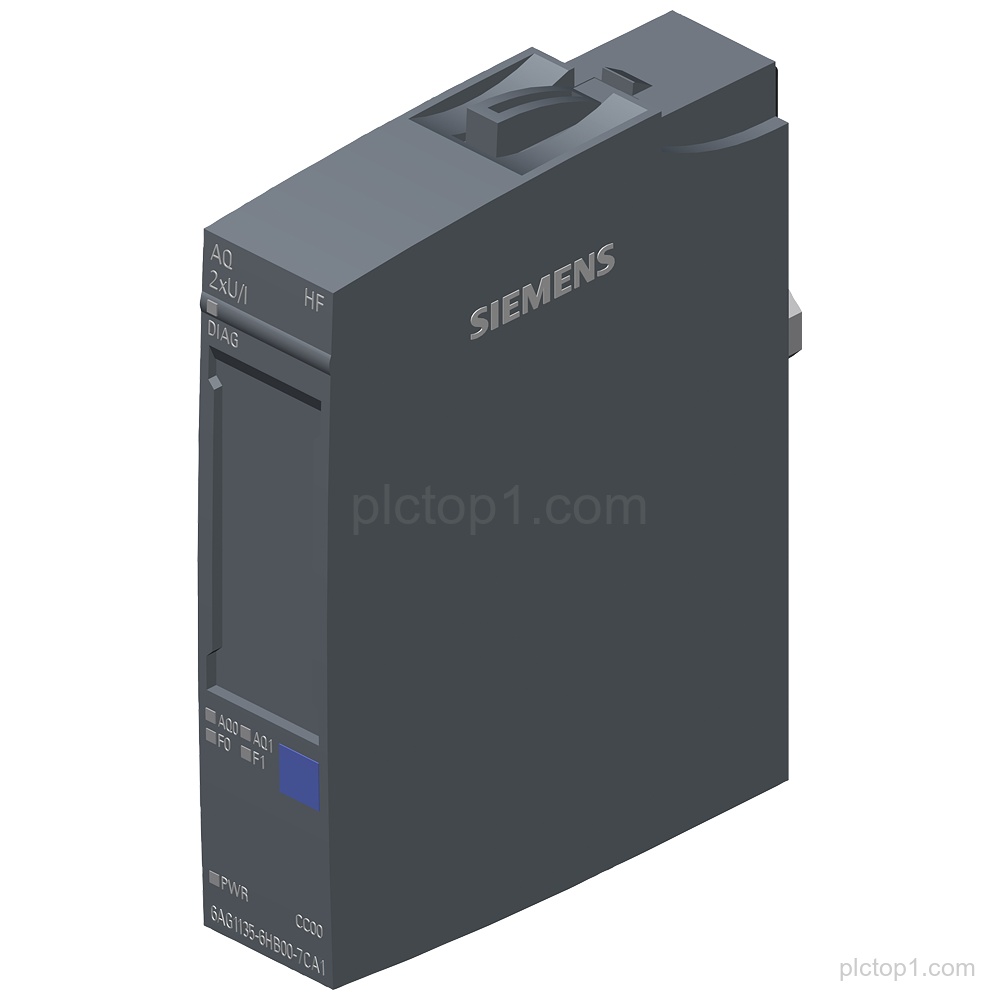

SIPLUS ET 200SP AQ analog output module 6AG1135-6HB00-7CA1 based on 6ES7135-6HB00-0CA1 with conformal coating for applications suitable for BU type A0, A1.
Detailed Parameters
Based on:6ES7135-6HB00-0CA1
Product variant:SIPLUS ET 200SP AQ 2xU/I HF
Mounting/Protection:Conformal coating
Temperature range:-40…+70 °C
Module function:Analog output module
Suitable for BU type:A0, A1
Color code:CC00
Channel diagnostics:Provided
Resolution:16-bit
Accuracy:+/-0.1%
Engineering Context
The SIPLUS ET 200SP AQ module 6AG1135-6HB00-7CA1 is an analog output module based on 6ES7135-6HB00-0CA1.
The module is conformal-coated and specified for -40…+70 °C.
It provides channel diagnostics and is suitable for BU type A0 and A1 with color code CC00.
FAQ
1. What is the main function of 6AG1135-6HB00-7CA1?
It is an analog output module (SIPLUS ET 200SP AQ 2xU/I HF).
2. On which base module is 6AG1135-6HB00-7CA1 based?
It is based on 6ES7135-6HB00-0CA1.
3. Does 6AG1135-6HB00-7CA1 include channel diagnostics?
Yes, channel diagnostics are provided.
4. What temperature range is specified for 6AG1135-6HB00-7CA1?
-40…+70 °C.
5. For which BU types is 6AG1135-6HB00-7CA1 suitable?
BU type A0 and A1.
6. What resolution and accuracy are specified for 6AG1135-6HB00-7CA1?
16-bit resolution and +/-0.1% accuracy.
