Product information

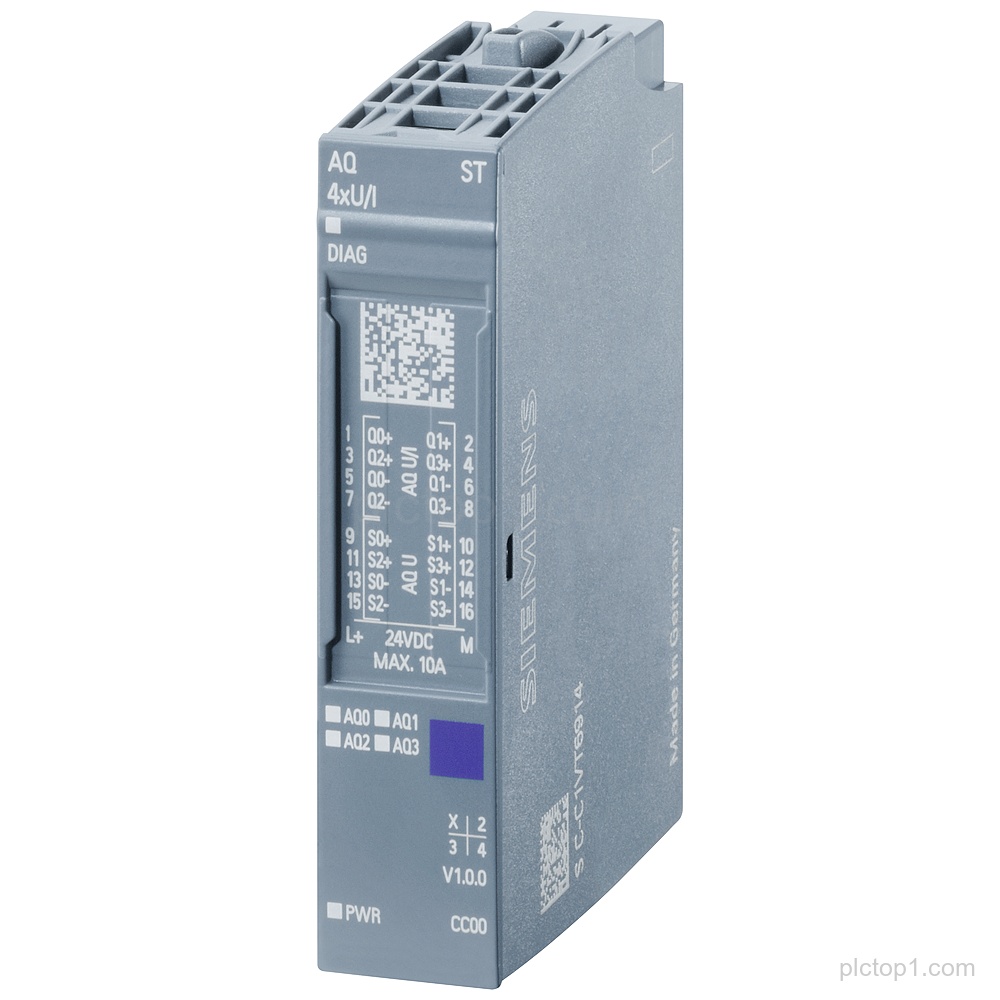

SIPLUS ET 200SP AQ analog output module, part number 6AG1135-6HD00-7BA1, standard based on 6ES7135-6HD00-0BA1 with conformal coating and channel diagnostics.
Detailed Parameters
Product family / system:SIPLUS ET 200SP AQ
Standard basis:based on 6ES7135-6HD00-0BA1
Conformal coating:Yes
Temperature range:-40…+70 °C
Module type:analog output module
BU type suitability:suitable for BU type A0, A1
Color code:CC00
Channel diagnostics:Yes
Resolution:16-bit
Analog output accuracy:+/-0.3%
Engineering Context
The SIPLUS ET 200SP AQ analog output module is standardized based on 6ES7135-6HD00-0BA1 and includes conformal coating.
The module is suitable for BU type A0 and A1 with color code CC00.
Channel diagnostics are provided with 16-bit analog output and an accuracy of +/-0.3%.
FAQ
1. What is the function of 6AG1135-6HD00-7BA1?
It is an analog output module for SIPLUS ET 200SP AQ.
2. What standard is the SIPLUS ET 200SP AQ module based on?
It is standard based on 6ES7135-6HD00-0BA1.
3. Does the module have conformal coating?
Yes, it is based on 6ES7135-6HD00-0BA1 with conformal coating.
4. What is the operating temperature range?
-40…+70 °C.
5. Which BU types is the module suitable for?
It is suitable for BU type A0 and A1.
6. What diagnostic feature is provided?
Channel diagnostics.
7. What resolution and accuracy are specified?
16-bit with +/-0.3%.
