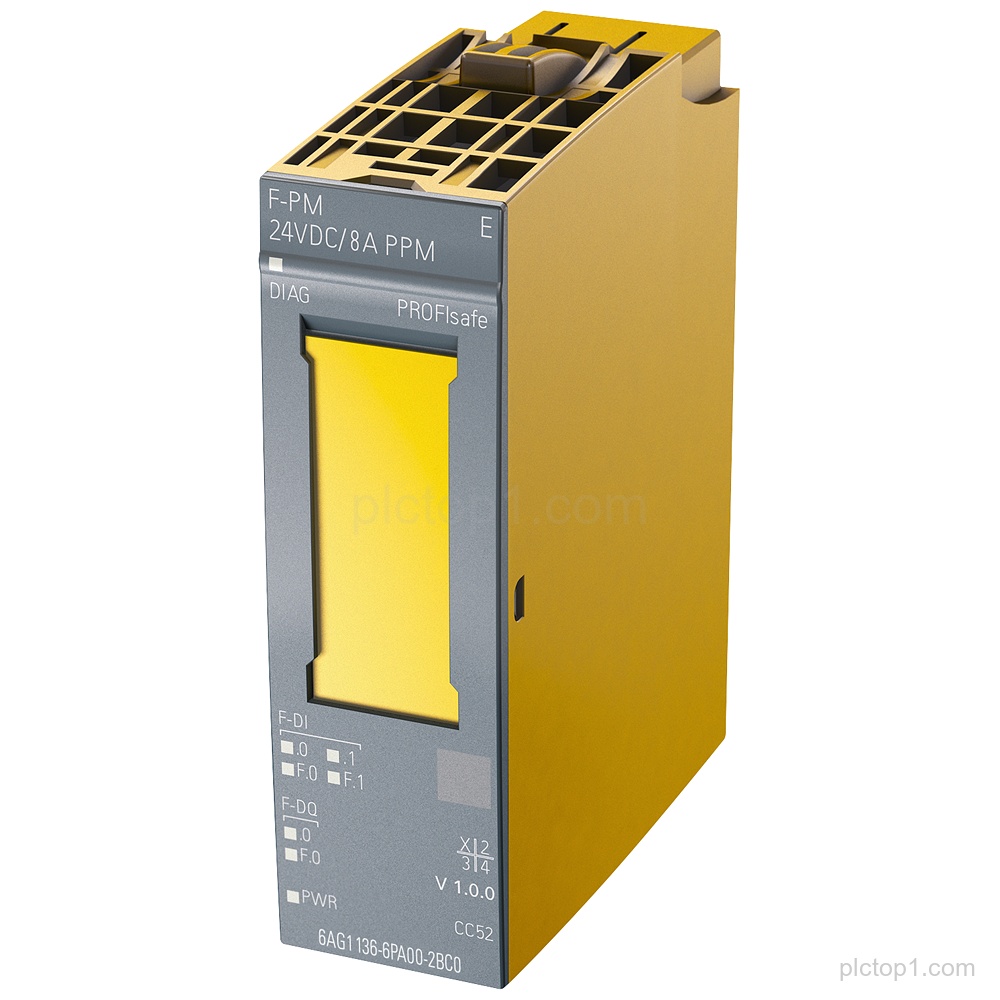

SIPLUS ET 200SP F-PM-E PROFIsafe fail-safe power module 6AG1136-6PA00-2BC0 based on 6ES7136-6PA00-0BC0 with conformal coating for -30…+60 °C operation.
Detailed Parameters
Product family / designation:SIPLUS ET 200SP F-PM-E
Module type:fail-safe power module PROFIsafe
PPM:PPM based on 6ES7136-6PA00-0BC0
Conformal coating:with conformal coating
Nominal supply:24VDC
Current rating:8A
Operating temperature:-30…+60 °C
Safe shutdown function:24 V DC safe shutdown of DQ and F-DQ
Safety capability:up to PL D/SIL2 or PL E/SIL3
Safe digital inputs:2
Safe digital output:1
Engineering Context
The module 6AG1136-6PA00-2BC0 is a SIPLUS ET 200SP F-PM-E fail-safe power module PROFIsafe in PPM format.
It provides 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3.
The module offers 2 safe digital inputs and 1 safe digital output for use in the ET 200SP fail-safe system context indicated by its PROFIsafe designation.
FAQ
1. What is the product family and designation for part 6AG1136-6PA00-2BC0?
SIPLUS ET 200SP F-PM-E fail-safe power module PROFIsafe.
2. On which base device is the PPM based for 6AG1136-6PA00-2BC0?
It is a PPM based on 6ES7136-6PA00-0BC0.
3. What are the safe shutdown capabilities of this module?
It provides 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3.
4. How many safe digital inputs and safe digital outputs does 6AG1136-6PA00-2BC0 have?
It has 2 safe digital inputs and 1 safe digital output.
5. What supply and current rating are specified for 6AG1136-6PA00-2BC0?
The module specifies 24VDC and 8A.
6. What operating temperature range is specified for 6AG1136-6PA00-2BC0?
The specified operating temperature range is -30…+60 °C.
