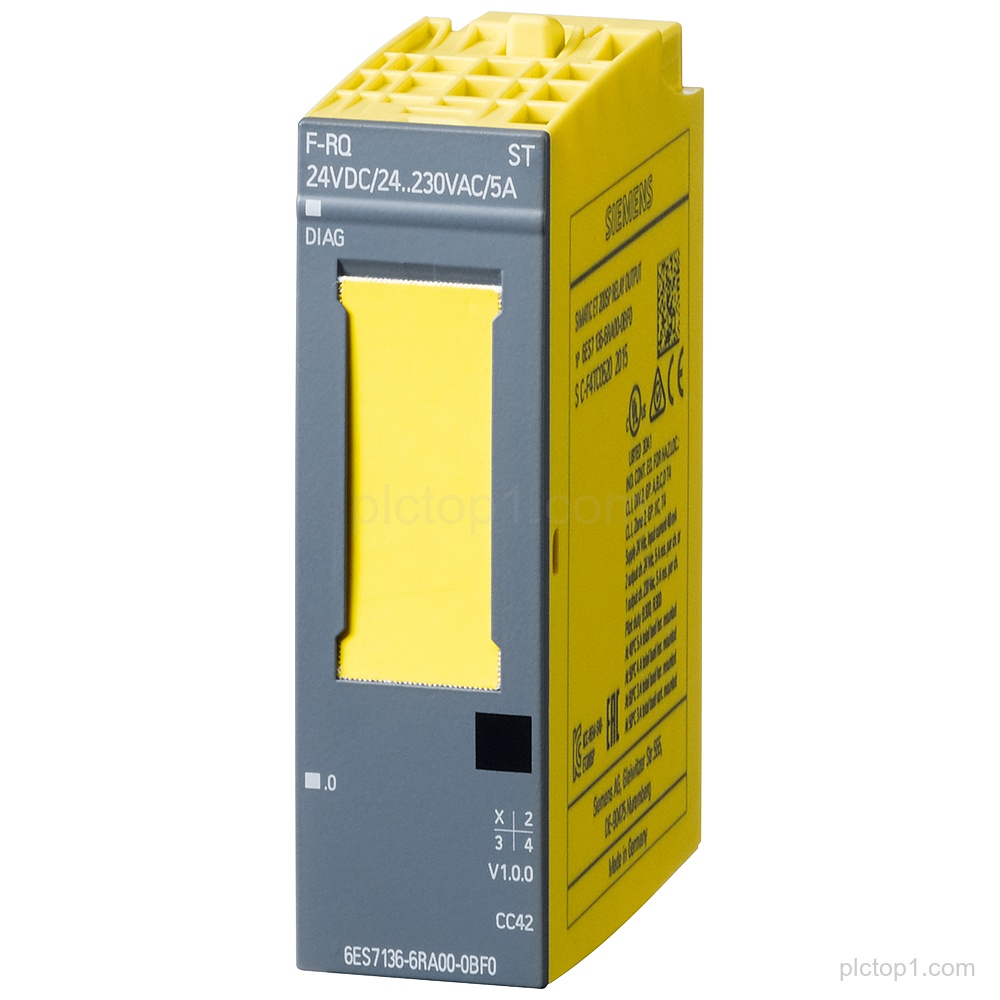

SIPLUS ET 200SP F-RQ DC 24V/24-230V AC/5A with part number 6AG1136-6RA00-2BF0; conformal coating; designed for use up to PL e (ISO 13849-1: 2008)/SIL 3 (IEC 61508: 2010) when controlled by F-DQ (e.g. 6AG1136-6DB00-2CA0).
Detailed Parameters
Based on:6ES7136-6RA00-0BF0
Housing protection:conformal coating
Ambient temperature:-30…+60 °C
Overall width:20 mm
Number of relay outputs:1 relay output (2 NO)
Summation output current:5 A
Load voltage:24 V DC and 24 … 230 V AC
Functional safety capability (system level):can be used up to PL e (ISO 13849-1: 2008)/SIL 3 (IEC 61508: 2010) if controlled by F-DQ
F-DQ example:6AG1136-6DB00-2CA0
Engineering Context
The SIPLUS ET 200SP F-RQ DC 24V/24-230V AC/5A provides 1 relay output (2 NO) as a summation output with up to 5 A.
Load voltage supported is 24 V DC and 24 … 230 V AC depending on system configuration.
Use up to PL e (ISO 13849-1: 2008)/SIL 3 (IEC 61508: 2010) is conditional on control by F-DQ (e.g. 6AG1136-6DB00-2CA0).
