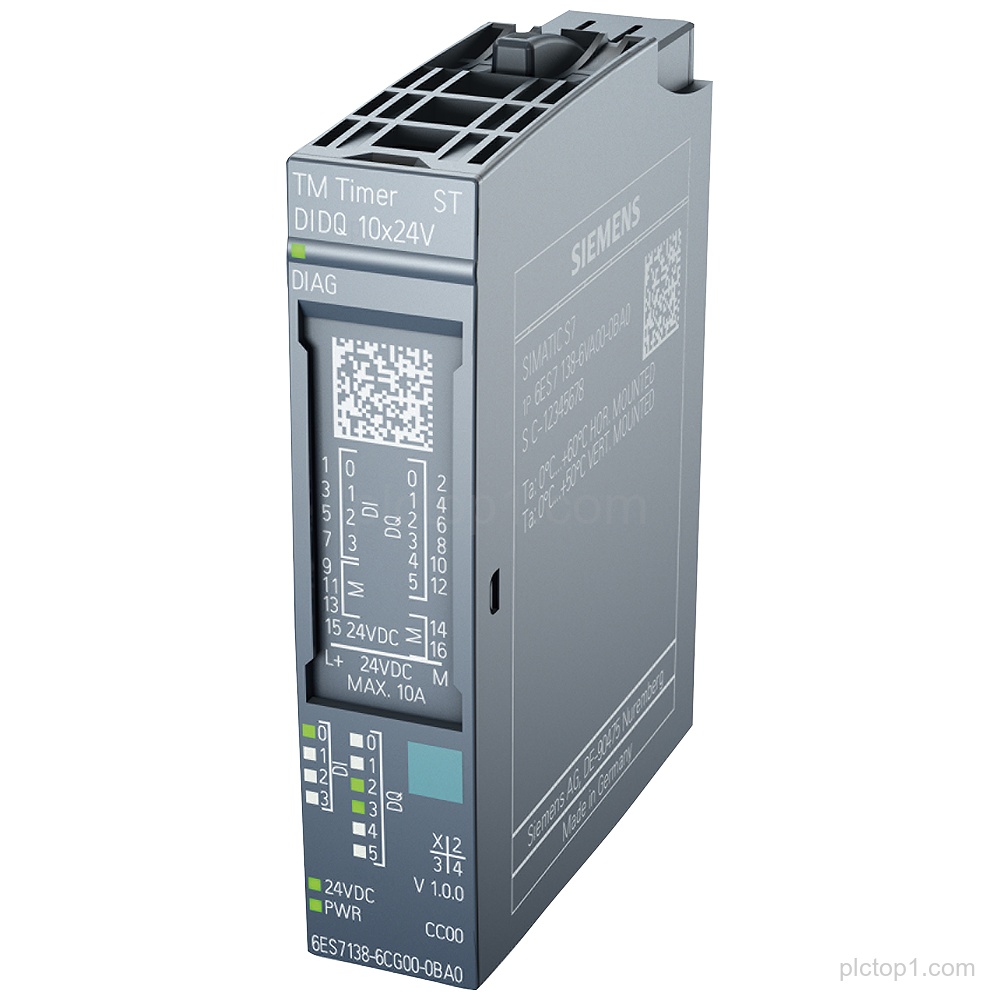

SIPLUS ET 200SP TM timer DIDQ (part number 6AG1138-6CG00-2BA0) provides time-controlled digital inputs and outputs with time stamp count, PWM, and oversampling, based on 6ES7138-6CG00-0BA0 with conformal coating.
Detailed Parameters
Product designation:SIPLUS ET 200SP TM timer DIDQ
Based on:6ES7138-6CG00-0BA0
Conformal coating:with conformal coating
Temperature range:-40…+60 °C
Supply voltage (digital signals):10x24V
Digital inputs:4 DI
Digital outputs:6 DQ
Time-controlled function:time-controlled digital inputs and outputs
Time stamp count:with time stamp count
PWM:with PWM
Oversampling:with oversampling
Engineering Context
SIPLUS ET 200SP TM timer DIDQ supports time-controlled digital inputs and outputs for timing-related signal handling.
The module includes 4 DI and 6 DQ channels with time stamp count, PWM, and oversampling as stated in the product information.
The module is specified with conformal coating and operates over -40…+60 °C.
FAQ
1. What is the function of 6AG1138-6CG00-2BA0?
It is a SIPLUS ET 200SP TM timer DIDQ that provides time-controlled digital inputs and outputs.
2. How many digital input and output channels are provided?
It provides 4 DI and 6 DQ.
3. What additional timing and signal features are included?
It includes time stamp count, PWM, and oversampling.
4. What is the temperature range of the module?
The specified operating temperature range is -40…+60 °C.
5. Is the module based on a standard Siemens designation?
Yes. It is based on 6ES7138-6CG00-0BA0.
