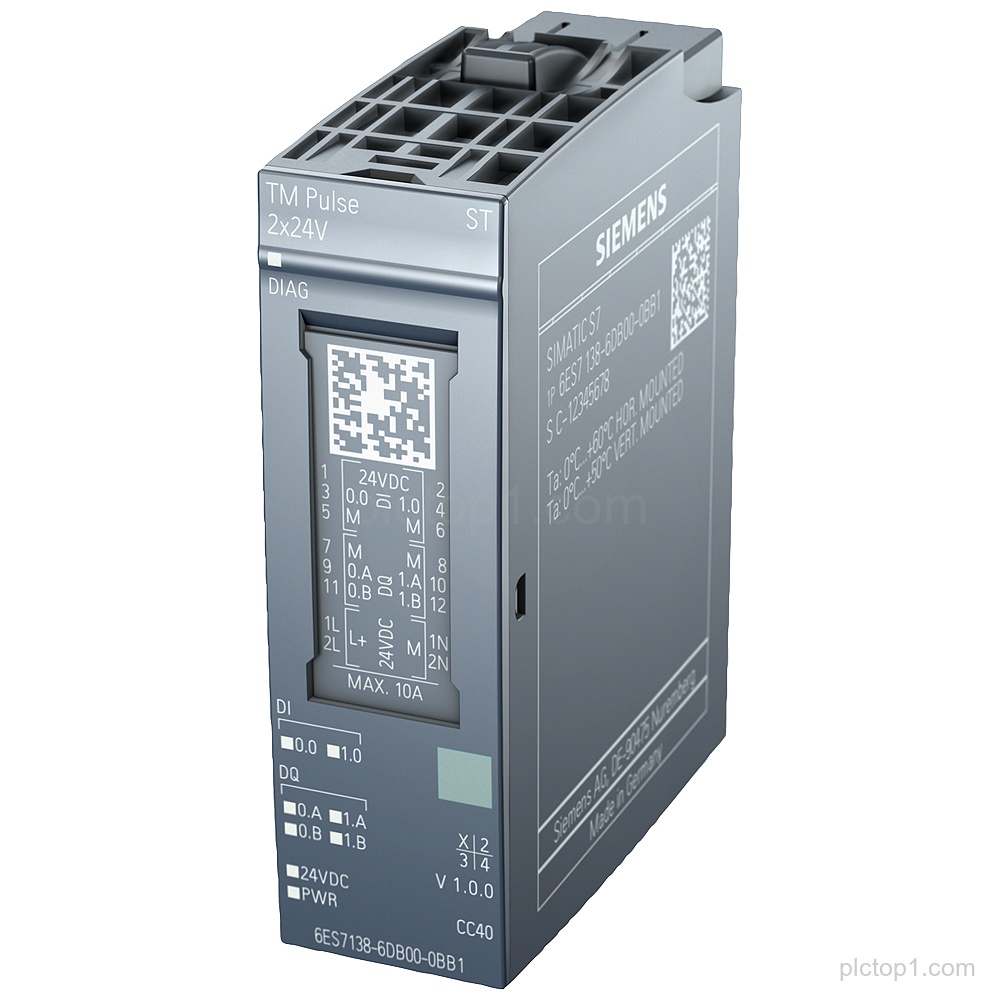

SIPLUS ET 200SP TM pulse 2x24V based on 6ES7138-6DB00-0BB1, part number 6AG1138-6DB00-2BB1, provides PWM and pulse output with 2 channels 2 A for proportional valves and DC motors.
Detailed Parameters
Based on:6ES7138-6DB00-0BB1
Output type:PWM and pulse output
Output supply:2x24V
Number of channels:2
Output current:2 A
Intended for:proportional valves and DC motors
Coating:conformal coating
Ambient temperature range:-40…+60 °C
Engineering Context
SIPLUS ET 200SP TM pulse 2x24V with conformal coating is designed for PWM and pulse output applications for proportional valves and DC motors.
The module provides PWM and pulse output through 2 channels with 2 A each.
For operation, the specified ambient temperature range is -40…+60 °C.
FAQ
1. What is the product designation and output type for part number 6AG1138-6DB00-2BB1?
SIPLUS ET 200SP TM pulse 2x24V with PWM and pulse output.
2. How many output channels does the module provide and what is the output current per channel?
2 channels with 2 A output current.
3. Which applications is the pulse module intended for?
proportional valves and DC motors.
4. What is the basis type stated for this SIPLUS ET 200SP TM module?
It is based on 6ES7138-6DB00-0BB1.
5. What coating and temperature range are specified?
It has conformal coating and a specified ambient temperature range of -40…+60 °C.
