Product information

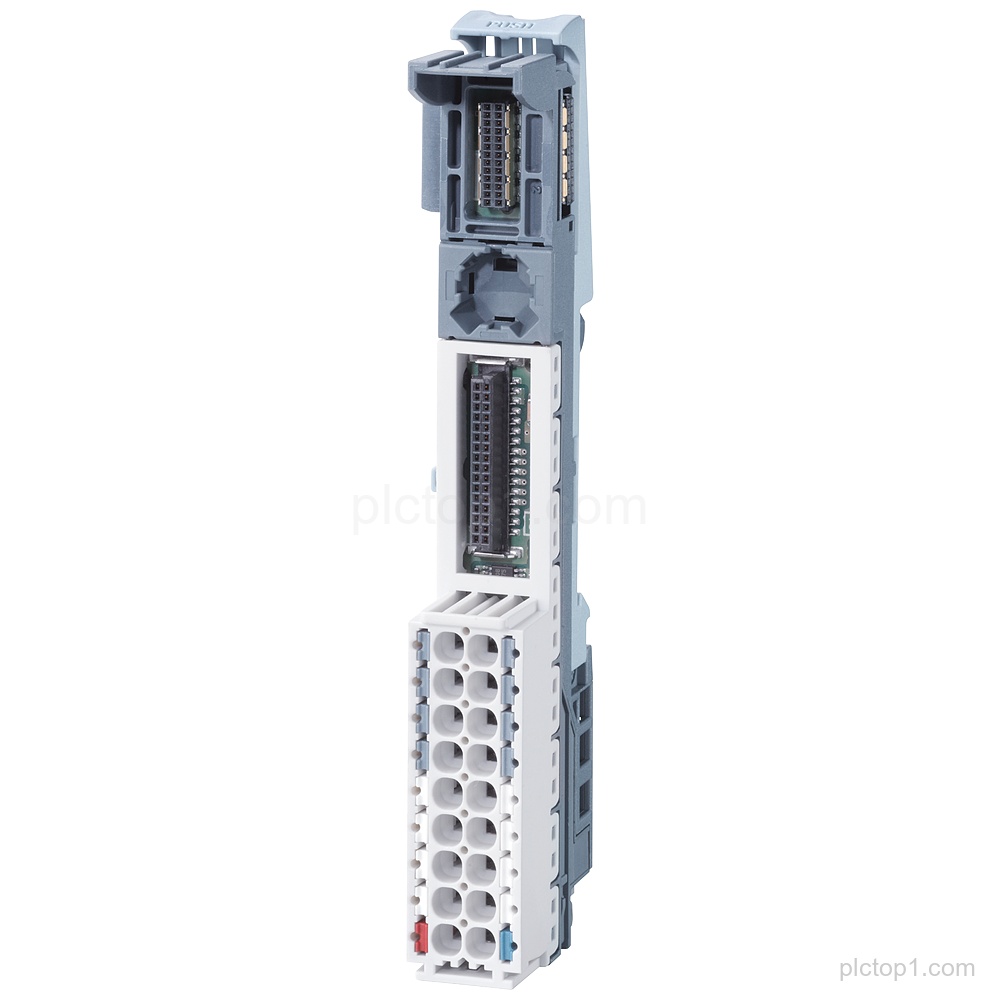

SIPLUS ET 200SP BU15-P16+A0+2D/T with temperature acquisition (Part Number: 6AG1193-6BP00-7DA1) is based on 6ES7193-6BP00-0DA1 and is designed with conformal coating for BU type A1.
Detailed Parameters
Based on:6ES7193-6BP00-0DA1
Conformal coating:Yes
Temperature range:-40…+70 °C
BU type:A1
Terminals:push-in terminals
AUX terminals:without AUX terminals
Load group:new load group
Dimensions (WxH):15 mm x 117 mm
Temperature acquisition:With temperature acquisition
Engineering Context
The product is SIPLUS ET 200SP BU15-P16+A0+2D/T based on 6ES7193-6BP00-0DA1 and includes conformal coating.
Temperature acquisition is included and the operating temperature range is -40…+70 °C.
The configuration uses BU type A1 with push-in terminals and is supplied without AUX terminals.
FAQ
1. What is the based-on reference for 6AG1193-6BP00-7DA1?
It is based on 6ES7193-6BP00-0DA1.
2. Does 6AG1193-6BP00-7DA1 include conformal coating?
Yes, conformal coating is specified.
3. What temperature range is specified for 6AG1193-6BP00-7DA1?
The specified temperature range is -40…+70 °C.
4. What terminal type is used?
It uses push-in terminals.
5. Is an AUX terminal option included?
No, it is specified as without AUX terminals.
6. Is temperature acquisition included?
Yes, it is specified with temperature acquisition.
