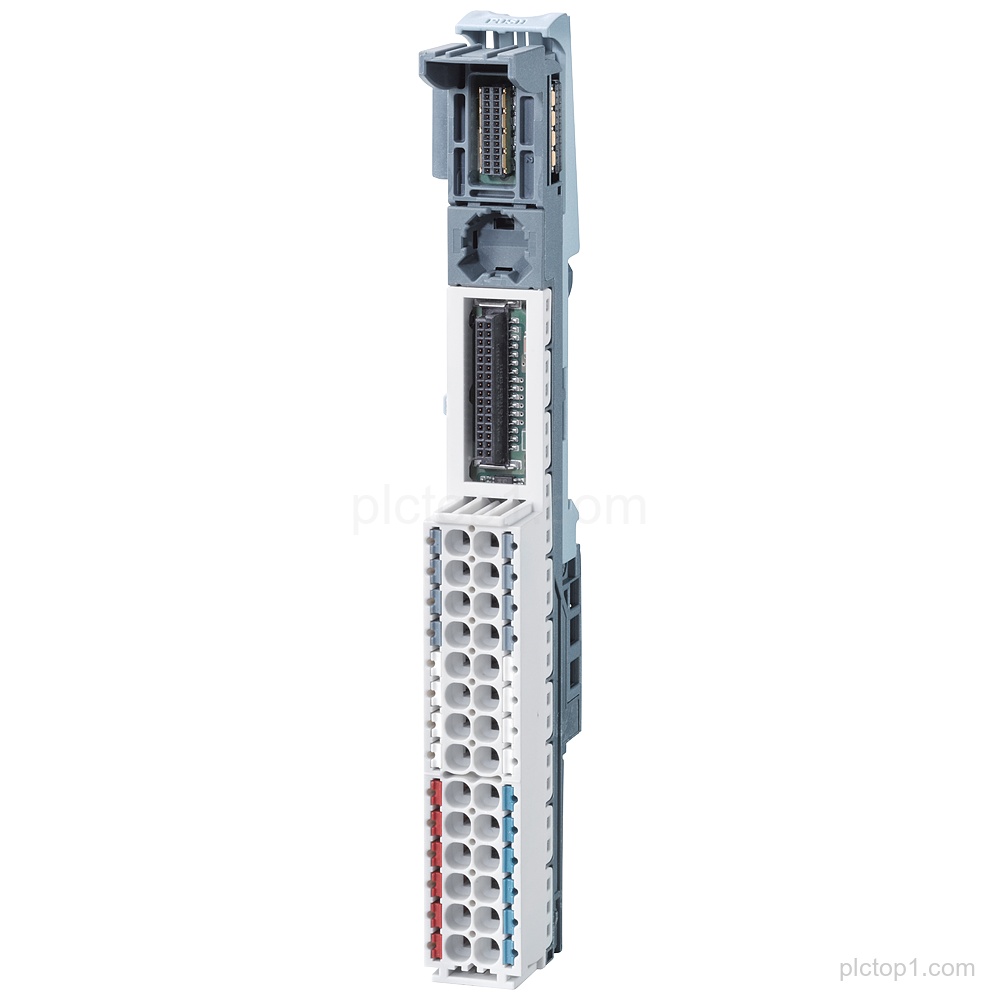

SIPLUS ET 200SP BU15-P16+A10+2D (Part Number: 6AG1193-6BP20-7DA0) provides a BU type A0 configuration based on 6ES7193-6BP20-0DA0 with conformal coating and push-in terminals.
Detailed Parameters
Based on:6ES7193-6BP20-0DA0
Conformal coating:Yes
Operating temperature:-40…+70 °C
BU type:A0
Terminal type:push-in terminals
Aux terminals:10 AUX terminals
Load group:new load group
Dimensions:WxH: 15 mm x141 mm
Engineering Context
The product is SIPLUS ET 200SP BU15-P16+A10+2D based on 6ES7193-6BP20-0DA0 with conformal coating.
The BU type A0 configuration uses push-in terminals and includes 10 AUX terminals.
The stated operating temperature range is -40…+70 °C and the device size is WxH: 15 mm x141 mm.
FAQ
1. What is the base designation for 6AG1193-6BP20-7DA0?
It is based on 6ES7193-6BP20-0DA0.
2. Does 6AG1193-6BP20-7DA0 include conformal coating?
Yes, it is specified with conformal coating.
3. What is the operating temperature range for 6AG1193-6BP20-7DA0?
The operating temperature range is -40…+70 °C.
4. What terminal type and AUX terminal count are provided?
It uses push-in terminals and provides 10 AUX terminals.
5. What BU type is specified for this SIPLUS ET 200SP configuration?
BU type A0.
6. What are the provided dimensions?
WxH: 15 mm x141 mm.
