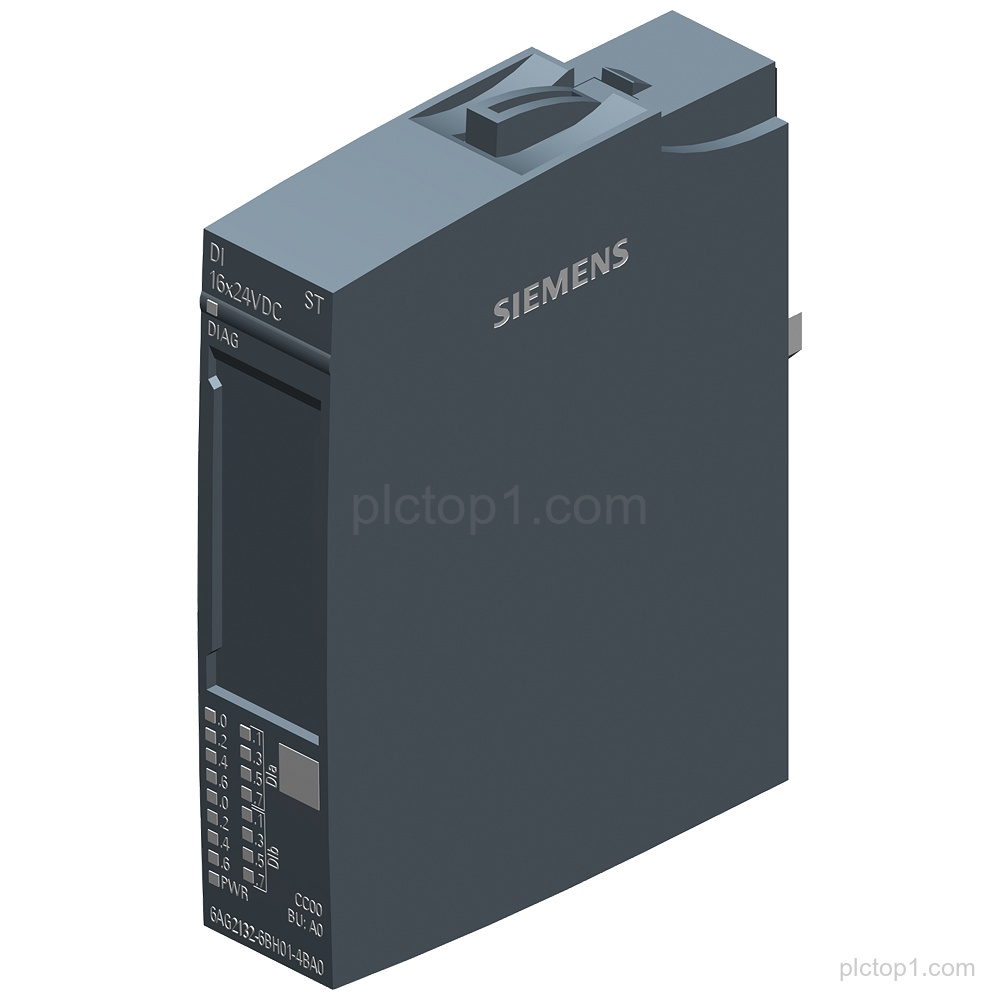

SIPLUS ET 200SP DI 16x24VDC ST rail based on 6ES7131-6BH01-0BA0: Part number 6AG2131-6BH01-4BA0 provides digital input functionality with conformal coating and module diagnostics for wire break and supply voltage.
Detailed Parameters
Part number:6AG2131-6BH01-4BA0
Product family:SIPLUS ET 200SP
Rail-based version:ST rail
Based on:6ES7131-6BH01-0BA0
Conformal coating:yes
Operating temperature:-40…+70 °C
Temperature class / OT4:OT4
Permitted higher temperature:+85 °C for 10 minutes
Temperature setting:ST1/2
Channel count:16
Signal type / function:digital input module
Input voltage:24VDC
Suitable for BU type:A0
Color code:CC00
Input type:3 (IEC 61131)
Input behavior:sink input (PNP, sinking input)
Input delay:0.05..20 ms
Module diagnostics:wire break, supply voltage
Engineering Context
The SIPLUS ET 200SP DI 16x24VDC ST rail module provides 16 digital inputs with sink input (PNP, sinking input).
The module is based on 6ES7131-6BH01-0BA0 and is supplied with conformal coating.
Module diagnostics include wire break and supply voltage.
FAQ
1. What is the module function of 6AG2131-6BH01-4BA0?
It is a digital input module.
2. How many digital input channels does 6AG2131-6BH01-4BA0 provide?
It provides 16 inputs.
3. What input voltage range/type is specified for 6AG2131-6BH01-4BA0?
It is specified as 24VDC with input type 3 (IEC 61131).
4. Is the input configured as sourcing or sinking?
It is a sink input (PNP, sinking input).
5. What is the specified input delay range for 6AG2131-6BH01-4BA0?
0.05..20 ms.
6. Which diagnostics are available on the module?
Wire break and supply voltage diagnostics are provided at module level.
7. What operating temperature range is specified for the module?
-40…+70 °C, with +85 °C for 10 minutes.
