Product information

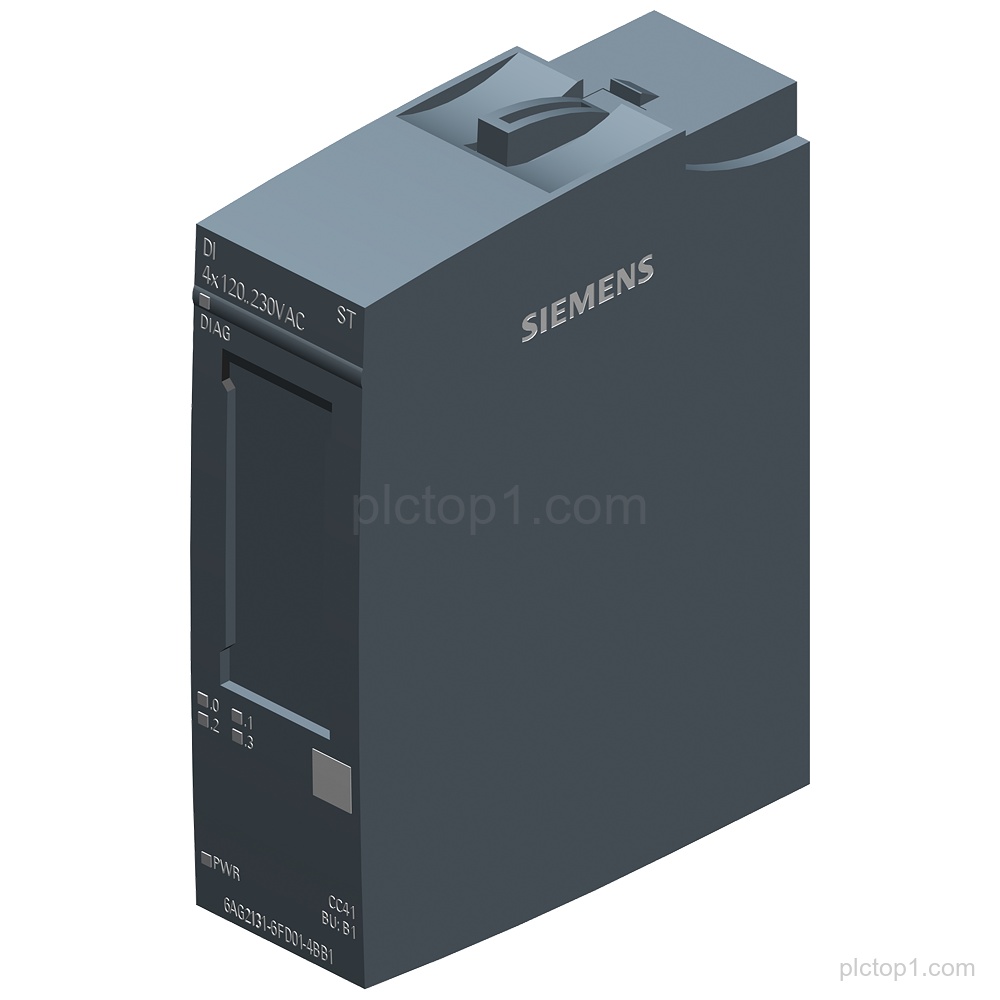

SIPLUS ET 200SP DI 4×120/230VAC TX rail digital input module; part number 6AG2131-6FD01-4BB1, based on 6ES7131-6FD01-0BB1 with conformal coating.
Detailed Parameters
Part number:6AG2131-6FD01-4BB1
Product family:SIPLUS ET 200SP DI
Module function:digital input module
Input type / channel count:4×120/230VAC
TX rail:TX rail based on 6ES7131-6FD01-0BB1
Conformal coating:with conformal coating
Suitable for BU type B1:yes
Operating temperature:-40…+70 °C
OT4 with ST1/2:ST1/2 (+85 °C for 10 minutes)
Color code:CC41
Module diagnostics:input type 3 (IEC 61131)
Engineering Context
The SIPLUS ET 200SP DI module 6AG2131-6FD01-4BB1 is provided as a digital input module for a 4×120/230VAC input configuration.
The module is based on 6ES7131-6FD01-0BB1 and is supplied with conformal coating for the specified temperature range.
Module diagnostics are specified with input type 3 (IEC 61131).
FAQ
1. What is the input configuration of SIPLUS ET 200SP DI 6AG2131-6FD01-4BB1?
It is a digital input module with 4×120/230VAC.
2. What is the temperature range specified for 6AG2131-6FD01-4BB1?
It is specified for -40…+70 °C, and OT4 with ST1/2 (+85 °C for 10 minutes).
3. Is conformal coating included in the module 6AG2131-6FD01-4BB1?
Yes, it is specified as with conformal coating.
4. What module diagnostics input type is specified for 6AG2131-6FD01-4BB1?
Module diagnostics are specified as input type 3 (IEC 61131).
5. What is the base reference for SIPLUS ET 200SP DI 6AG2131-6FD01-4BB1?
It is stated as TX rail based on 6ES7131-6FD01-0BB1.
