Product information

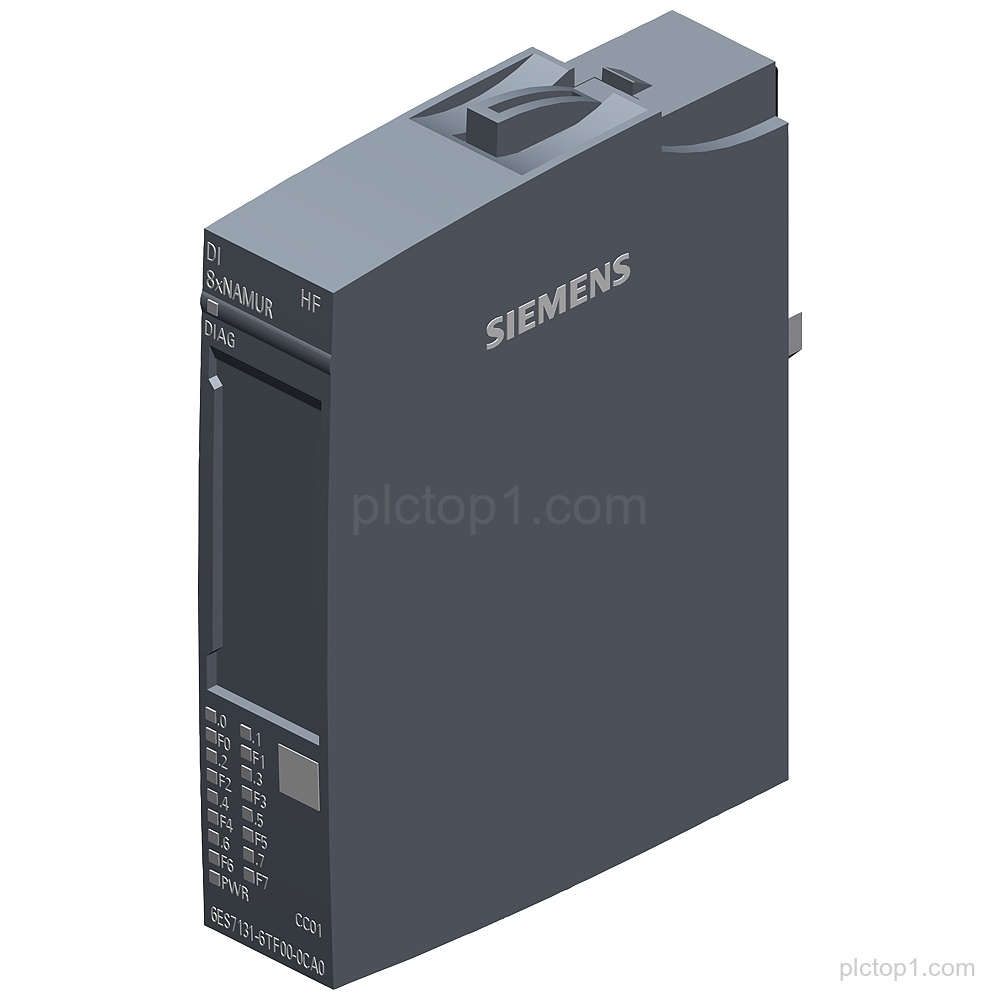

SIPLUS ET 200SP DI 8x NAMUR HF TX rail based with conformal coating (part number 6AG2131-6TF00-4CA0) provides digital inputs with channel diagnostics for suitable BU type A0 systems.
Detailed Parameters
Part number:6AG2131-6TF00-4CA0
Product family / designation:SIPLUS ET 200SP DI 8x NAMUR HF TX
Based on:6ES7131-6TF00-0CA0
Module type:digital input module
Channels:8
Temperature range:-40…+70 °C
OT4 with ST1/2:+85 °C for 10 minutes
Conformal coating:Yes
BU type suitability:suitable for BU type A0
Color code:CC01
Diagnostics:channel diagnostics
Engineering Context
SIPLUS ET 200SP DI 8x NAMUR HF TX is a rail based digital input module intended for suitable BU type A0 configurations.
The module supports channel diagnostics for the 8 digital input channels.
The conformal coating version is specified with -40…+70 °C operation and OT4 with ST1/2 temperature limit +85 °C for 10 minutes.
FAQ
1. What is the module type and channel count for 6AG2131-6TF00-4CA0?
It is a digital input module with 8 channels.
2. Is 6AG2131-6TF00-4CA0 rail based and conformally coated?
Yes, it is rail based and specified with conformal coating.
3. For which BU type is 6AG2131-6TF00-4CA0 suitable?
It is suitable for BU type A0.
4. What diagnostic capability is specified for this module?
Channel diagnostics.
5. What temperature specifications are provided for 6AG2131-6TF00-4CA0?
The specified temperature range is -40…+70 °C, and OT4 with ST1/2 allows +85 °C for 10 minutes.
6. What Siemens base product designation is 6AG2131-6TF00-4CA0 based on?
It is based on 6ES7131-6TF00-0CA0.
