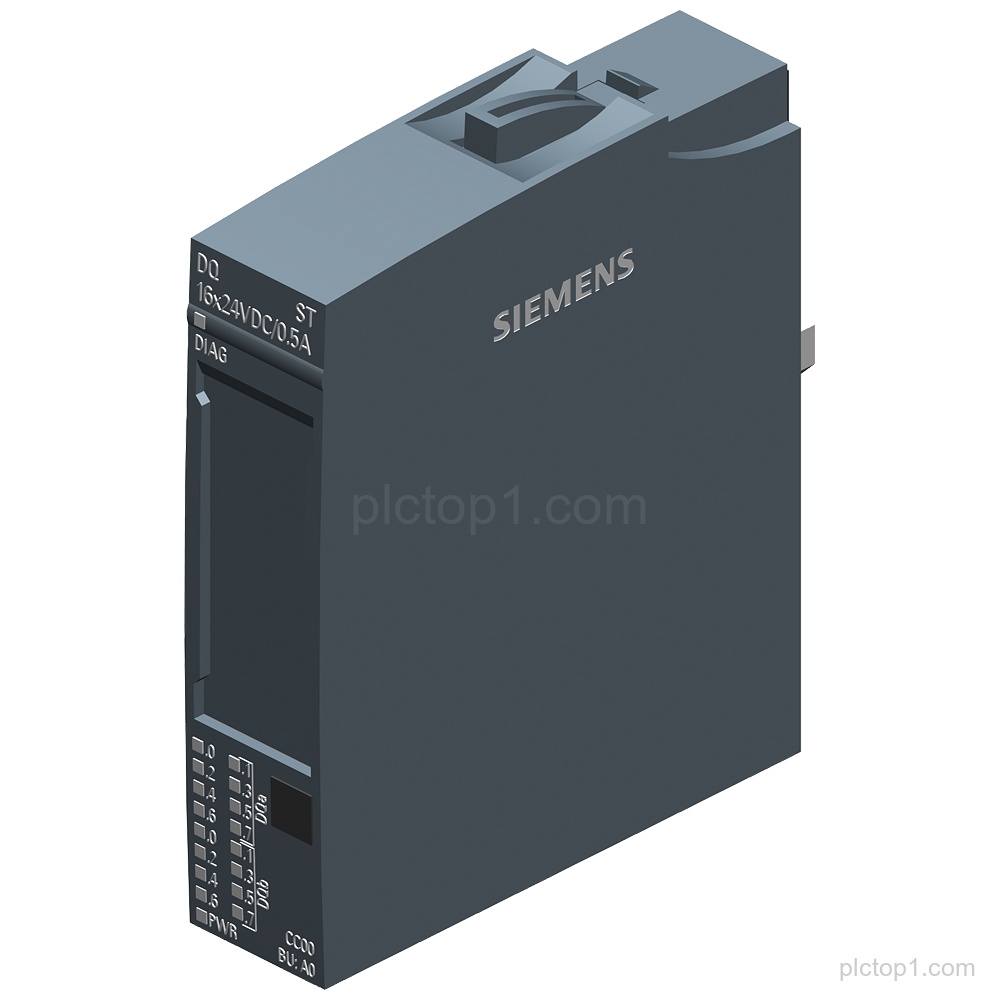

SIPLUS ET 200SP DQ 16x24VDC/ 0.5A TX rail based on 6ES7132-6BH01-0BA0: part number 6AG2132-6BH01-4BA0. This digital output module includes conformal coating and supports substitute value output, with module diagnostics for short circuit to L+ and M, wire break, and supply voltage.
Detailed Parameters
Product designation:SIPLUS ET 200SP DQ 16x24VDC/ 0.5A TX rail
Based on:6ES7132-6BH01-0BA0
Conformal coating:Yes
Operating temperature range:-40…+70 °C
OT4 with ST1/2:OT4 with ST1/2 (+85 °C for 10 minutes)
Output type:source output (PNP, sourcing output)
Substitute value output:Yes
Suitable for:BU type A0
Color code:CC00
Module diagnostics for:short circuit to L+ and M; wire break; supply voltage
Engineering Context
The SIPLUS ET 200SP DQ 16x24VDC/0.5A TX rail design provides source output (PNP, sourcing output) functionality for digital outputs.
Conformal coating is provided for the module based on 6ES7132-6BH01-0BA0.
Module diagnostics cover short circuit to L+ and M, wire break, and supply voltage.
FAQ
1. What is the module family and function of part number 6AG2132-6BH01-4BA0?
SIPLUS ET 200SP DQ 16x24VDC/0.5A TX rail based on 6ES7132-6BH01-0BA0, implemented as a digital output module.
2. What output type does the module support?
Source output (PNP, sourcing output).
3. Does the module provide a substitute value output?
Yes, it supports substitute value output.
4. What module diagnostics are included?
Diagnostics for short circuit to L+ and M, wire break, and supply voltage.
5. What temperature range is specified for the module?
Operating temperature range is -40…+70 °C, with OT4 with ST1/2 (+85 °C for 10 minutes).
6. For which BU type is the module specified?
Suitable for BU type A0.
