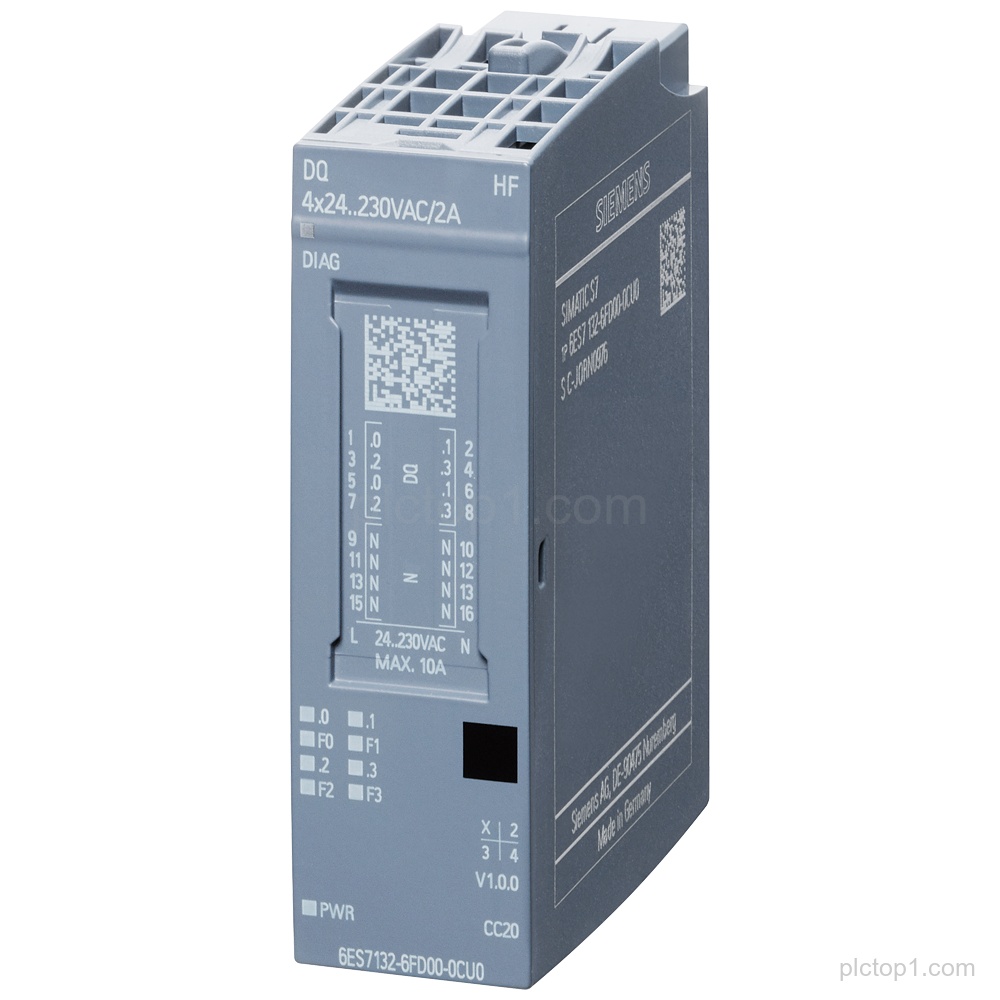

SIPLUS ET 200SP DQ 4×24..230VAC TX rail based digital output module, part number 6AG2132-6FD00-4CU0, based on 6ES7132-6FD00-0CU0 with conformal coating and channel diagnostics; supports two alternative operating modes: DQ and power control.
Detailed Parameters
Part number:6AG2132-6FD00-4CU0
Product family / designation:SIPLUS ET 200SP DQ 4×24..230VAC TX rail based
Based on:6ES7132-6FD00-0CU0
Conformal coating:Yes
Operating temperature range:-40…+70 °C
Operating mode / variant:OT4 with ST1/2 (+85 °C for 10 minutes)
Module type:digital output module
Output channels:4
Output voltage:24..230VAC
Suitability:suitable for BU type U0
Color code:CC20
Channel diagnostics:two alternative operating modes: DQ and power control
Engineering Context
The SIPLUS ET 200SP DQ 4×24..230VAC TX rail based module provides digital outputs with four channels and channel diagnostics.
The module supports two alternative operating modes: DQ and power control.
The module is suitable for BU type U0 and uses color code CC20.
FAQ
1. What is the module part number and designation?
The part number is 6AG2132-6FD00-4CU0 and the designation is SIPLUS ET 200SP DQ 4×24..230VAC TX rail based digital output module.
2. How many digital output channels are included, and what output voltage range is specified?
It is a 4-channel digital output module with 24..230VAC.
3. Is conformal coating included?
Yes, the module is based on 6ES7132-6FD00-0CU0 with conformal coating.
4. What temperature conditions are specified?
The module is specified for -40…+70 °C and OT4 with ST1/2 (+85 °C for 10 minutes).
5. What operating modes are available for diagnostics and control?
It specifies two alternative operating modes: DQ and power control.
6. Which BU type is the module suitable for, and what is the color code?
It is suitable for BU type U0 and has color code CC20.
