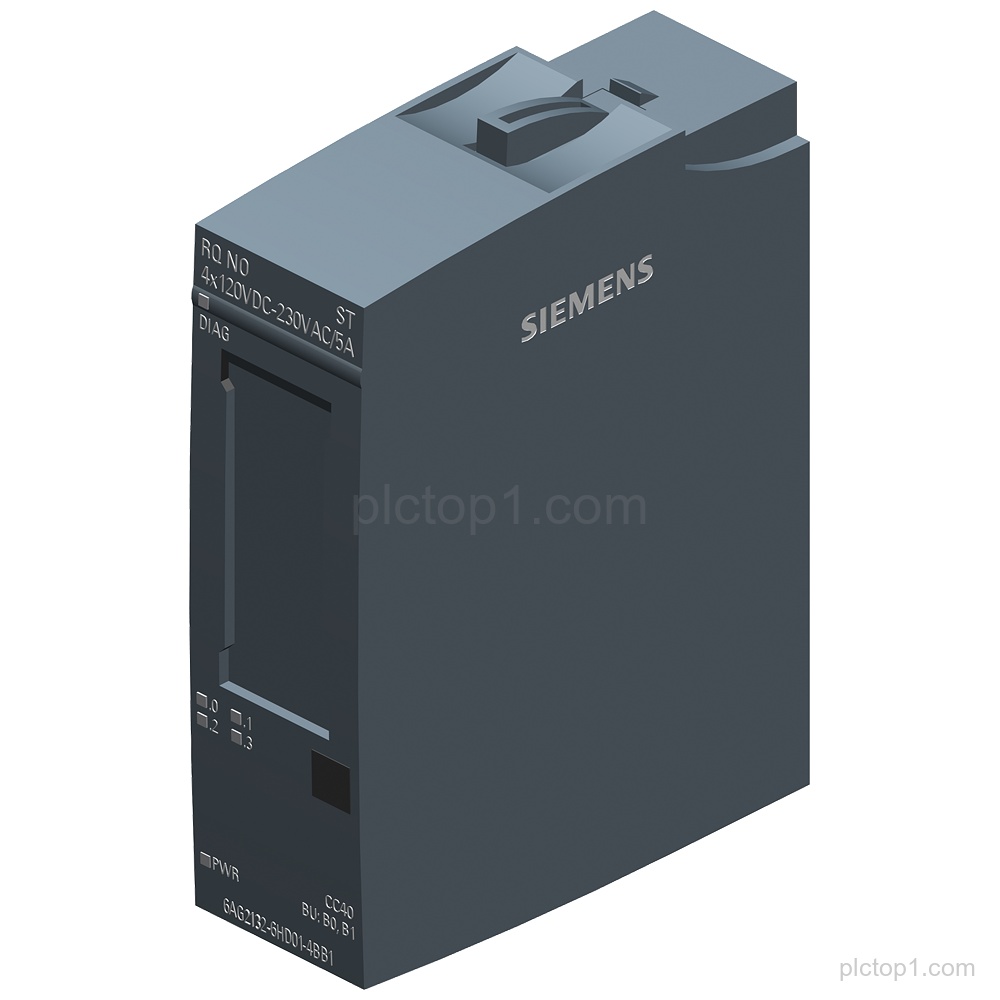

SIPLUS ET 200SP RQ 6AG2132-6HD01-4BB1 is a rail based relay module based on 6ES7132-6HD01-0BB1 with conformal coating and module diagnostics for supply voltage.
Detailed Parameters
Product designation:SIPLUS ET 200SP RQ
Part number:6AG2132-6HD01-4BB1
Rail basis:rail based on 6ES7132-6HD01-0BB1
Conformal coating:with conformal coating
Operating temperature range:-40…+70 °C
OT4 / short-term threshold:OT4 with ST1/2 (+85 °C for 10 minutes)
Supply / signal designation:4x120VDC/230 TX
Relay type:relay module normally open
Suitability for BU type:suitable for BU type B0 or B1
Color code:CC40
Substitute value output:substitute value output
Module diagnostics:module diagnostics for: supply voltage
Engineering Context
The SIPLUS ET 200SP RQ rail based module is based on 6ES7132-6HD01-0BB1 and includes conformal coating.
The relay module is specified as normally open and is suitable for BU type B0 or B1.
Module diagnostics are provided for supply voltage, and substitute value output is supported.
FAQ
1. What is the product family and designation for part 6AG2132-6HD01-4BB1?
SIPLUS ET 200SP RQ.
2. Is the relay module normally open or normally closed?
It is specified as a relay module normally open.
3. What is the temperature range and the OT4/ST1/2 threshold?
Operating temperature is -40…+70 °C, and OT4 with ST1/2 allows +85 °C for 10 minutes.
4. Which system basis is used for this rail module?
It is rail based on 6ES7132-6HD01-0BB1.
5. For which BU types is the module suitable?
It is suitable for BU type B0 or B1.
6. What diagnostics does the module provide?
Module diagnostics for supply voltage.
