Product information

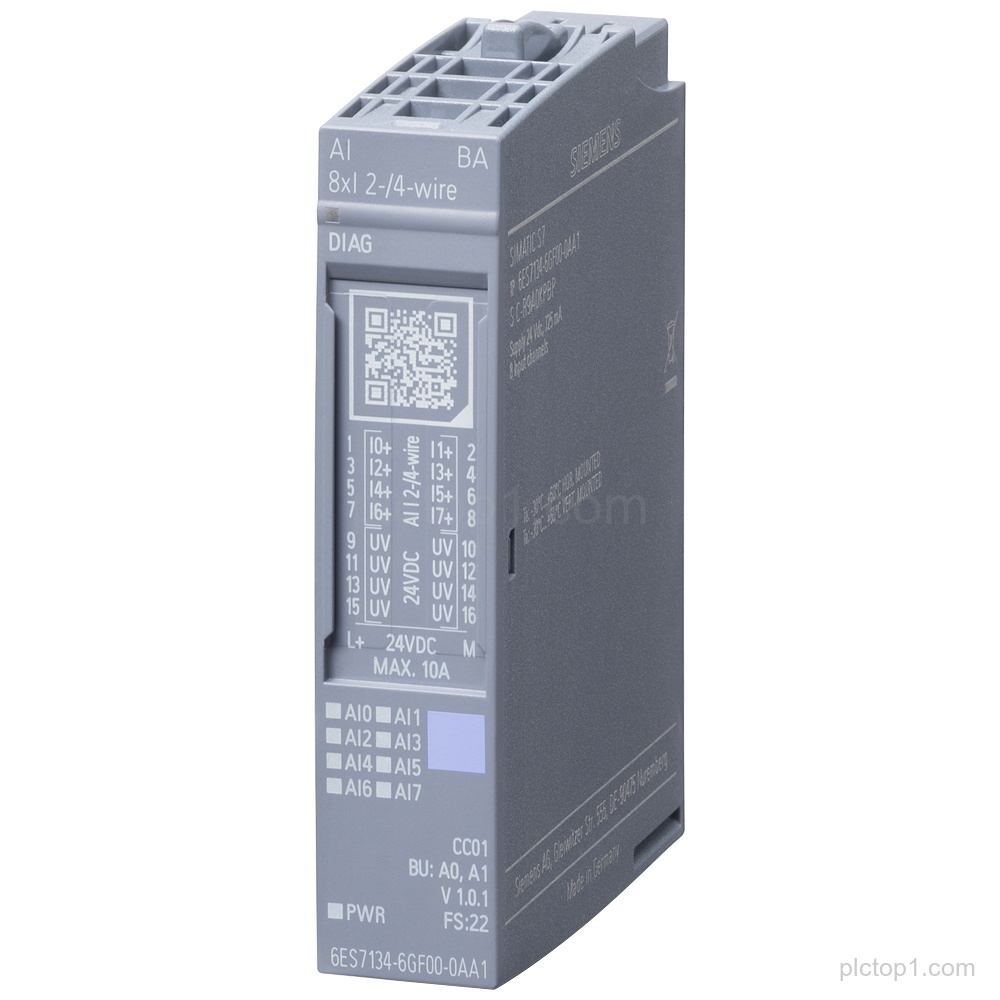

SIPLUS ET 200SP AI analog input module, Part Number 6AG2134-6GF00-4AA1, based on 6ES7134-6GF00-0AA1 with conformal coating.
Detailed Parameters
Based on:6ES7134-6GF00-0AA1
Conformal coating:Yes
Function:Analog input module
Channel configuration:8xI 2-/4-wire BA
Temperature range:-40…+70 °C
OT4:OT4 with ST1/2 (+85 °C for 10 minutes)
Suitable for BU type:BU type A0, A1
Color code:CC01
Module diagnostics:Yes
Resolution:16 bit
Engineering Context
The SIPLUS ET 200SP AI analog input module provides 8xI 2-/4-wire BA input channels based on 6ES7134-6GF00-0AA1.
The module supports operation within -40…+70 °C and OT4 with ST1/2 (+85 °C for 10 minutes).
Module diagnostics are provided for the analog input module.
FAQ
1. What is the product family and function of 6AG2134-6GF00-4AA1?
6AG2134-6GF00-4AA1 is a SIPLUS ET 200SP AI analog input module.
2. How many analog input channels and what wiring configuration does the module support?
The module is specified as 8xI with 2-/4-wire BA.
3. What resolution is specified for the analog input module?
The module is specified with 16 bit resolution.
4. Does the module include diagnostics?
Yes, module diagnostics are included.
5. What temperature limits are specified?
The module is specified for -40…+70 °C and OT4 with ST1/2 (+85 °C for 10 minutes).
6. Which BU types is the module suitable for, and what color code applies?
It is suitable for BU type A0, A1, with color code CC01.
7. Is conformal coating included?
Yes, the product is based on 6ES7134-6GF00-0AA1 with conformal coating.
