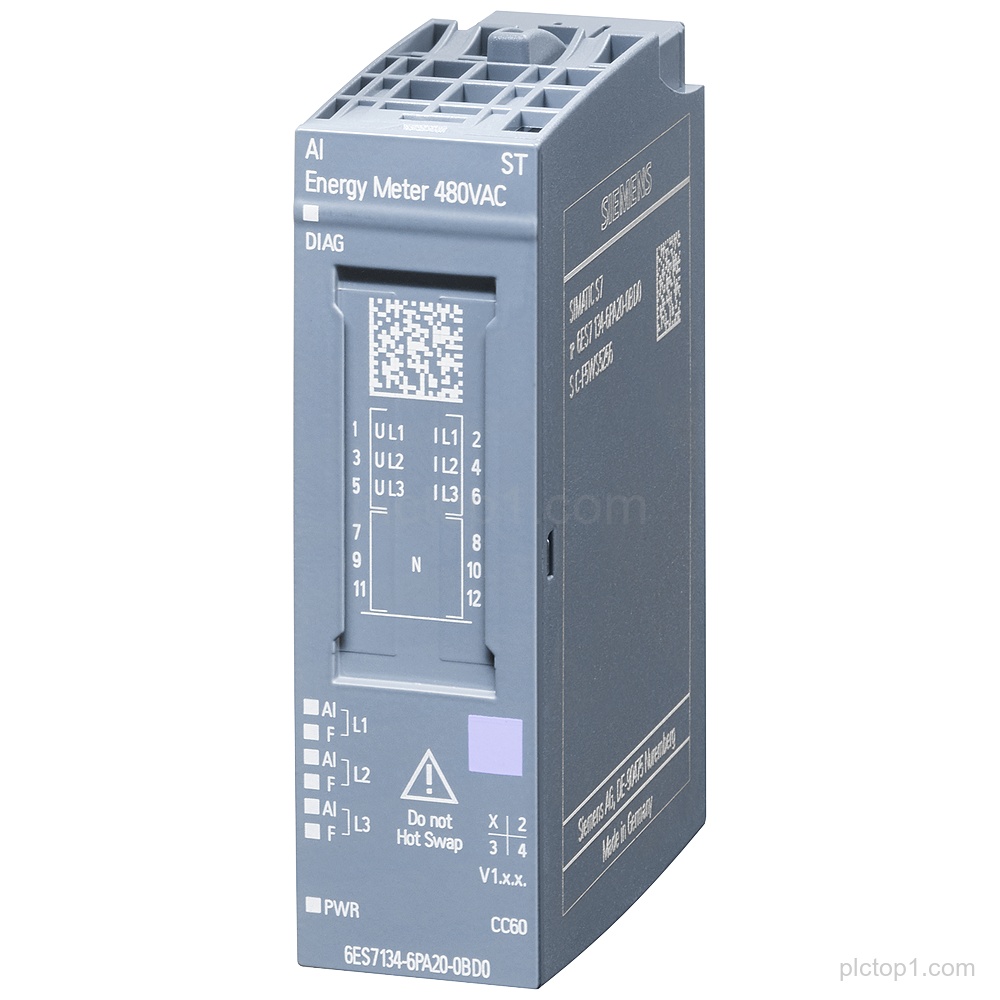

SIPLUS ET 200SP AI Energy Meter (Part number: 6AG2134-6PA20-4BD0) is a TX rail based analog input module with conformal coating, designed for channel diagnostics and suitable for BU type D0.
Detailed Parameters
Part number:6AG2134-6PA20-4BD0
Product family / designation:SIPLUS ET 200SP AI Energy Meter
Based on:6ES7134-6PA20-0BD0
Rail type:TX rail based
Conformal coating:with conformal coating
Operating temperature:-40…+70 °C
OT4:OT4 with ST1/2 (+85 °C for 10 minutes)
Module type:analog input module
Suitable for BU type:BU type D0
Channel diagnostics:channel diagnostics
Rated supply voltage:480VAC
Engineering Context
The SIPLUS ET 200SP AI Energy Meter implements analog input functionality in a TX rail based ET 200SP configuration.
Conformal coating is provided for the module, supporting operation over -40…+70 °C and OT4 with ST1/2 (+85 °C for 10 minutes).
Channel diagnostics are supported for the analog input module, and the module is suitable for BU type D0.
FAQ
1. What is the product family and function of 6AG2134-6PA20-4BD0?
6AG2134-6PA20-4BD0 is a SIPLUS ET 200SP AI Energy Meter analog input module.
2. What is the module based on?
It is based on 6ES7134-6PA20-0BD0.
3. What rail and coating are specified for this module?
It is TX rail based and with conformal coating.
4. What temperature ranges are specified?
Operating temperature is -40…+70 °C, and OT4 with ST1/2 (+85 °C for 10 minutes) is specified.
5. Which BU type is the module suitable for?
It is suitable for BU type D0.
6. Does the module support diagnostics?
Yes, channel diagnostics are provided.
