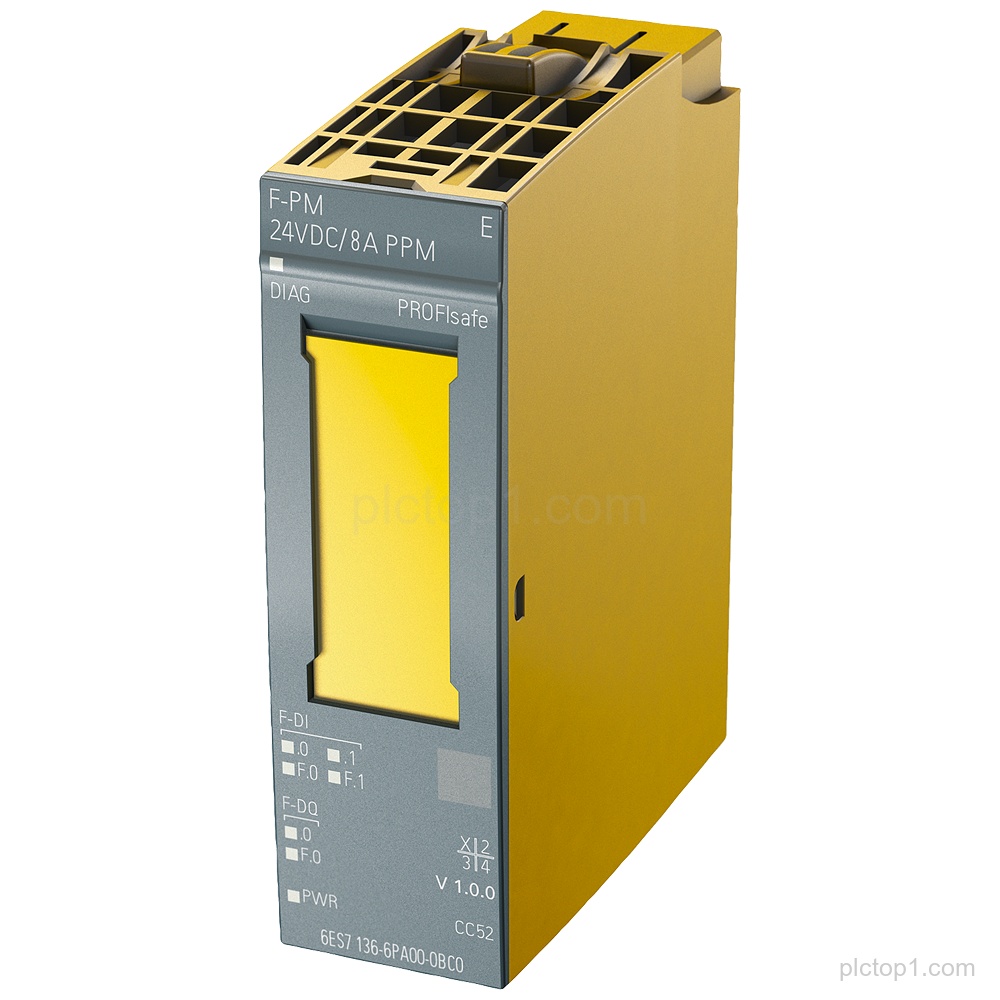

SIPLUS ET 200SP F-PM-E (Part Number: 6AG2136-6PA00-1BC0) is a fail-safe power module PROFIsafe for PPM rail based on 6ES7136-6PA00-0BC0 with conformal coating.
Detailed Parameters
Product family / designation:SIPLUS ET 200SP F-PM-E
Fail-safe function (system level statement):24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3
Fail-safe type:fail-safe power module PROFIsafe
Base module reference:based on 6ES7136-6PA00-0BC0
Mounting / rail:PPM rail
Conformal coating:with conformal coating
Temperature range:-30…+60 °C
OT1 / ST1/2 condition:OT1 with ST1/2 (+70 °C for 10 minutes)
Safe digital inputs:2 safe digital inputs
Safe digital output:1 safe digital output PPM
Input/output voltage:24VDC
Current rating:8A
Engineering Context
The F-PM-E module provides PROFIsafe fail-safe power for 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3.
The module is configured as a PPM rail based on 6ES7136-6PA00-0BC0 and includes conformal coating.
Use the specified temperature conditions including OT1 with ST1/2 (+70 °C for 10 minutes).
FAQ
1. What is the function of SIPLUS ET 200SP F-PM-E 6AG2136-6PA00-1BC0?
It is a fail-safe power module PROFIsafe that enables 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3.
2. How many safe digital inputs and safe digital outputs does 6AG2136-6PA00-1BC0 provide?
It provides 2 safe digital inputs and 1 safe digital output PPM.
3. What is the temperature specification for 6AG2136-6PA00-1BC0?
It is specified for -30…+60 °C and OT1 with ST1/2 (+70 °C for 10 minutes).
4. What is the reference base module for the F-PM-E 6AG2136-6PA00-1BC0?
It is based on 6ES7136-6PA00-0BC0.
