Product information

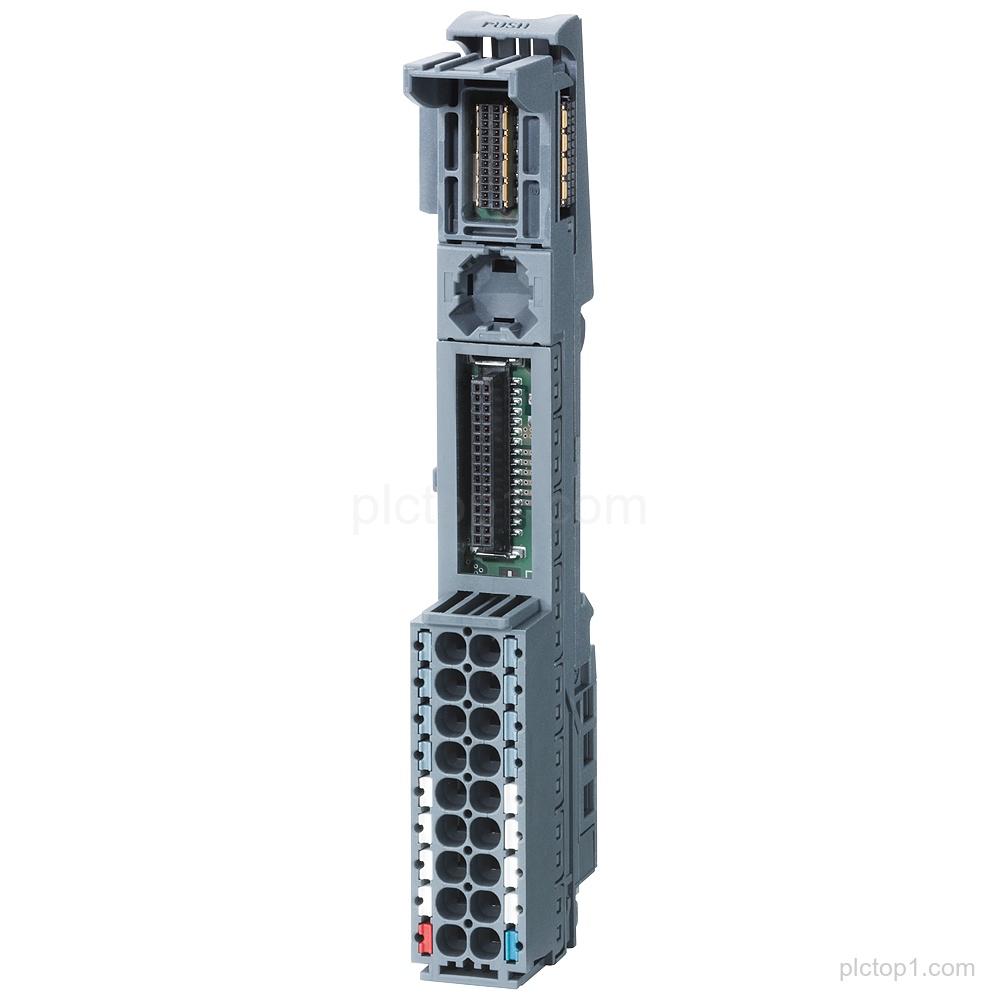

SIPLUS ET 200SP BU15-P16+A0+2B TX rail, part number 6AG2193-6BP00-4BA0, based on 6ES7193-6BP00-0BA0 with conformal coating.
Detailed Parameters
Base type:based on 6ES7193-6BP00-0BA0
Conformal coating:yes
Temperature range:-40…+70 °C
OT4 with ST1/2:OT4 with ST1/2 (+85 °C for 10 minutes)
BU type:A0
Terminal type:push-in terminals
AUX terminals:without AUX terminals
Bridging:bridged to the left
Dimensions (W x H):15 mm x 117 mm
Engineering Context
The SIPLUS ET 200SP BU15-P16+A0+2B TX rail is based on 6ES7193-6BP00-0BA0 with conformal coating.
Terminal execution is specified as push-in terminals with no AUX terminals.
The rail is specified with OT4 with ST1/2, including +85 °C for 10 minutes.
FAQ
1. What is the base reference for the SIPLUS ET 200SP BU15-P16+A0+2B TX rail 6AG2193-6BP00-4BA0?
It is based on 6ES7193-6BP00-0BA0.
2. Does the 6AG2193-6BP00-4BA0 rail have conformal coating?
Yes, it is provided with conformal coating.
3. What terminal type is used on 6AG2193-6BP00-4BA0?
It uses push-in terminals.
4. Does 6AG2193-6BP00-4BA0 include AUX terminals?
No, it is specified as without AUX terminals.
5. How is the rail bridged?
It is bridged to the left.
6. What temperature limits are specified for the rail?
The specified range is -40…+70 °C, with OT4 with ST1/2 (+85 °C for 10 minutes).
