Product information

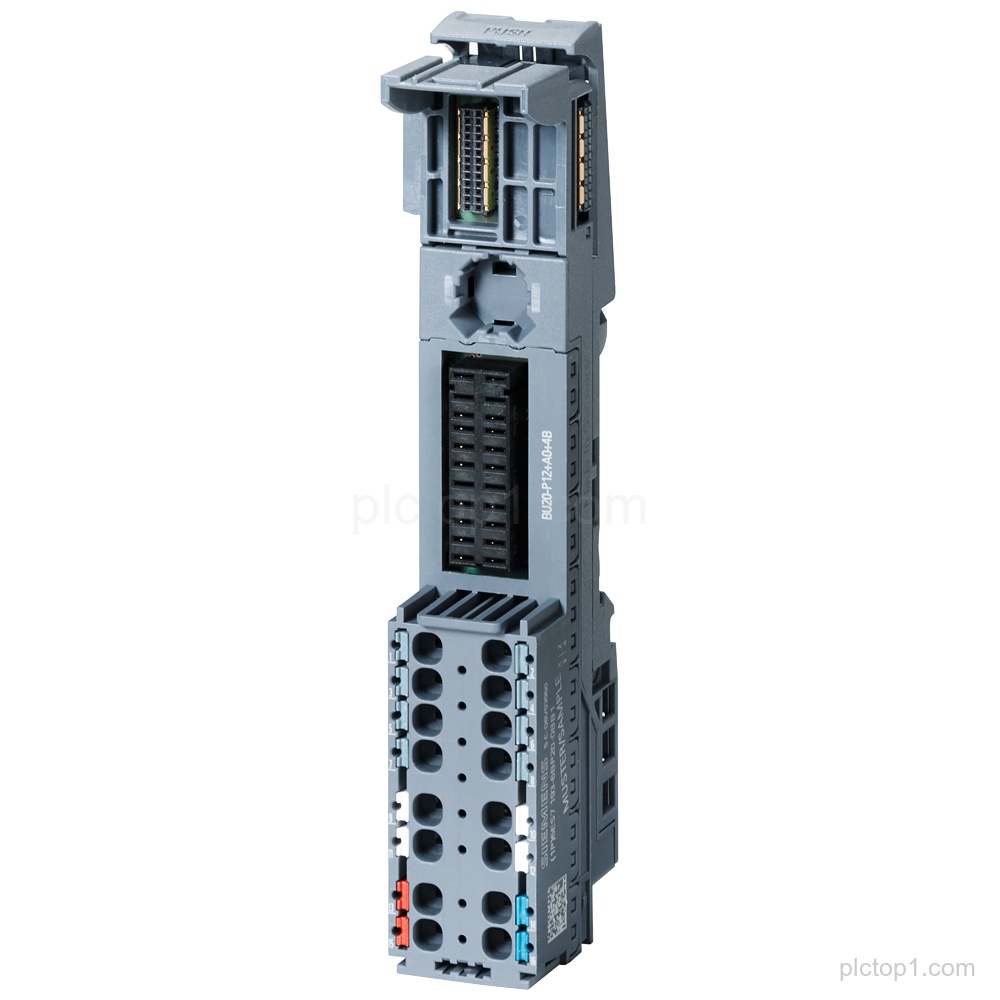

SIPLUS ET 200SP BU20-P12 + TX rail based on 6ES7193-6BP20-0BB1 with conformal coating (part number 6AG2193-6BP20-4BB1), designed for temperature acquisition.
Detailed Parameters
Conformal coating:Yes
Ambient temperature range:-40…+70 °C
OT4 temperature condition:OT4 with ST1/2 (+85 °C for 10 minutes)
BU type:BU type B1
Terminal type:Push-in terminals
AUX terminals:Without AUX terminals
Load group:New load group
Temperature acquisition:With temperature acquisition
Width x Height:15 mm x 117 mm
Base reference:Based on 6ES7193-6BP20-0BB1
Engineering Context
The SIPLUS ET 200SP BU20-P12 + TX rail is based on 6ES7193-6BP20-0BB1 and includes conformal coating.
Temperature acquisition is supported as indicated by the product information.
The rail is specified with push-in terminals and is provided without AUX terminals.
FAQ
1. What is the part number of this SIPLUS ET 200SP BU20-P12 + TX rail?
6AG2193-6BP20-4BB1.
2. What is the base reference this rail is based on?
6ES7193-6BP20-0BB1.
3. Does the rail include conformal coating?
Yes, with conformal coating.
4. What terminal type is used?
Push-in terminals.
5. Does it include AUX terminals?
No, it is without AUX terminals.
6. What temperature ranges are specified?
Ambient temperature range is -40…+70 °C, and OT4 with ST1/2 includes (+85 °C for 10 minutes).
7. Is temperature acquisition included?
Yes, with temperature acquisition.
