Product information

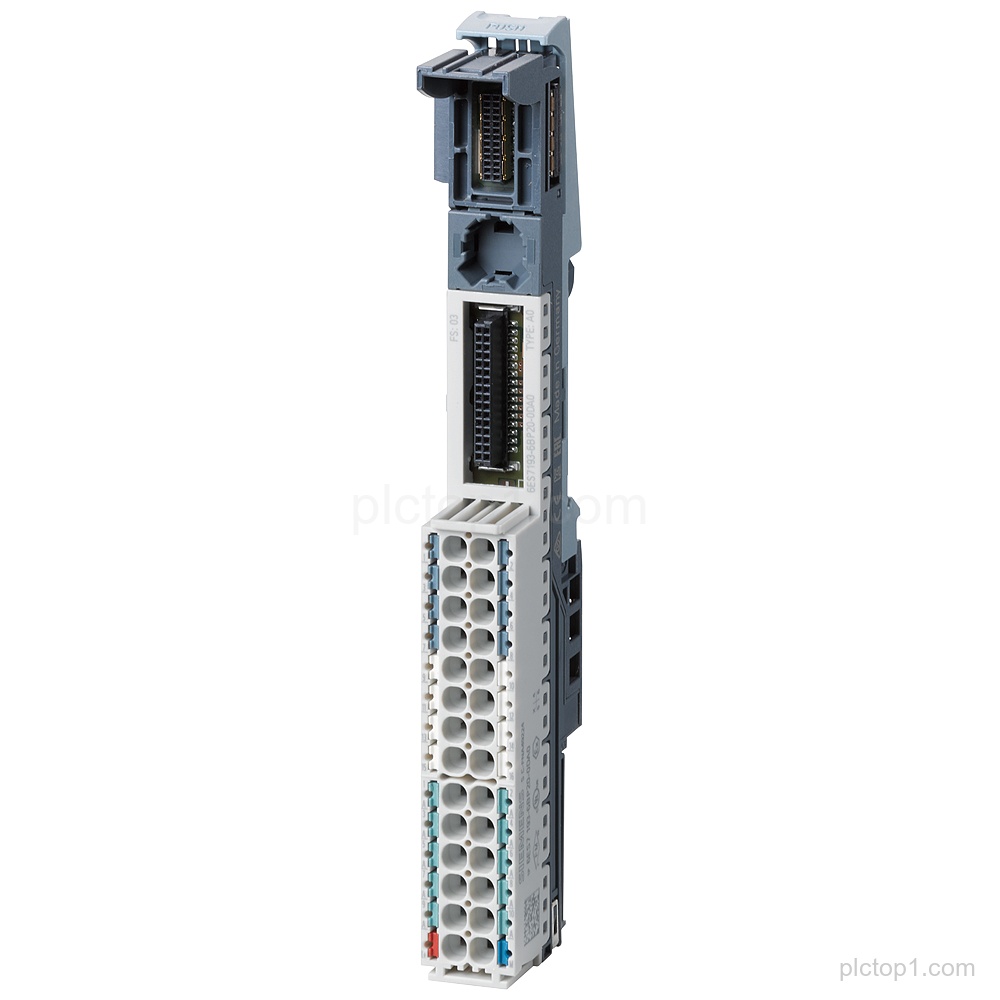

SIPLUS ET 200SP BU15-P16+A10+2D TX rail (part number 6AG2193-6BP20-4DA0) is based on 6ES7193-6BP20-0DA0 and is provided with conformal coating and push-in terminals.
Detailed Parameters
Based on:6ES7193-6BP20-0DA0
Conformal coating:Yes
Temperature range:-40…+70 °C
OT4 with ST1/2:OT4 with ST1/2 (+85 °C for 10 minutes)
BU type:A0
Terminals:push-in terminals
AUX terminals:10 AUX terminals
Load group:new load group
Dimensions (WxH):15 mm x141 mm
Engineering Context
The SIPLUS ET 200SP BU15-P16+A10+2D TX rail is based on 6ES7193-6BP20-0DA0 and includes conformal coating.
The rail is specified for operation in the -40…+70 °C temperature range with OT4/ST1/2 conditions (+85 °C for 10 minutes).
The design uses BU type A0 with push-in terminals and provides 10 AUX terminals.
FAQ
1. What is the basis of the SIPLUS ET 200SP BU15 TX rail 6AG2193-6BP20-4DA0?
It is based on 6ES7193-6BP20-0DA0.
2. Does 6AG2193-6BP20-4DA0 include conformal coating?
Yes.
3. What terminal type is used for 6AG2193-6BP20-4DA0?
Push-in terminals.
4. How many AUX terminals are provided?
10 AUX terminals.
5. What temperature range is specified for the rail?
-40…+70 °C is specified.
6. What does OT4 with ST1/2 specify for 6AG2193-6BP20-4DA0?
OT4 with ST1/2 (+85 °C for 10 minutes).
