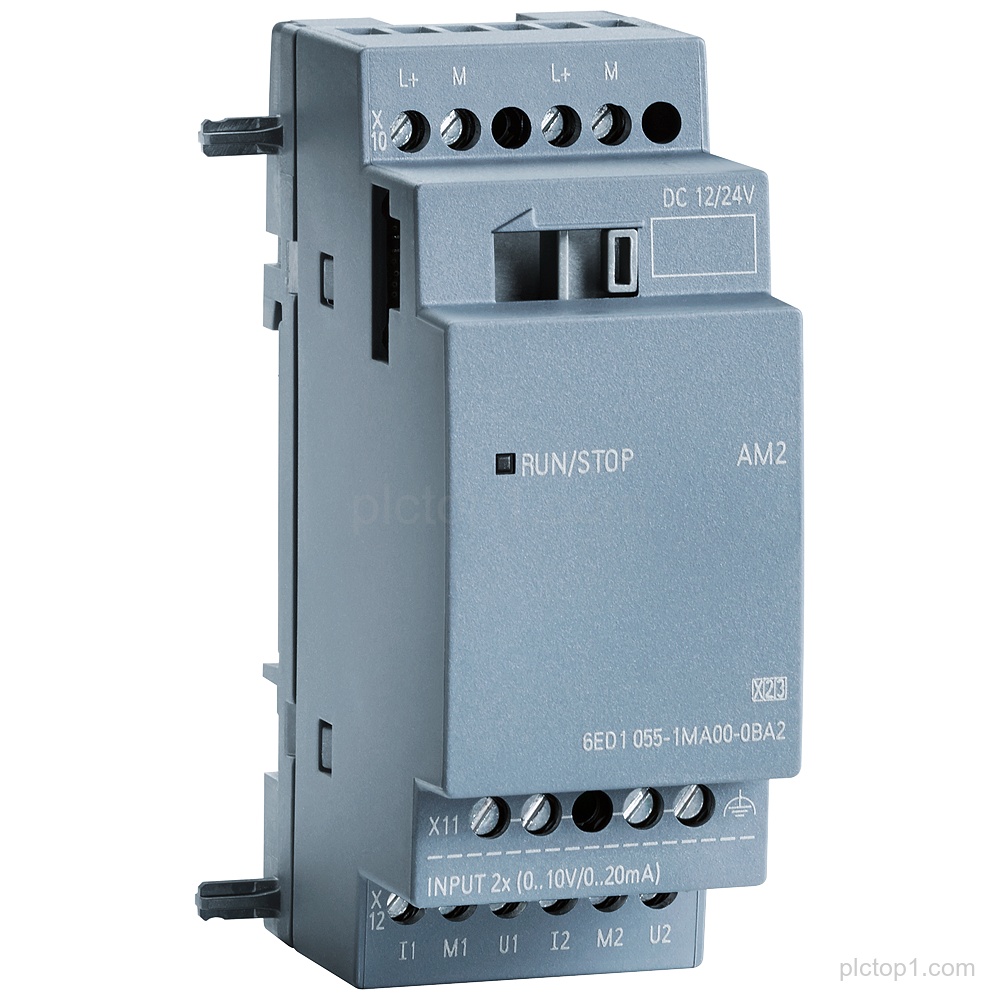

SIPLUS LOGO! AM2 (Part number: 6AG1055-1MA00-7BA2) is an expansion module based on 6ED1055-1MA00-0BA2 with conformal coating for LOGO! 8 analog input.
Detailed Parameters
Based on:6ED1055-1MA00-0BA2
Coating:conformal coating
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Module type:expansion module
Power supply (PS/):12/24 V DC
Analog inputs:2 AI
Analog input signal:0-10 V or 0/4-20 mA
For:LOGO! 8
Engineering Context
The SIPLUS LOGO! AM2 expansion module provides 2 AI analog input channels with 0-10 V or 0/4-20 mA signal types for LOGO! 8.
Conformal coating is specified for the AM2 variant based on 6ED1055-1MA00-0BA2.
The specified operating range is -40…+70 °C with start up at -25 °C.
FAQ
1. What is the product family and function of 6AG1055-1MA00-7BA2?
6AG1055-1MA00-7BA2 is a SIPLUS LOGO! AM2 expansion module for LOGO! 8 providing analog input channels.
2. How many analog input channels does the module provide?
The module provides 2 AI (analog inputs).
3. Which analog input signal ranges are supported?
The module supports 0-10 V or 0/4-20 mA.
4. What power supply voltage is specified for the module?
The module power supply is specified as PS/: 12/24 V DC.
5. Is conformal coating included?
Yes, the SIPLUS LOGO! AM2 is specified with conformal coating.
6. What temperature range is specified for operation and start up?
Operating temperature is -40…+70 °C and start up is -25 °C.
