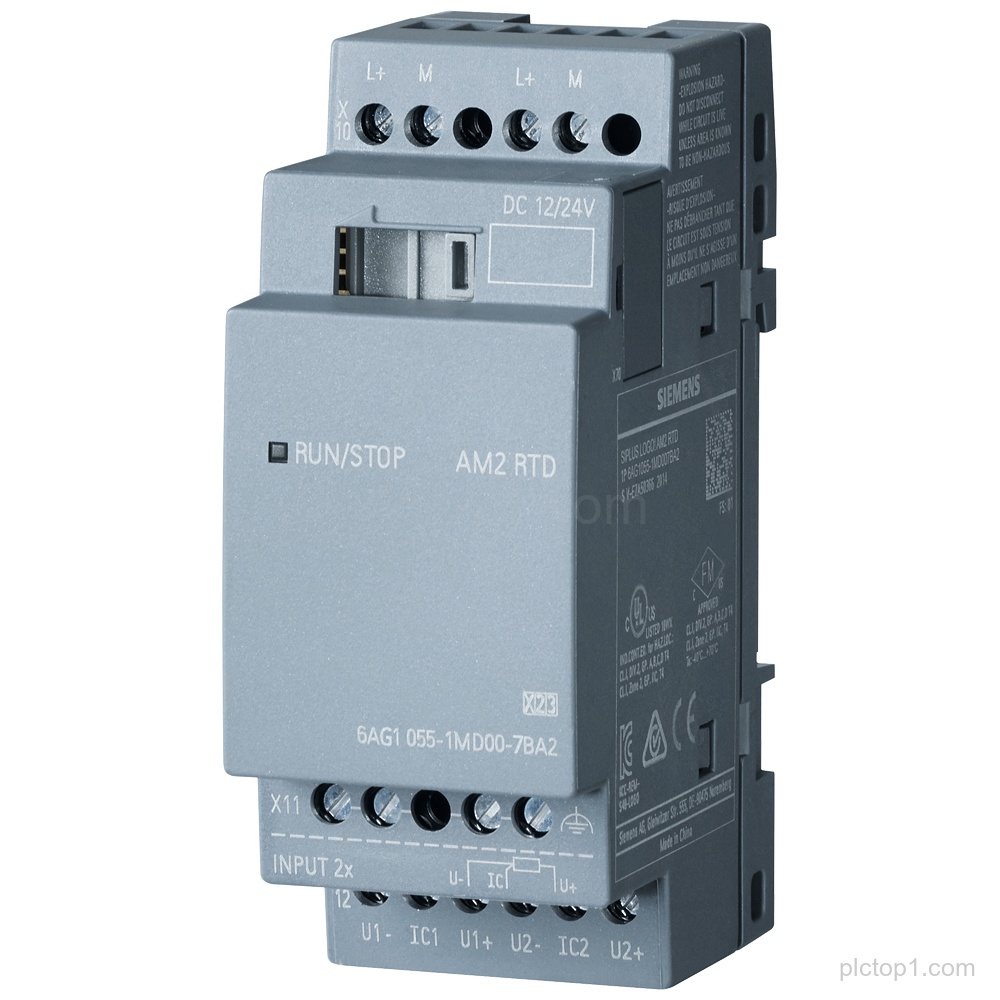

SIPLUS LOGO! AM2 RTD for LOGO! 8, Part number 6AG1055-1MD00-7BA2, based on 6ED1055-1MD00-0BA2 with conformal coating and temperature range -50…+200 °C for Pt100/1000 sensors.
Detailed Parameters
Based on:6ED1055-1MD00-0BA2
Coating:conformal coating
Ambient temperature:-40…+70 °C
Startup temperature:start up -25 °C
Module type:extension module
Power supply (PS):12/24 V DC
Analog inputs (AI):2
AI sensor type:Pt100/1000
AI measuring range:-50…+200 °C
System:for LOGO! 8
Engineering Context
The SIPLUS LOGO! AM2 RTD extension module for LOGO! 8 provides 2 analog inputs for Pt100/1000 sensors.
The module is based on 6ED1055-1MD00-0BA2 and includes conformal coating.
The specified operating ambient temperature range is -40…+70 °C with start up at -25 °C.
FAQ
1. What is the product family and official designation for part 6AG1055-1MD00-7BA2?
SIPLUS LOGO! AM2 RTD.
2. Which system is the 6AG1055-1MD00-7BA2 extension module intended for?
for LOGO! 8.
3. How many analog inputs does the module provide and what sensor types are supported?
2 AI inputs for Pt100/1000.
4. What is the specified measuring range for the AI inputs?
-50…+200 °C.
5. What is the module power supply (PS)?
12/24 V DC.
6. What coating is provided and what are the ambient and startup temperature specifications?
conformal coating; ambient temperature -40…+70 °C; start up -25 °C.
