Product information

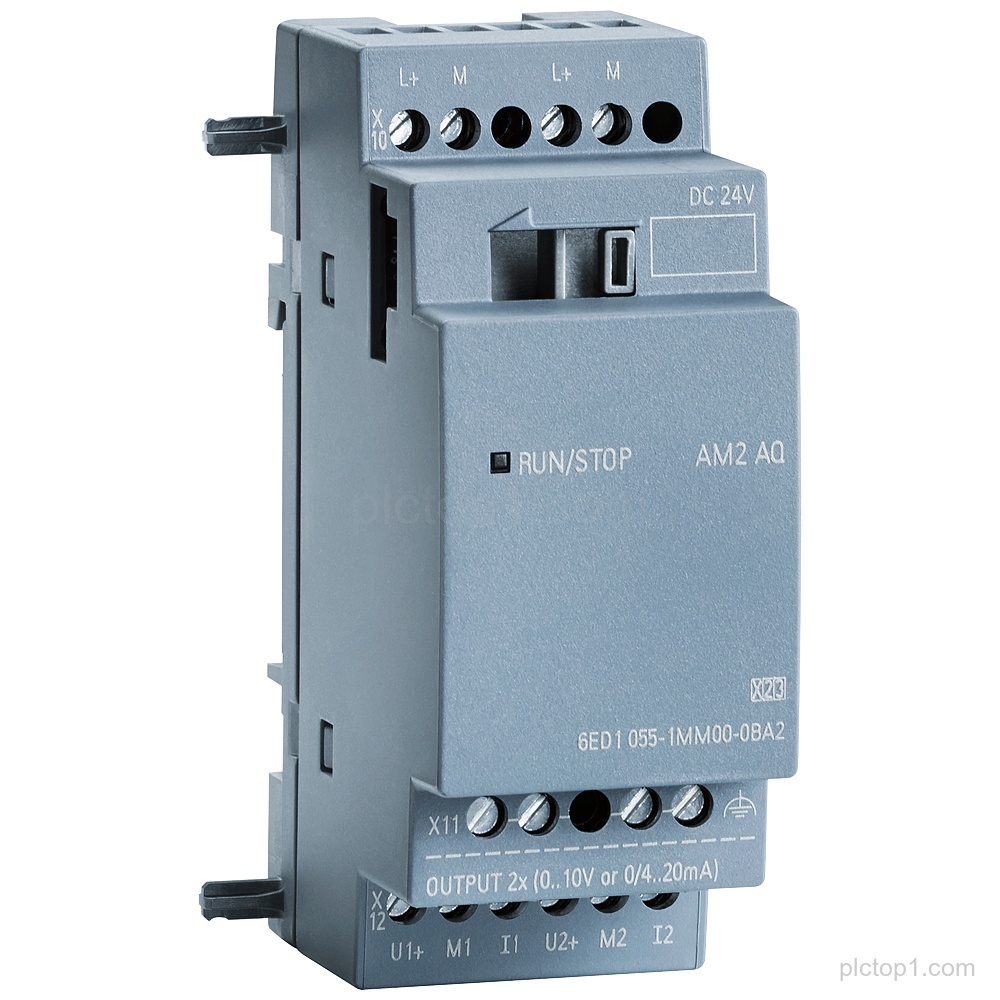

SIPLUS LOGO! AM2 AQ (part number 6AG1055-1MM00-7BA2) is based on 6ED1055-1MM00-0BA2 with conformal coating and is specified for -40…+70 °C operation including start up at -25 °C for LOGO! 8.
Detailed Parameters
Based on:6ED1055-1MM00-0BA2
Product:SIPLUS LOGO! AM2 AQ
Module type:Expansion module
Conformal coating:Yes
Operating temperature:-40…+70 °C
Start up temperature:-25 °C
Power supply (PS):24 V DC
Channel count:2 AQ
Analog input signal ranges:0-10 V, 0/4-20 mA
For:LOGO! 8
Engineering Context
The SIPLUS LOGO! AM2 AQ is an expansion module for LOGO! 8.
The module provides 2 AQ analog input channels with 0-10 V and 0/4-20 mA signal ranges.
SIPLUS LOGO! AM2 AQ is based on 6ED1055-1MM00-0BA2 and includes conformal coating for operation over -40…+70 °C with start up at -25 °C.
FAQ
1. What is the SIPLUS LOGO! AM2 AQ expansion module part number?
The part number is 6AG1055-1MM00-7BA2.
2. Which system is the module intended for?
It is for LOGO! 8.
3. How many AQ channels does the module have?
It has 2 AQ.
4. What analog input signal types and ranges does it support?
It supports 0-10 V and 0/4-20 mA.
5. What power supply is specified for the module?
PS: 24 V DC.
6. What temperature range is specified for operation and start up?
Operation: -40…+70 °C; start up: -25 °C.
