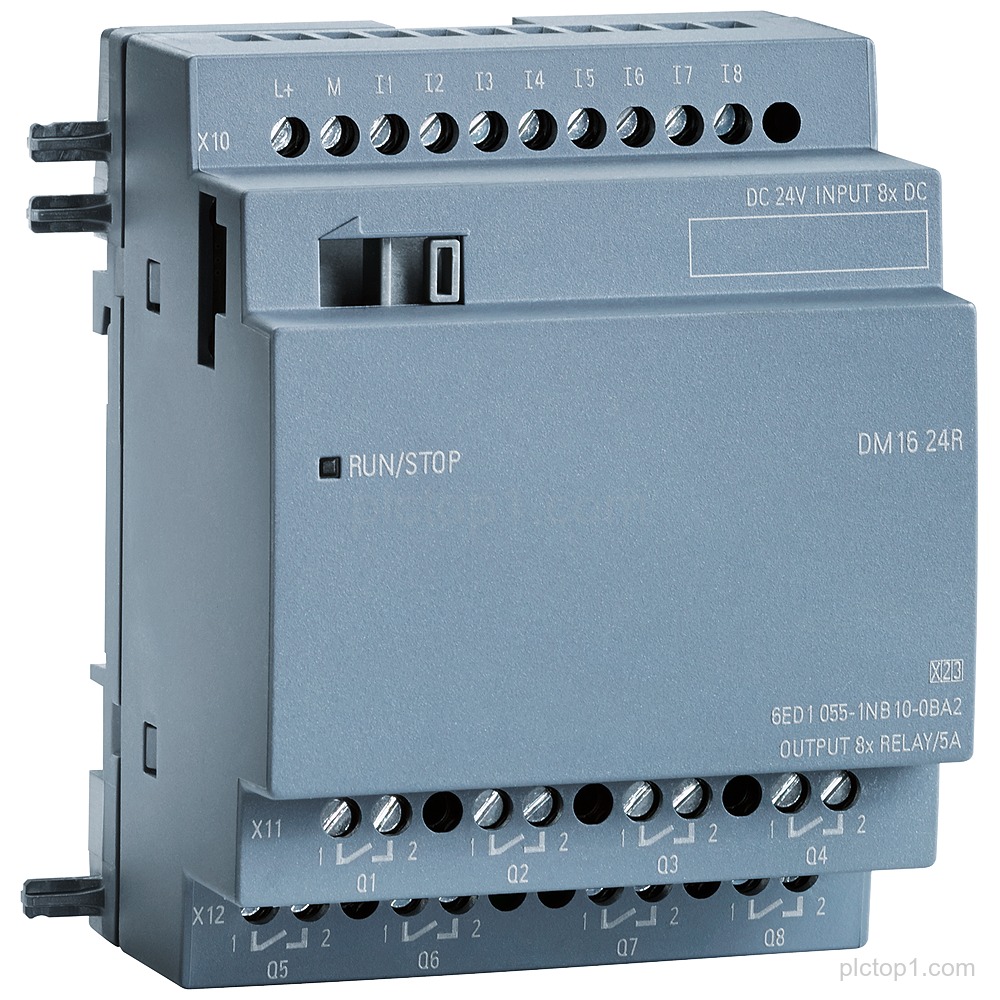

SIPLUS LOGO! DM16 24R based on 6ED1055-1NB10-0BA2 with conformal coating; part number 6AG1055-1NB10-7BA2 is specified for an operating range of -40…+70 °C and start up at -25 °C.
Detailed Parameters
Part number:6AG1055-1NB10-7BA2
Product designation:SIPLUS LOGO! DM16 24R
Based on:6ED1055-1NB10-0BA2
Coating:conformal coating
Operating temperature:-40…+70 °C
Start up temperature:-25 °C
Module type:expansion module
Power supply / I/O:24 V DC/24 V DC/relay
Digital inputs:8 DI
Digital outputs:8 DQ
Expansion capacity for LOGO! 8:4 MW
Engineering Context
The SIPLUS LOGO! DM16 24R is provided as an expansion module based on 6ED1055-1NB10-0BA2 with conformal coating.
The module power supply / I/O is specified as 24 V DC/24 V DC/relay with 8 DI and 8 DQ.
The specified operating range is -40…+70 °C with start up at -25 °C, and it is indicated as 4 MW for LOGO! 8.
FAQ
1. What is the module designation and module type for part number 6AG1055-1NB10-7BA2?
6AG1055-1NB10-7BA2 is a SIPLUS LOGO! DM16 24R expansion module.
2. What is the power supply / I/O type and how many I/O points does the module provide?
It is specified for power supply / I/O: 24 V DC/24 V DC/relay, with 8 DI and 8 DQ.
3. What temperature range and start-up temperature are specified for this module?
Operating temperature is -40…+70 °C, and start up is specified at -25 °C.
4. What is the conformal coating configuration relative to the base product?
SIPLUS LOGO! DM16 24R is based on 6ED1055-1NB10-0BA2 with conformal coating.
5. What expansion capacity is stated for LOGO! 8?
It is stated as 4 MW for LOGO! 8.
