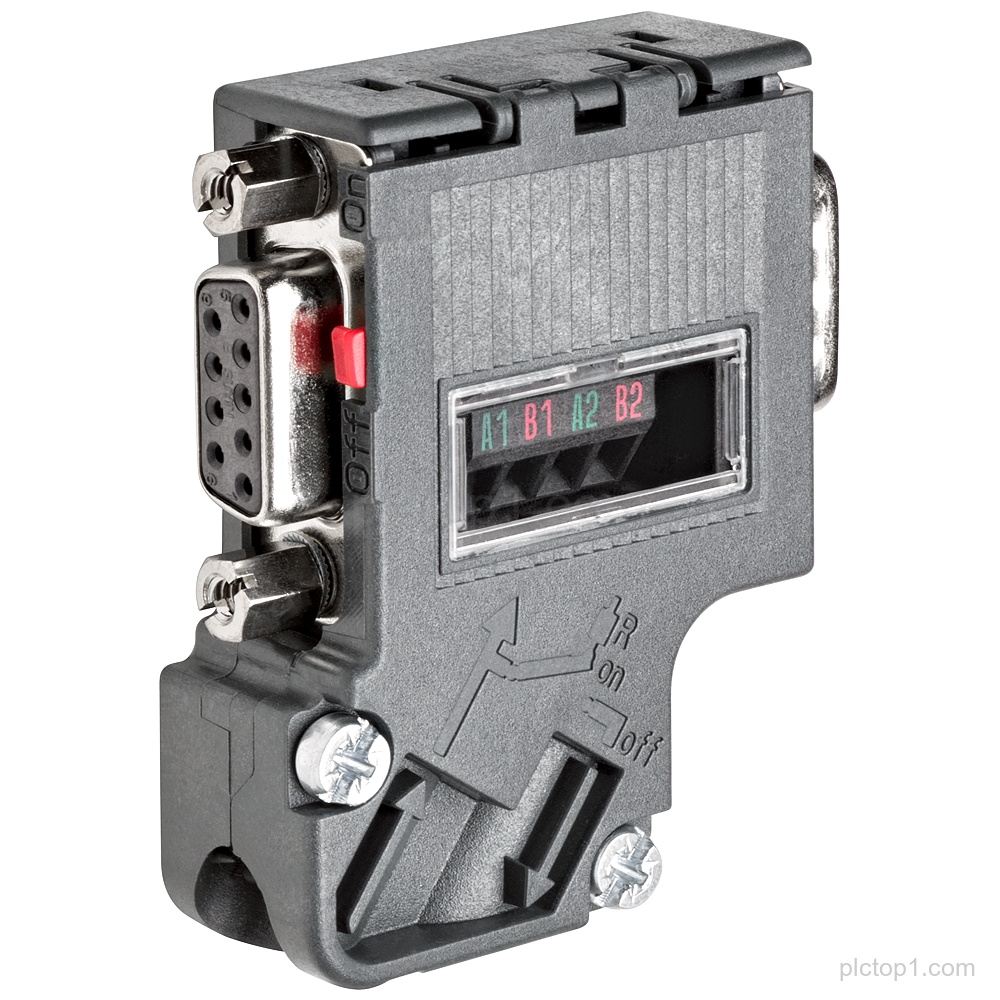

SIPLUS DP PROFIBUS plug 6AG1972-0BB42-7XA0 with R – and conformal coating for PROFIBUS connection up to 12 Mbps, designed with an inclined cable outlet and a PG socket.
Detailed Parameters
Product type:SIPLUS DP PROFIBUS plug
Conformal coating:yes
Operating temperature:-40…+70 °C
PROFIBUS connection:up to 12 Mbps
Cable outlet:inclined
Terminating resistor:with isolating function
PG socket:yes
Cable outlet design reference:inclined based on 6ES7972-0BB42-0XA0
Engineering Context
The SIPLUS DP PROFIBUS plug 6AG1972-0BB42-7XA0 provides a PROFIBUS connection for signaling up to 12 Mbps.
The plug is equipped with an inclined cable outlet and a terminating resistor with isolating function.
The conformal coating and -40…+70 °C operating range support use within the specified temperature limits.
FAQ
1. What is the function of the 6AG1972-0BB42-7XA0?
It is a SIPLUS DP PROFIBUS plug for PROFIBUS connections with a terminating resistor with isolating function and an inclined cable outlet.
2. What is the maximum PROFIBUS connection data rate for this plug?
Up to 12 Mbps.
3. Does the plug include a PG socket?
Yes, with PG socket.
4. What temperature range is specified for the plug?
-40…+70 °C.
5. Is the cable outlet inclined?
Yes, with inclined cable outlet.
6. Does it have a terminating resistor?
Yes, terminating resistor with isolating function.
