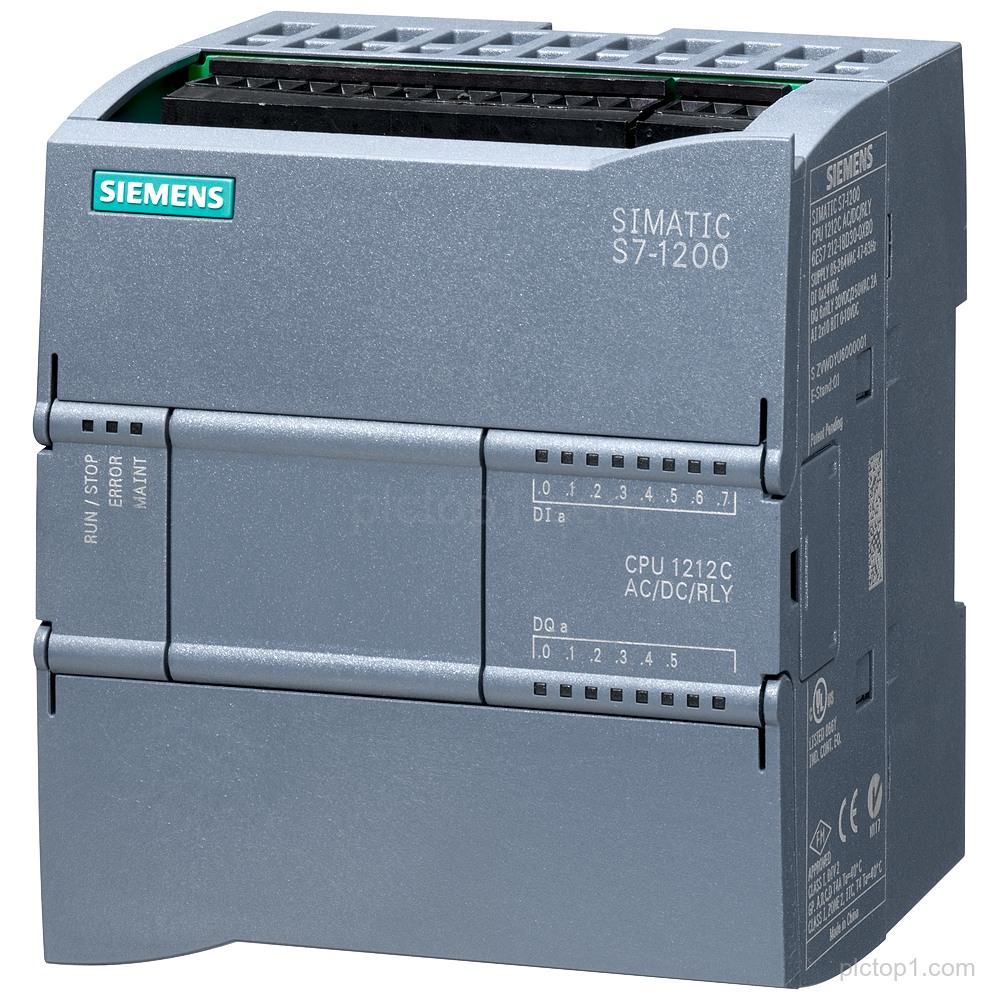

SIPLUS S7-1200 CPU 1212C AC/DC/relay based on 6ES7212-1BE40-0XB0 with conformal coating; part number 6AG1212-1BE40-2XB0.
Detailed Parameters
Product basis:based on 6ES7212-1BE40-0XB0
Conformal coating:with conformal coating
Ambient operating temperature:-40…+70 °C
Start-up temperature:start up -25 °C
CPU type:compact CPU
CPU design:AC/DC/relay
Onboard DI:8 DI 24 V DC
Onboard DQ:6 DQ relay 2 A
Onboard AI:2 AI 0-10 V DC
Power supply:85-264 V AC at 47-63 Hz
Program/data memory:75 KB
Engineering Context
SIPLUS S7-1200 CPU 1212C is a compact AC/DC/relay-based controller with onboard digital and analog I/O.
The CPU provides 8 DI (24 V DC) and 6 DQ relay outputs (2 A) for signal board operation as specified.
The conformal coating and listed temperature limits define the intended environmental robustness for system operation within -40…+70 °C.
FAQ
1. What CPU family and designation does 6AG1212-1BE40-2XB0 belong to?
6AG1212-1BE40-2XB0 is a SIPLUS S7-1200 CPU 1212C AC/DC/relay.
2. What is the basis for the CPU 6AG1212-1BE40-2XB0?
It is based on 6ES7212-1BE40-0XB0.
3. What onboard I/O does the CPU 6AG1212-1BE40-2XB0 provide?
Onboard I/O: 8 DI 24 V DC; 6 DQ relay 2 A; 2 AI 0-10 V DC.
4. What power supply range is specified for 6AG1212-1BE40-2XB0?
Power supply: 85-264 V AC at 47-63 Hz.
5. What temperature ranges are specified for operation and start-up?
Ambient operating temperature is -40…+70 °C, and start-up temperature is -25 °C.
6. What memory size is specified for program/data on this CPU?
Program/data memory is 75 KB.
