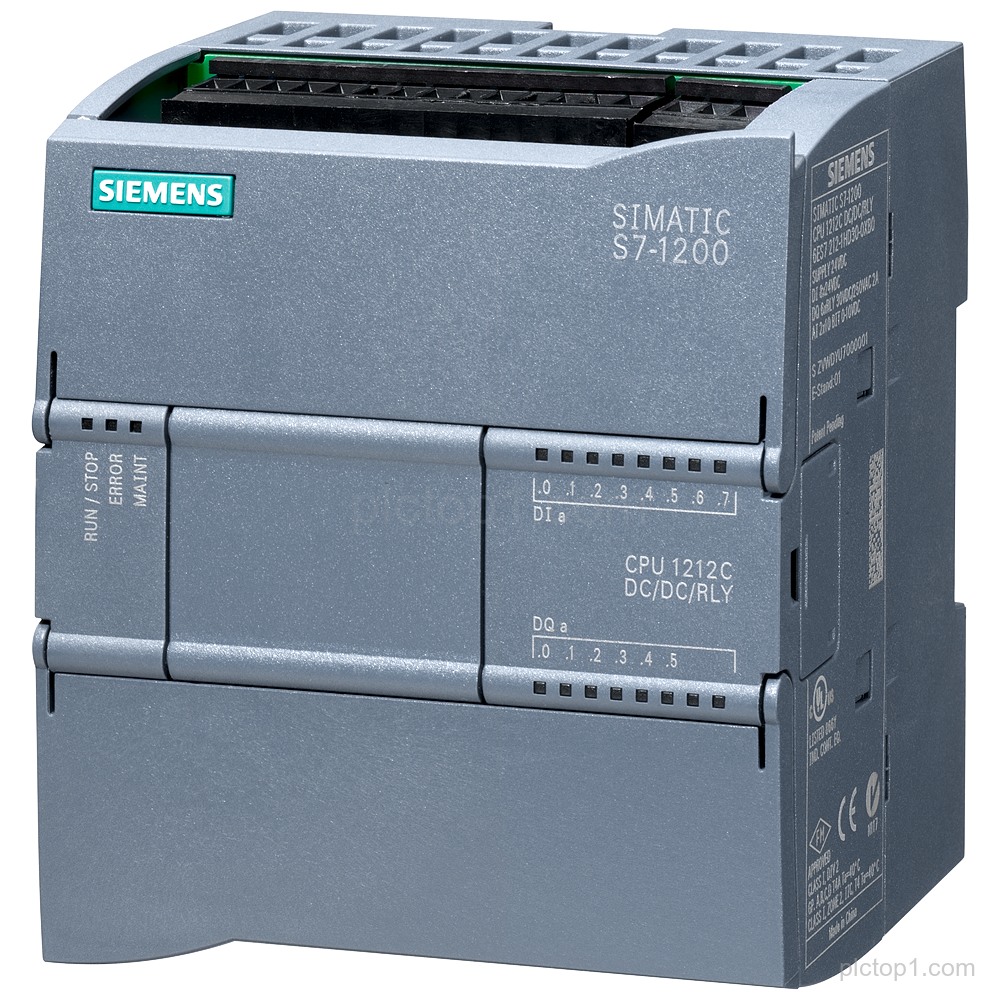

SIPLUS S7-1200 CPU 1212C DC/DC/relay based on 6ES7212-1HE40-0XB0, Part Number 6AG1212-1HE40-2XB0, with conformal coating and specified operating range.
Detailed Parameters
Conformal coating:Yes
Reference based on:6ES7212-1HE40-0XB0
Operating temperature:-40…+70 °C
Startup temperature:-25 °C
Signal board:0
CPU design:compact CPU
CPU type:DC/DC/relay
Onboard DI:8 DI 24 V DC
Onboard DQ:6 DQ relay 2 A
Onboard AI:2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:75 KB
Engineering Context
The SIPLUS S7-1200 CPU 1212C DC/DC/relay provides compact CPU functionality with onboard I/O including 24 V DC digital input, relay digital outputs, and 0-10 V DC analog inputs.
The CPU is based on 6ES7212-1HE40-0XB0 and is supplied with conformal coating as stated in the product information.
The specified power supply is DC 20.4-28.8 V DC and the operating range is -40…+70 °C with startup at -25 °C.
FAQ
1. What is the product family and designation for Part Number 6AG1212-1HE40-2XB0?
SIPLUS S7-1200 CPU 1212C DC/DC/relay.
2. What onboard I/O types and channel counts are provided?
Onboard I/O includes 8 DI 24 V DC, 6 DQ relay 2 A, and 2 AI 0-10 V DC.
3. Which power supply range is specified for this CPU?
DC 20.4-28.8 V DC.
4. What are the temperature conditions stated for operation and startup?
Operating temperature is -40…+70 °C and startup is -25 °C.
5. What is the specified program/data memory size?
75 KB.
6. What base CPU reference is this product based on?
It is based on 6ES7212-1HE40-0XB0.
