Product information

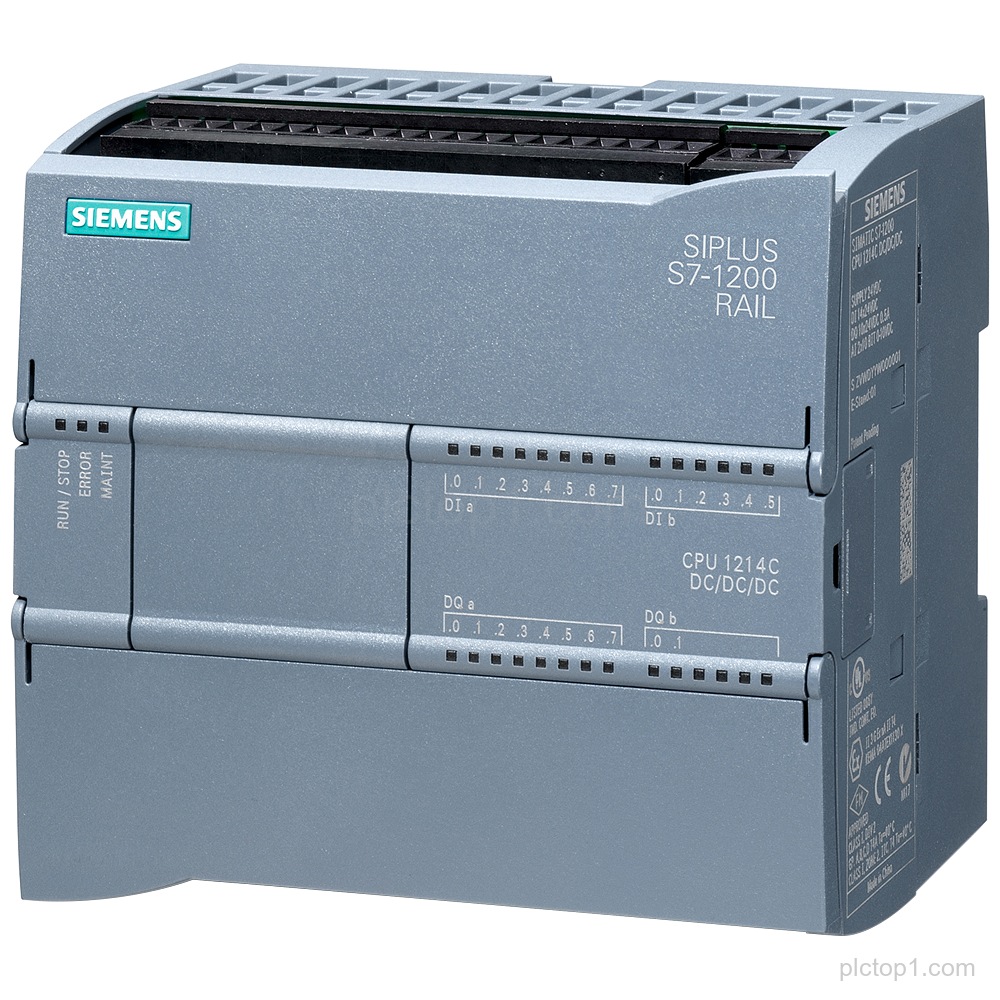

SIPLUS S7-1200 CPU 1214C DC/DC/DC (Part Number: 6AG1214-1AG40-5XB0) provides compact control with conformal coating and onboard I/O.
Detailed Parameters
Based on:6ES7214-1AG40-0XB0
Conformal coating:Yes
Ambient temperature:-40…+60 °C
Startup temperature:-25 °C
CPU type:compact CPU
Power supply:DC 20.4-28.8 V DC
DC/DC/DC:Yes
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DQ:10 DQ 24 V DC
Onboard I/O – AI:2 AI 0-10 V DC
Program/data memory:100 KB
Engineering Context
The 6AG1214-1AG40-5XB0 is a SIPLUS S7-1200 CPU 1214C DC/DC/DC compact CPU based on 6ES7214-1AG40-0XB0.
The CPU provides onboard I/O consisting of 14 DI 24 V DC, 10 DQ 24 V DC, and 2 AI 0-10 V DC.
The configured operating range is specified as -40…+60 °C with startup at -25 °C.
FAQ
1. What CPU family and designation does 6AG1214-1AG40-5XB0 belong to?
6AG1214-1AG40-5XB0 is a SIPLUS S7-1200 CPU 1214C DC/DC/DC.
2. Is conformal coating specified for 6AG1214-1AG40-5XB0?
Yes, conformal coating is specified.
3. What onboard I/O counts and signal types are provided?
Onboard I/O is specified as 14 DI 24 V DC, 10 DQ 24 V DC, and 2 AI 0-10 V DC.
4. What power supply range is specified for 6AG1214-1AG40-5XB0?
The power supply is specified as DC 20.4-28.8 V DC.
5. What program/data memory is specified?
Program/data memory is specified as 100 KB.
6. What temperature range and startup temperature are specified?
Ambient temperature is specified as -40…+60 °C with start up -25 °C.
