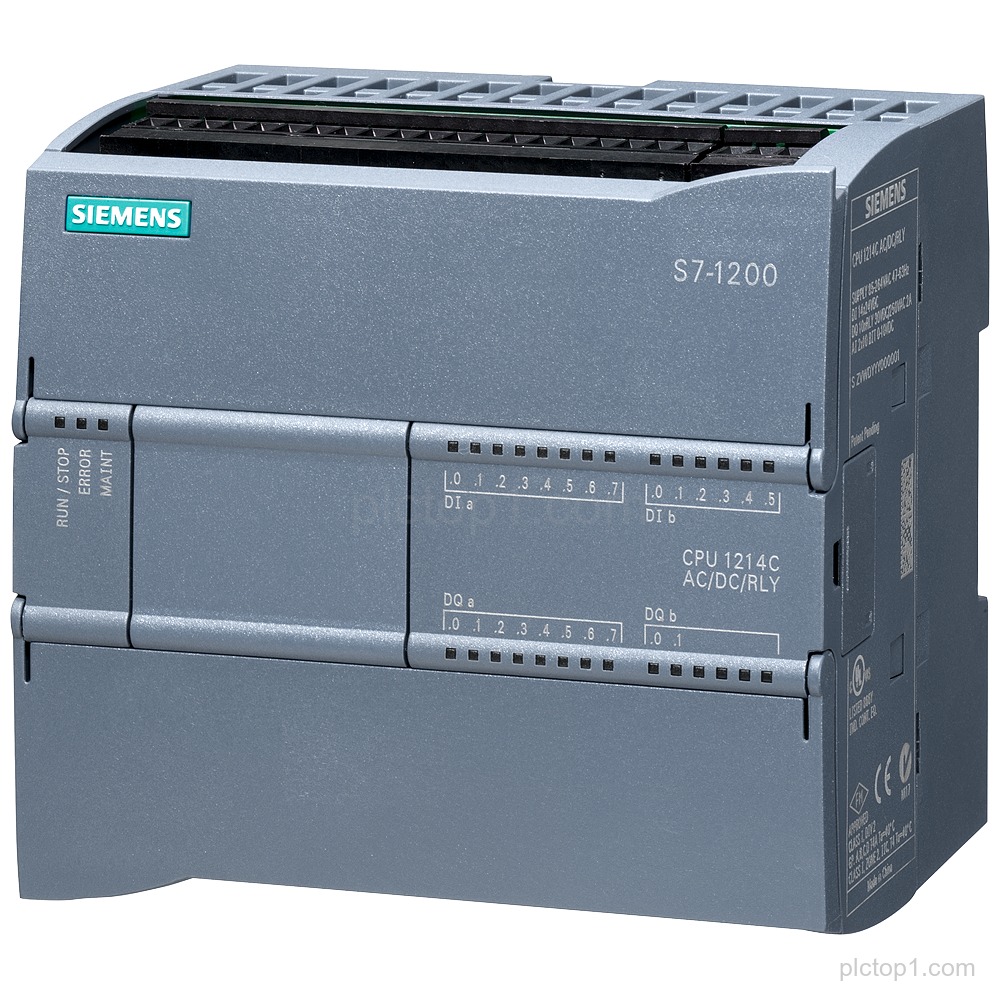

SIPLUS S7-1200 CPU 1214C with part number 6AG1214-1BG40-5XB0 provides AC/DC/relay-based control with onboard I/O and conformal coating.
Detailed Parameters
CPU designation:CPU 1214C
Base reference:based on 6ES7214-1BG40-0XB0
Conformal coating:with conformal coating
Ambient temperature range:-40…+60 °C
Start-up temperature:start up -25 °C
CPU type:compact CPU
Power supply:AC 85-264 V AC @ 47-63 Hz
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DQ:10 DQ relay 2 A
Onboard I/O – AI:2 AI 0-10 V DC
Program/data memory:100 KB
Engineering Context
The SIPLUS S7-1200 CPU 1214C (part number 6AG1214-1BG40-5XB0) is based on 6ES7214-1BG40-0XB0 and configured as an AC/DC/relay compact CPU.
The onboard I/O includes 14 DI 24 V DC, 10 DQ relay 2 A, and 2 AI 0-10 V DC for signal processing within the CPU.
The specified operating range is -40…+60 °C with a start-up temperature of -25 °C for conformal-coated operation.
FAQ
1. What CPU family and designation does 6AG1214-1BG40-5XB0 belong to?
6AG1214-1BG40-5XB0 is a SIPLUS S7-1200 CPU with the designation CPU 1214C.
2. Is 6AG1214-1BG40-5XB0 an AC/DC/relay CPU?
Yes, it is specified as an AC/DC/relay compact CPU.
3. What onboard I/O channels are included?
The onboard I/O includes 14 DI 24 V DC, 10 DQ relay 2 A, and 2 AI 0-10 V DC.
4. What is the power supply range for 6AG1214-1BG40-5XB0?
AC 85-264 V AC @ 47-63 Hz.
5. What operating and start-up temperatures are specified?
Ambient temperature range is -40…+60 °C and start up temperature is -25 °C.
6. How much program/data memory is specified for this CPU?
Program/data memory is 100 KB.
