Product information

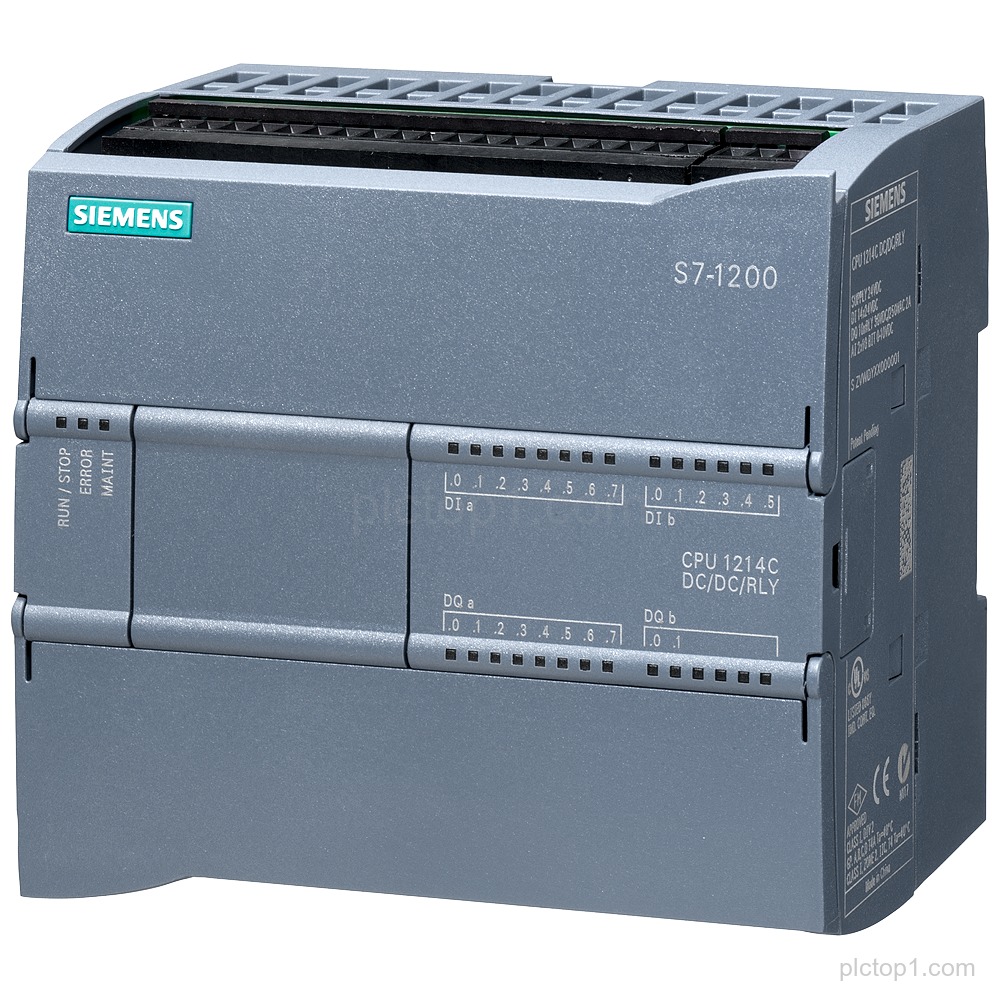

SIPLUS S7-1200 CPU 1214C DC/DC/relay (Part number: 6AG1214-1HG40-5XB0) based on 6ES7214-1HG40-0XB0, with conformal coating and onboard I/O configured as 14 DI 24 V DC, 10 DQ relay 2 A, and 2 AI 0-10 V DC.
Detailed Parameters
Product family:SIPLUS S7-1200
CPU type/designation:CPU 1214C DC/DC/relay
Conformal coating:with conformal coating
Operating temperature:-40…+60 °C
Start-up temperature:start up -25 °C
Compact CPU:compact CPU
Onboard DI:14 DI 24 V DC
Onboard DQ:10 DQ relay 2 A
Onboard AI:2 AI 0-10 V DC
Power supply:AC 20.4-28.8 V DC
Program/data memory:100 KB
Based on:6ES7214-1HG40-0XB0
Engineering Context
The SIPLUS S7-1200 CPU 1214C DC/DC/relay provides onboard I/O comprising 14 DI 24 V DC, 10 DQ relay 2 A, and 2 AI 0-10 V DC.
The device is based on 6ES7214-1HG40-0XB0 and is supplied with conformal coating for the specified temperature range.
Program/data memory is specified as 100 KB for control and data handling in the CPU.
FAQ
1. What is the SIPLUS S7-1200 CPU type for part number 6AG1214-1HG40-5XB0?
CPU 1214C DC/DC/relay.
2. Which onboard I/O signals are included?
14 DI 24 V DC; 10 DQ relay 2 A; 2 AI 0-10 V DC.
3. What temperature range is specified for operation and start-up?
Operating temperature -40…+60 °C and start up -25 °C.
4. What is the specified program/data memory size?
100 KB.
